VC Output Circuit
VC Output CircuitDESCRIPTIONThe VC voltage (
5 V) is generated in the ECM. The voltage is used to supply power to the
throttle position sensor, canister pump module, etc.

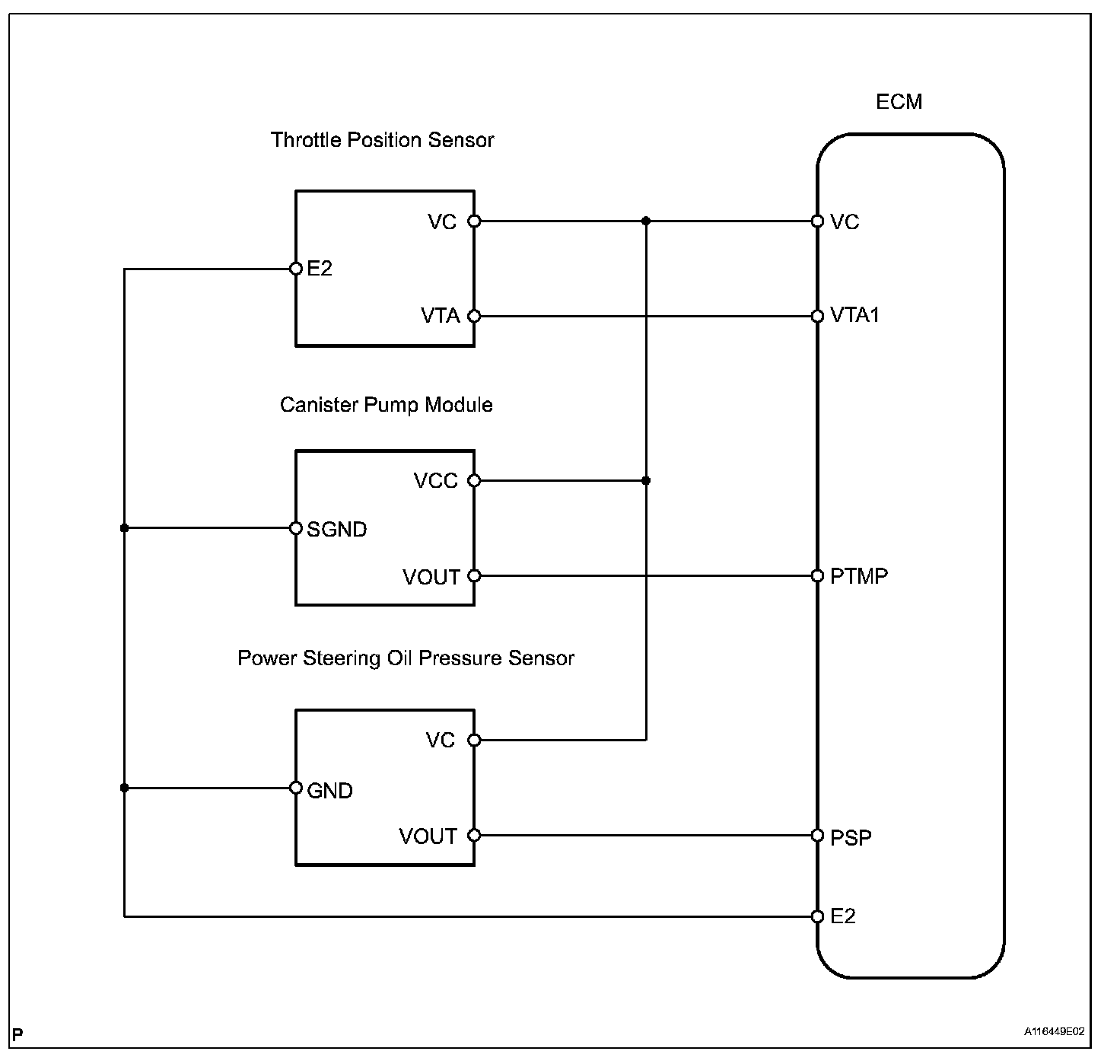

Wiring Diagram:

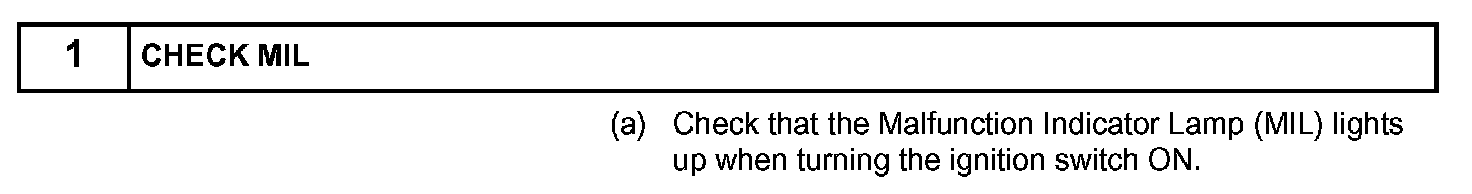

Step 1:

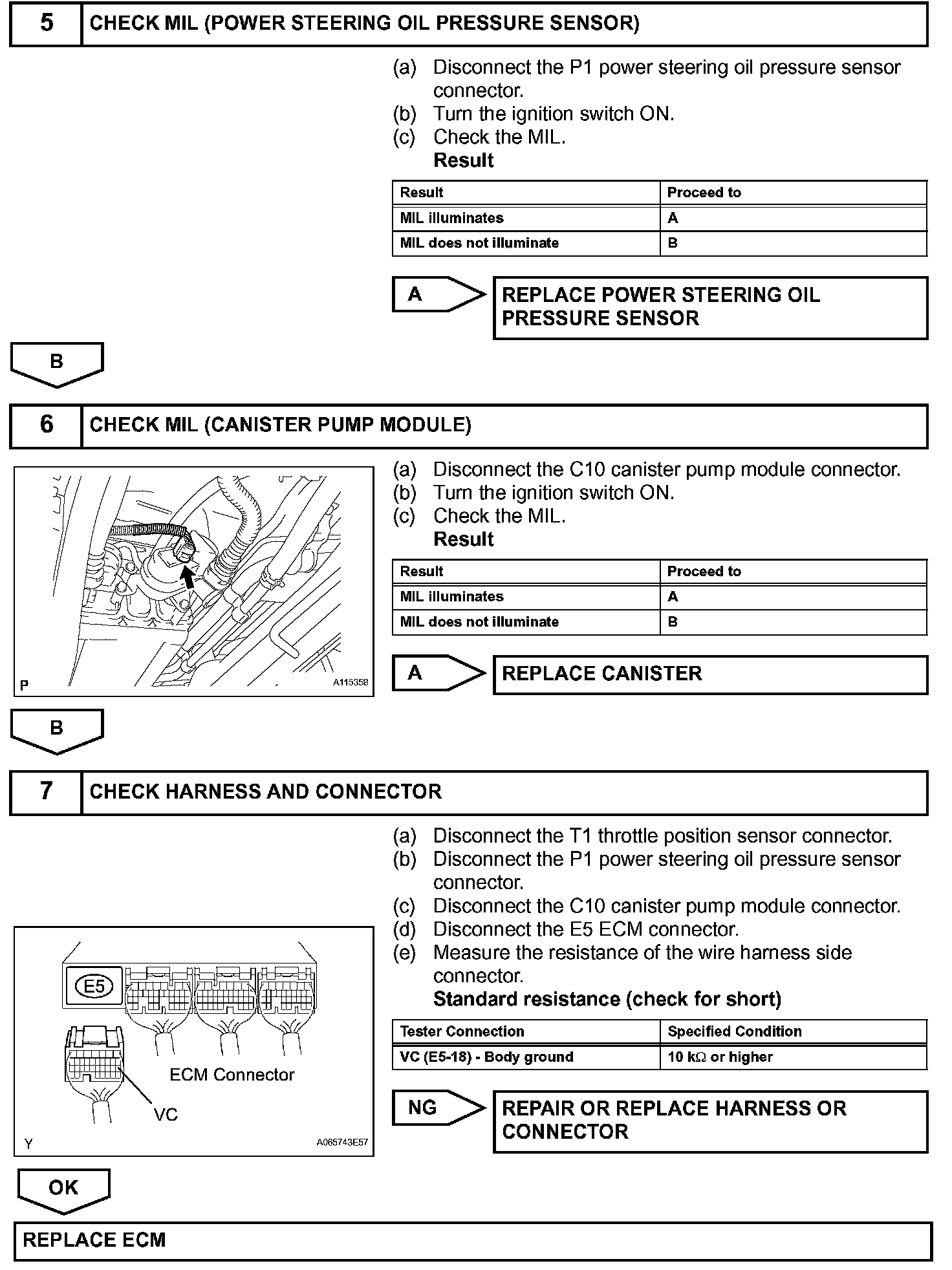

Step 1(Continued)-4:
Step 5-7:

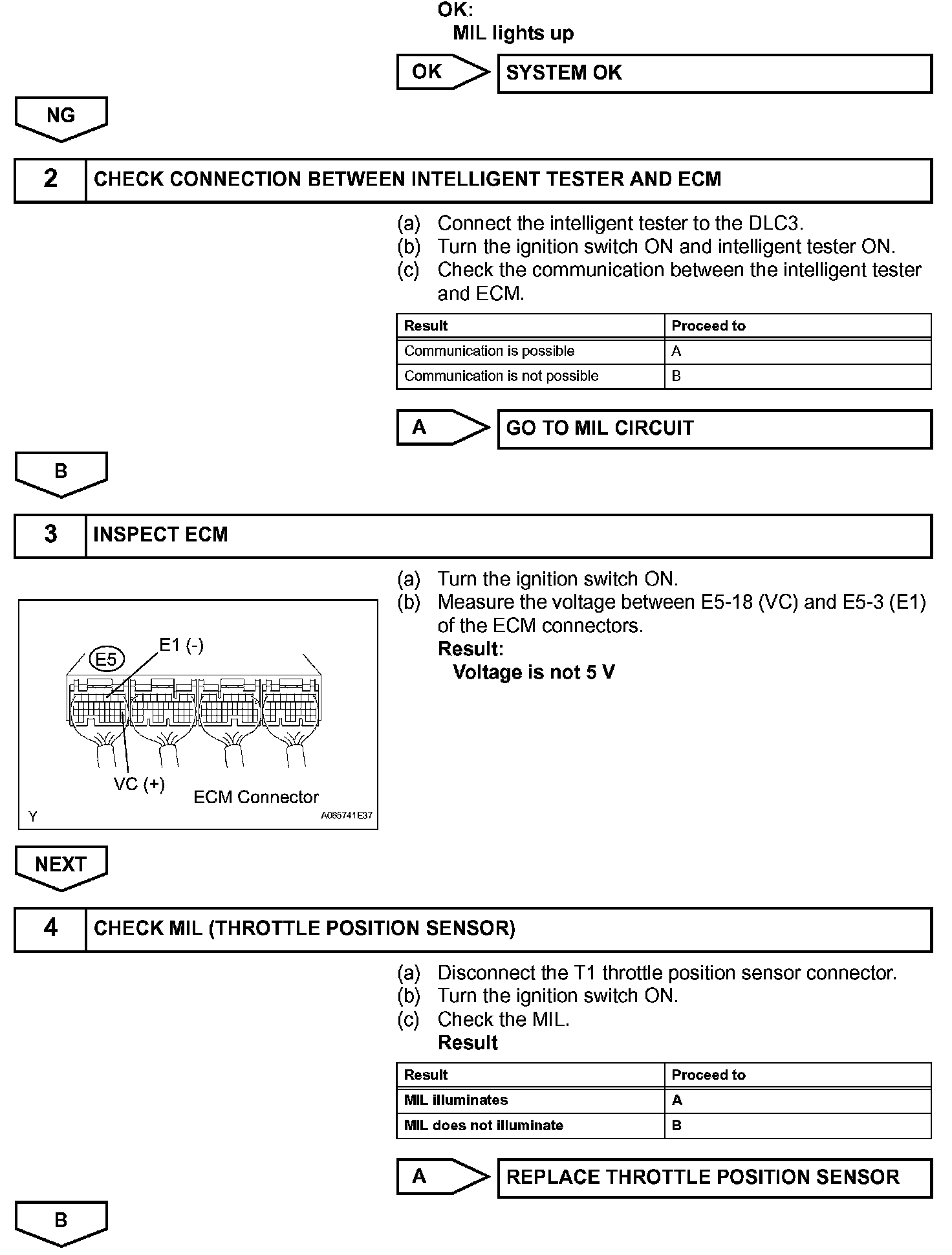

INSPECTION PROCEDURE
