Power Window Motor: Testing and Inspection

POWER WINDOW REGULATOR MOTOR

INSPECTION

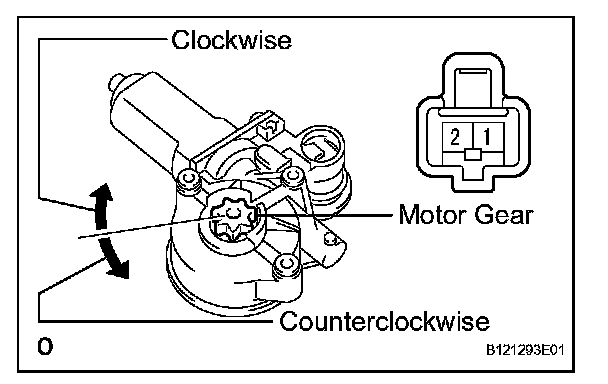

1. INSPECT POWER WINDOW REGULATOR MOTOR ASSEMBLY (FRONT LH)
a. Check operation of the regulator motor.

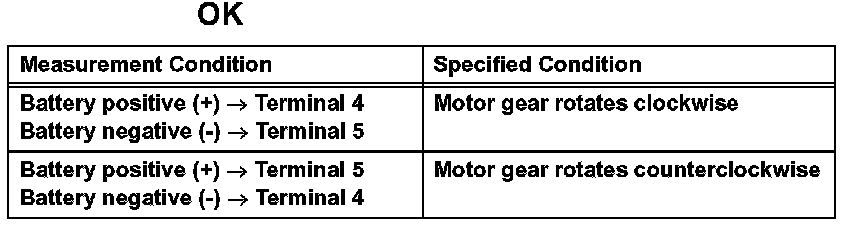

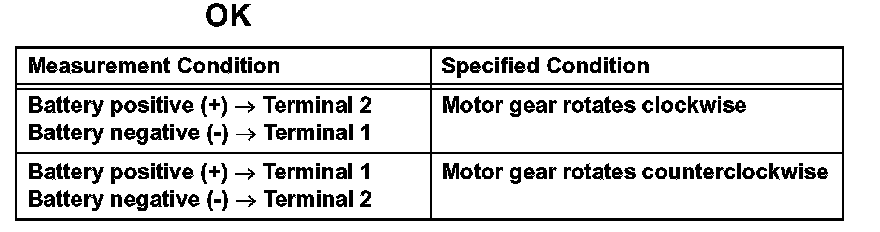

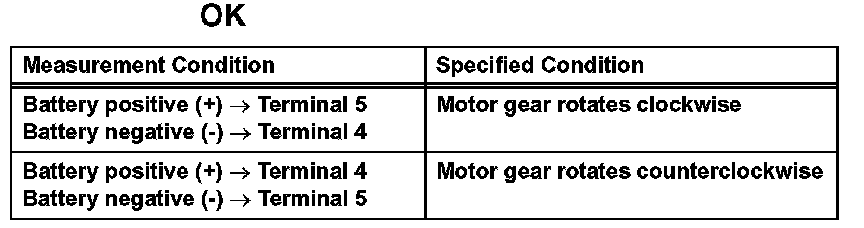

1. Apply battery voltage to the motor terminals.
2. Check that the motor rotates smoothly.
If the result is not as specified, replace the motor assembly.

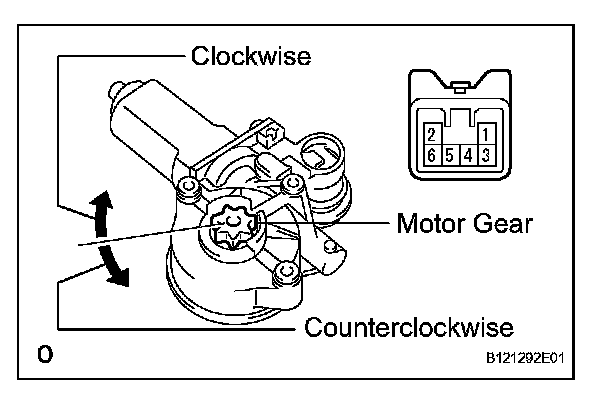

2. INSPECT POWER WINDOW REGULATOR MOTOR ASSEMBLY (FRONT RH)
a. Check operation of the regulator motor.
1. Apply battery voltage to the motor terminals.
2. Check that the motor rotates smoothly.
If the result is not as specified, replace the motor assembly.

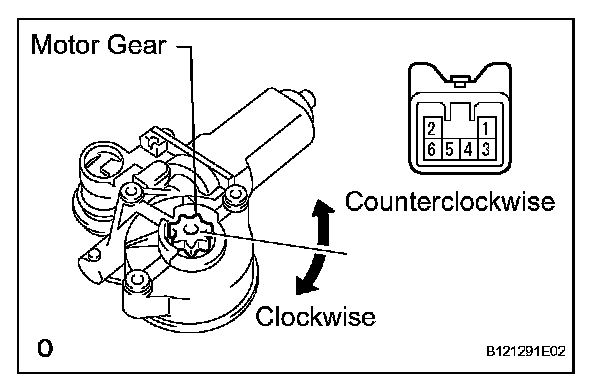

3. INSPECT POWER WINDOW REGULATOR MOTOR ASSEMBLY (REAR LH)
a. Check operation of the regulator motor.
1. Apply battery voltage to the motor terminals.
2. Check that the motor rotates smoothly.
If the result is not as specified, replace the motor assembly.

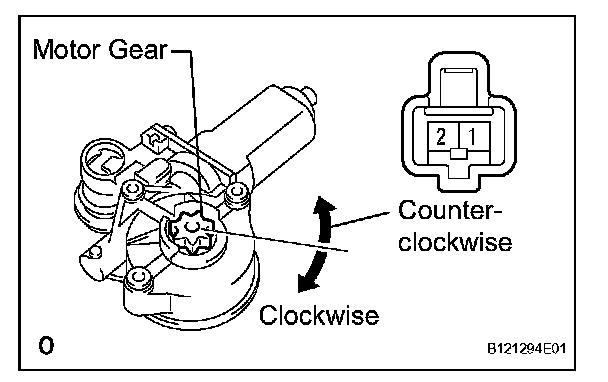

4. INSPECT POWER WINDOW REGULATOR MOTOR ASSEMBLY (REAR RH)
a. Check operation of the regulator motor.
1. Apply battery voltage to the motor terminals.
2. Check that the motor rotates smoothly.
If the result is not as specified, replace the motor assembly.
