Driver Side Power Window Does Not Operate With Power Window Master Switch
Driver Side Power Window does not Operate with Power Window Master SwitchDESCRIPTIONIf the manual UP/DOWN function does not operate, a malfunction may be present in the power window regulator motor, the power window regulator master switch or the wire harness.

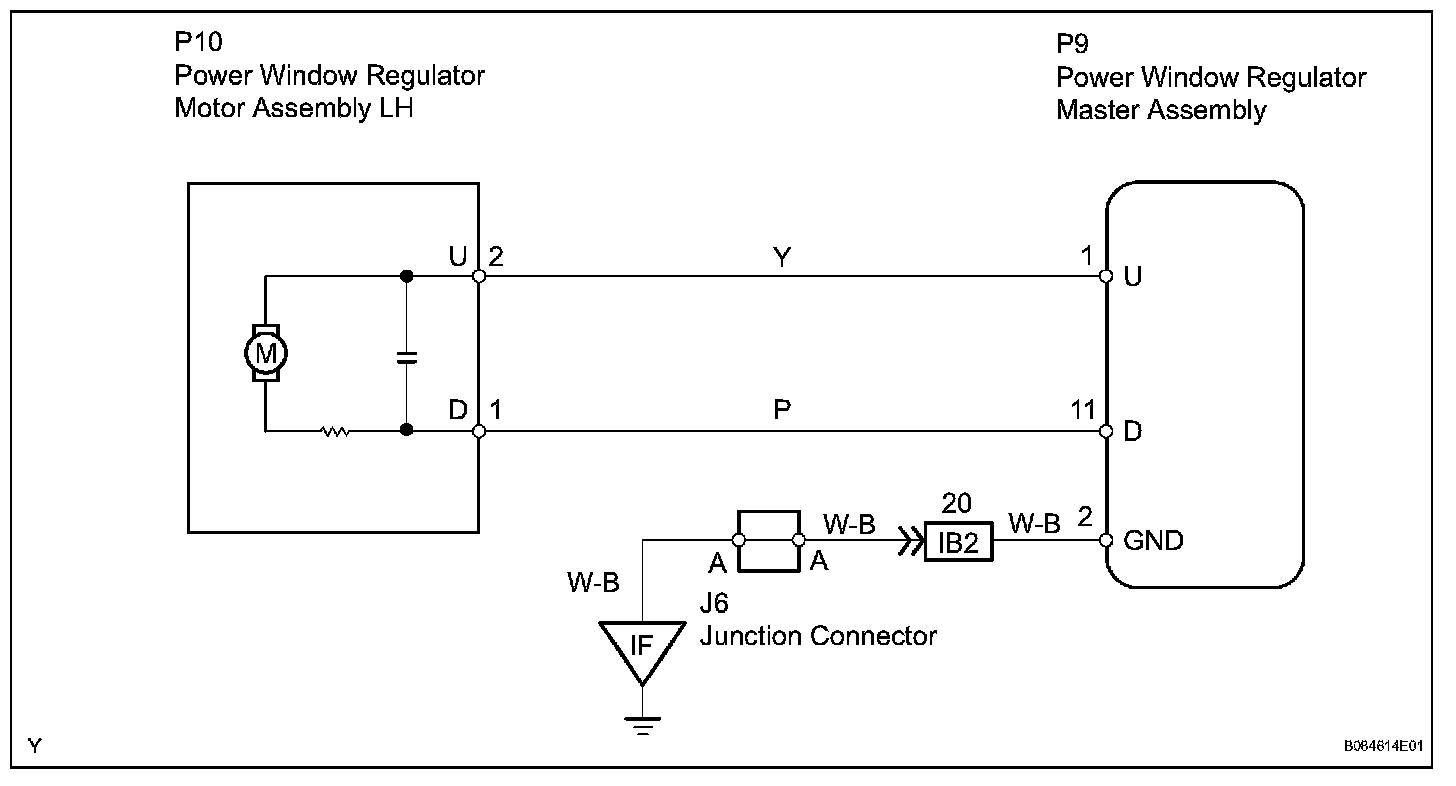

WIRING DIAGRAMWiring Diagram:

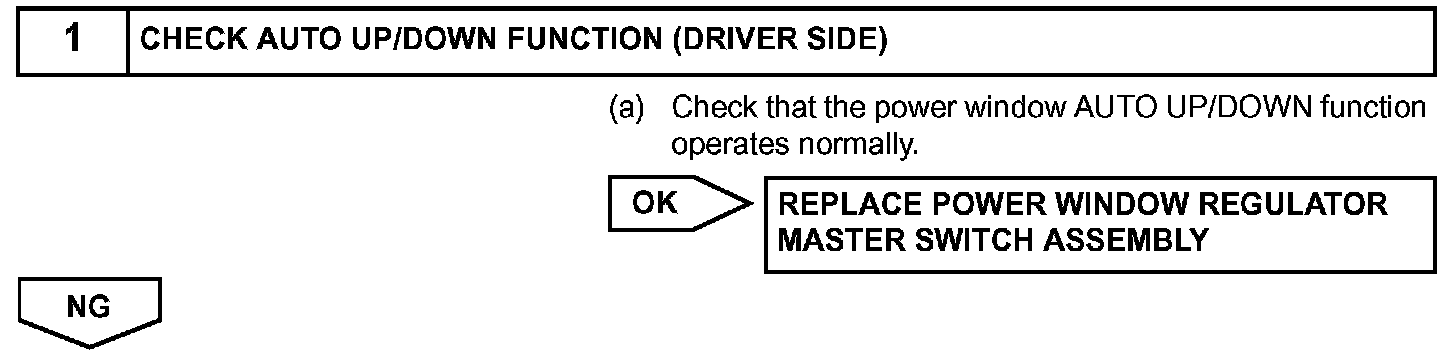

INSPECTION PROCEDUREStep 1:

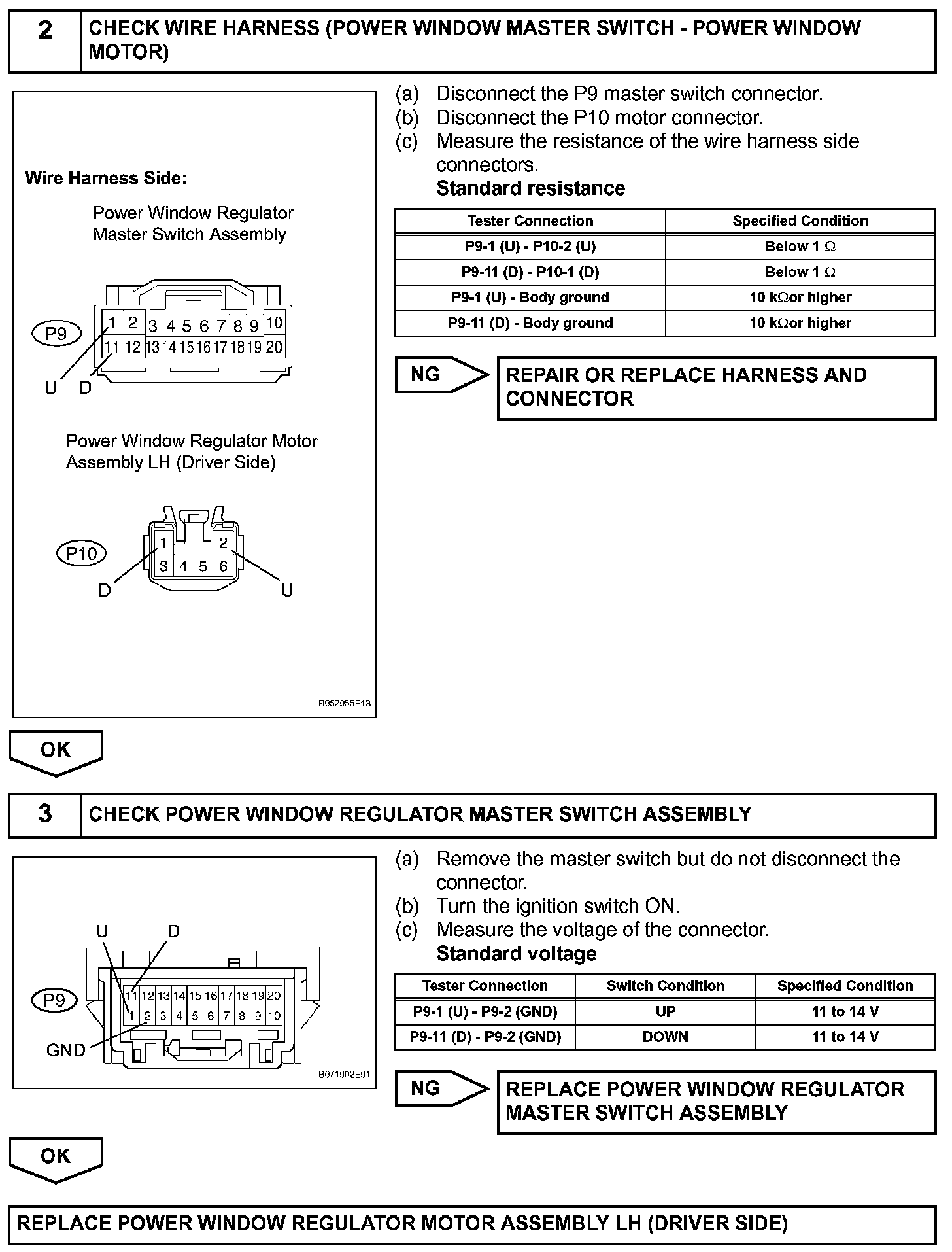

Step 2 - 3:
