Driver Side Power Window Motor Circuit
Driver Side Power Window Motor CircuitDESCRIPTIONThis circuit transmits signals from the power window regulator master switch assembly to the power window regulator motor (Front LH).

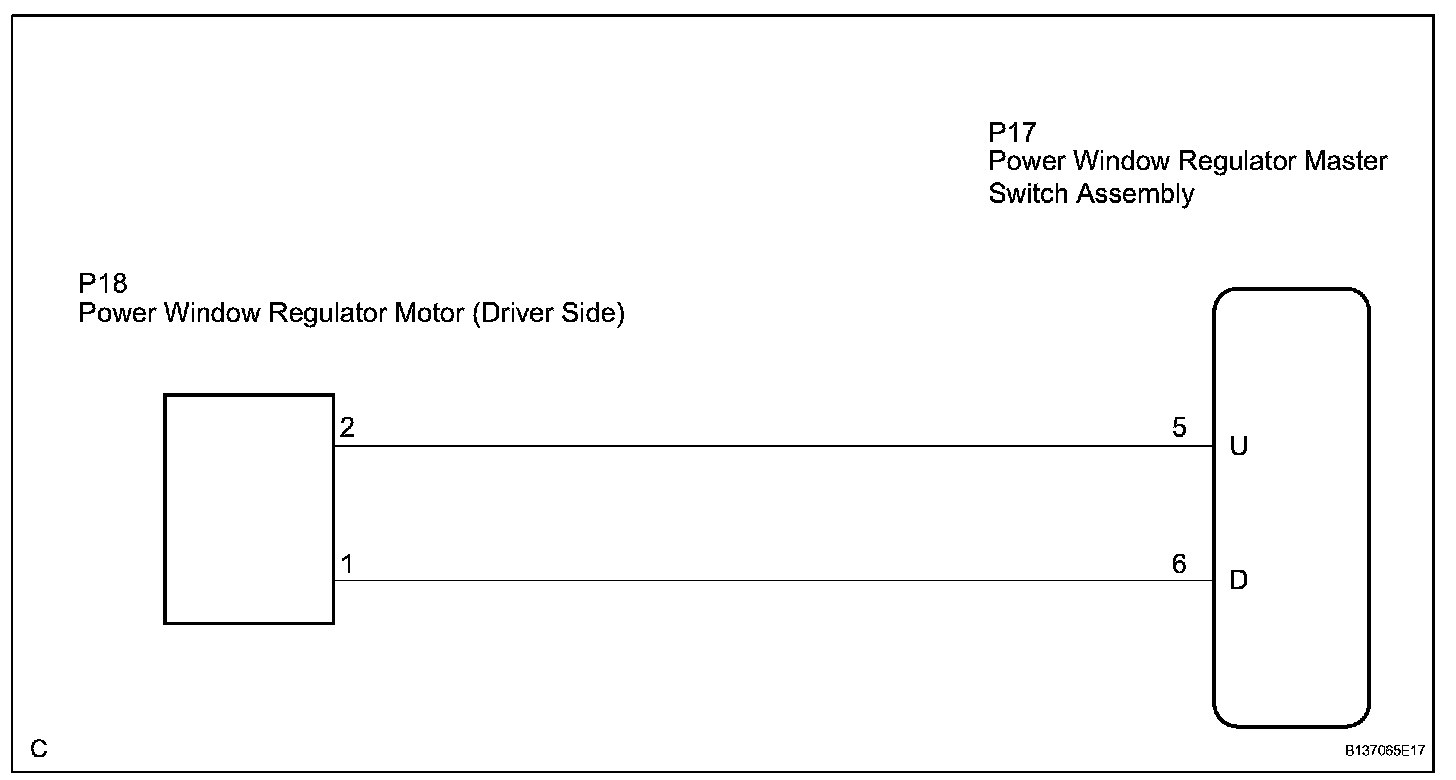

WIRING DIAGRAMWiring Diagram:

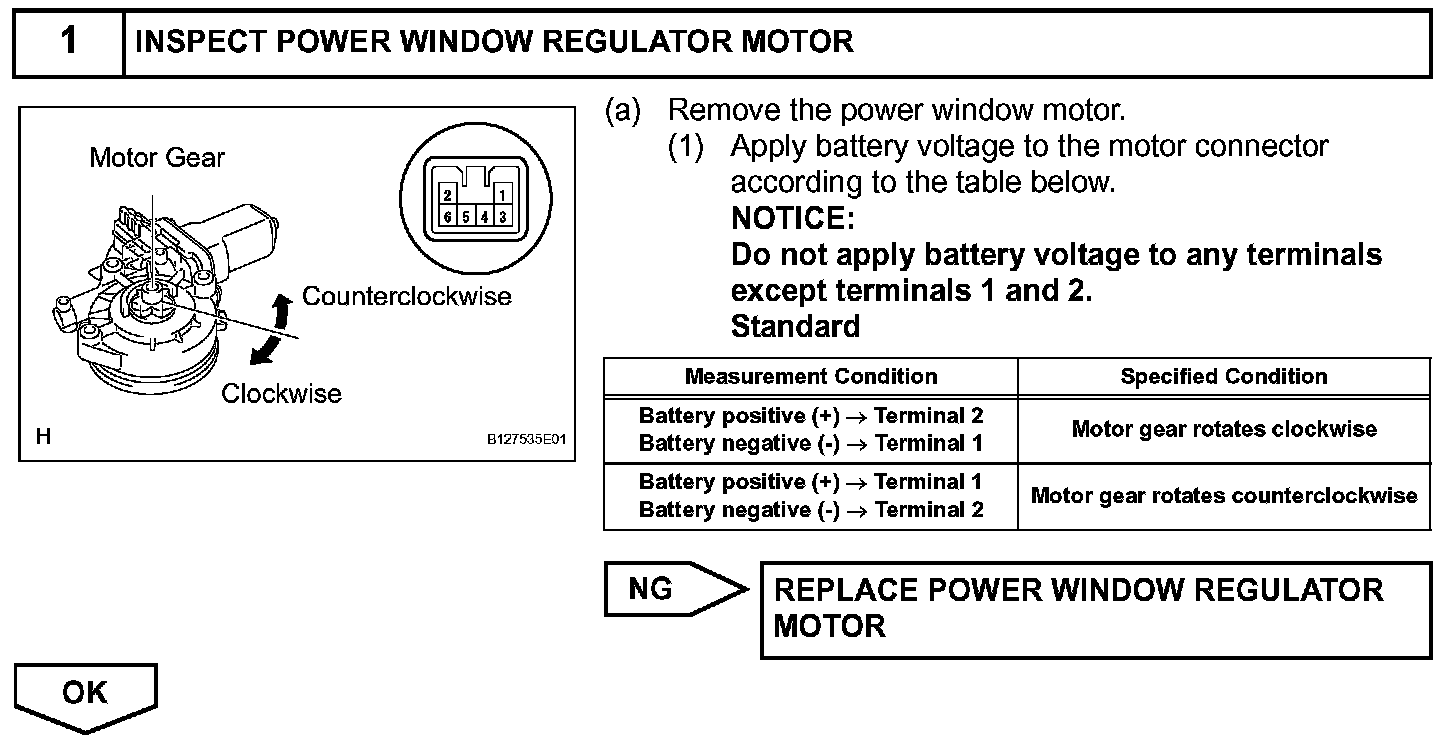

INSPECTION PROCEDUREStep 1:

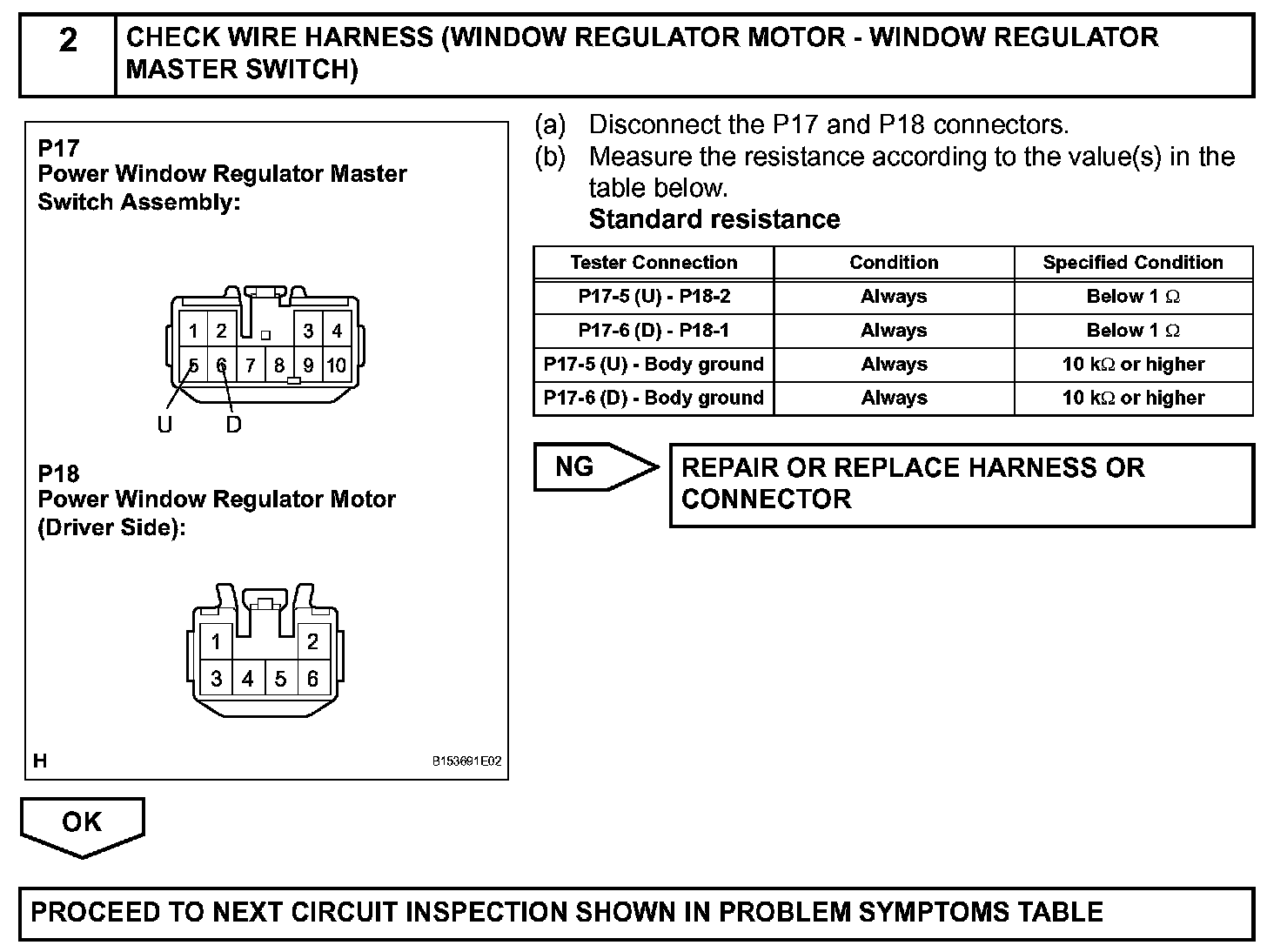

Step 2:
