Reassembly








AIR CONDITIONING: HEATER CONTROL ASSEMBLY: REASSEMBLY

REASSEMBLY

1. INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY

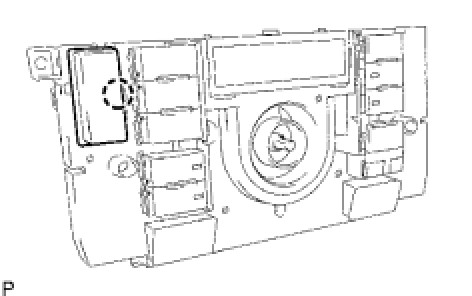

(a) Attach the 2 claws to install the knob.






(b) Attach the 2 claws to install the knob.






(c) Attach the claw to install the knob.
2. INSTALL HEATER CONTROL BASE LOWER






(a) Attach the 4 claws to install the heater control base lower.






(b) Attach the 2 claws to install the heater control base.
(c) Install the 6 screws.
3. INSTALL CENTER CLUSTER MODULE KNOB






(a) Install the center module knob.
