Axle Nut

FRONT AXLE HUB NUT

Using a socket wrench (30 mm), install a new axle hub nut.

Torque: 216 Nm (2203 kgf-cm, 160 ft-lbf)

HINT: Stake the nut after inspecting for looseness and runout in the following steps.

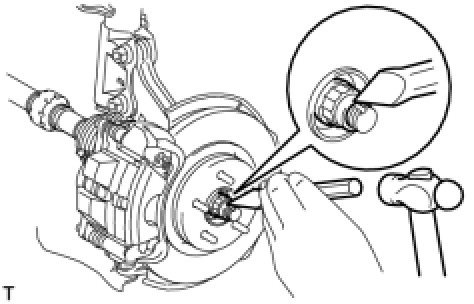

Using a chisel and hammer, stake the axle hub nut.

REAR AXLE HUB

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

Install Rear Axle Hub And Bearing Assembly

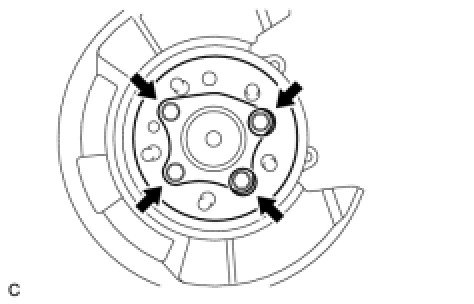

Install the hub and bearing assembly with the 4 bolts.

Torque: 90 Nm (918 kgf-cm, 67 ft-lbf)

NOTE: Do not place the hub and bearing's magnet rotor side so that it is facing downward, and do not allow the magnet rotor side to become damaged or contact foreign matter.
