Water Pump

WATER PUMP ASSEMBLY

Install the water pump assembly with the 5 bolts.

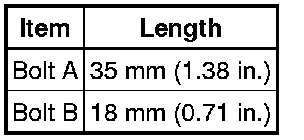

Bolt length:






Torque 26 Nm (260 kgf-cm, 19 ft-lbf (for bolt A))

Torque 24 Nm (240 kgf-cm, 17 ft-lbf (for bolt B))
