Installation





OTHER SYSTEM: POWER OUTLET SOCKET: INSTALLATION

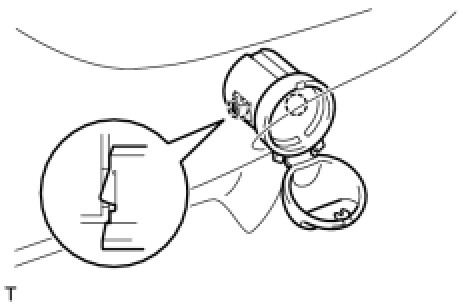

1. INSTALL POWER OUTLET SOCKET COVER





(a) Engage the 2 claws and install a new power outlet socket cover.

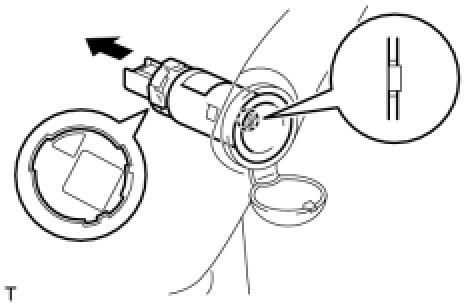

2. INSTALL POWER OUTLET SOCKET ASSEMBLY





(a) Align the protrusion on the power outlet socket with the cutout of the power outlet cover and install the power outlet socket.

(b) Securely engage the claw.

3. INSTALL INSTRUMENT PANEL FINISH LOWER PANEL (for Manual Transaxle) Installation

4. INSTALL INSTRUMENT PANEL FINISH LOWER PANEL (for Automatic Transaxle) Installation

5. INSTALL FRONT NO. 1 CONSOLE BOX INSERT Installation

6. INSTALL FRONT NO. 2 CONSOLE BOX INSERT Installation

7. INSTALL INSTRUMENT CLUSTER FINISH CENTER LOWER PANEL Installation

8. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle) Installation
