1NR-FE ENGINE MECHANICAL: CYLINDER BLOCK: REPLACEMENT
1. REPLACE RING PIN
NOTICE:
It is not necessary to remove the ring pins unless they are being replaced.
(a) Remove the ring pins.
Text in Illustration
(b) Using a plastic hammer, tap in the ring pins.
Standard protrusion:
6.0 to 7.0 mm (0.236 to 0.276 in.)

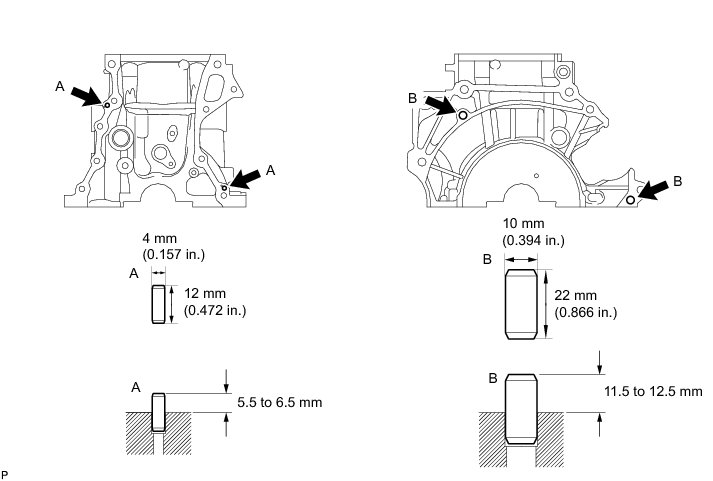

2. REPLACE STRAIGHT PIN
NOTICE:
It is not necessary to remove the straight pins unless they are being replaced.
(a) Remove the straight pins.
(b) Using a plastic hammer, tap in the straight pins.

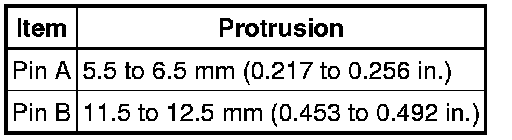

Standard Protrusion:
