NETWORKING: LIN COMMUNICATION SYSTEM: SYSTEM DESCRIPTION

1. LIN COMMUNICATION SYSTEM DESCRIPTION

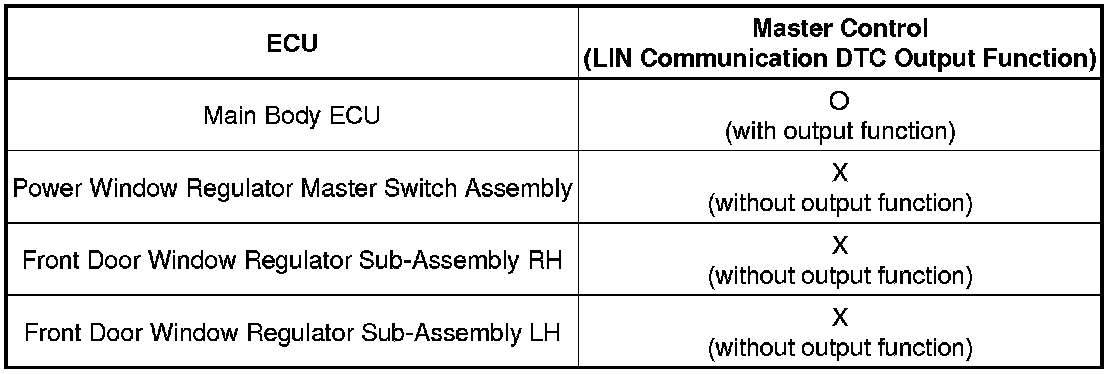

(a) Multiplex communication system using Local Interconnect Network (LIN) communication to control communication between the ECUs of the body system. If communication cannot be performed through LIN because of an open in the communication lines or other reason, the master control ECU of the relevant system will output a DTC. For the communication system and the connected ECUs, refer to the table below.

HINT
Each ECU has a fail-safe function which activates to maintain the minimum performance of the system and protect the system.

(1) Door Bus Lines
