Installation
ENGINE IMMOBILISER: TRANSPONDER KEY AMPLIFIER: INSTALLATION
1. INSTALL TRANSPONDER KEY AMPLIFIER
(a) Engage the 2 claws and install the transponder key amplifier.
(b) Connect the connector.

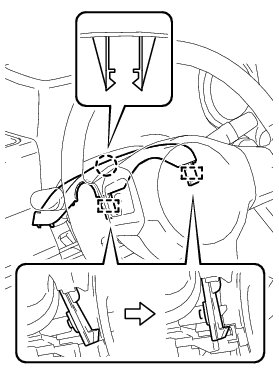

2. INSTALL STEERING COLUMN COVER
NOTICE:
If the steering column cover is installed in the incorrect order, it will not be possible to assemble the steering column cover.
(a) Engage the claw and the 2 pins and install the upper steering column cover.
(b) Engage the 2 claws to install the lower steering column cover.
(c) Engage the 4 claws.
(d) Engage the claw.
HINT
Press the area around the claw to engage it.
