Installation





BRAKE CONTROL: STEERING ANGLE SENSOR: INSTALLATION

CAUTION:
Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing Service Precautions.

1. INSTALL STEERING ANGLE SENSOR

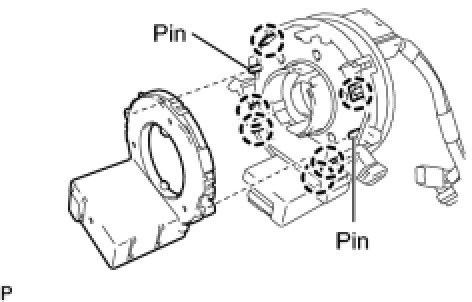

(a) Engage the 6 claws and insert the 2 pins into the holes to install the steering angle sensor onto the spiral cable.

2. INSTALL SPIRAL CABLE Installation

3. INSTALL STEERING COLUMN COVER Installation

4. ADJUST SPIRAL CABLE Installation

5. INSTALL STEERING WHEEL ASSEMBLY Installation

6. INSTALL STEERING PAD Installation

7. TURN FRONT WHEELS FACING STRAIGHT AHEAD

8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)

9. INSPECT SRS WARNING LIGHT

Diagnosis System
