Removal





BRAKE CONTROL: FRONT SPEED SENSOR: REMOVAL

1. REMOVE FRONT WHEEL

2. REMOVE FRONT SIDE MUDGUARD Removal

3. REMOVE FRONT FENDER LINER Removal

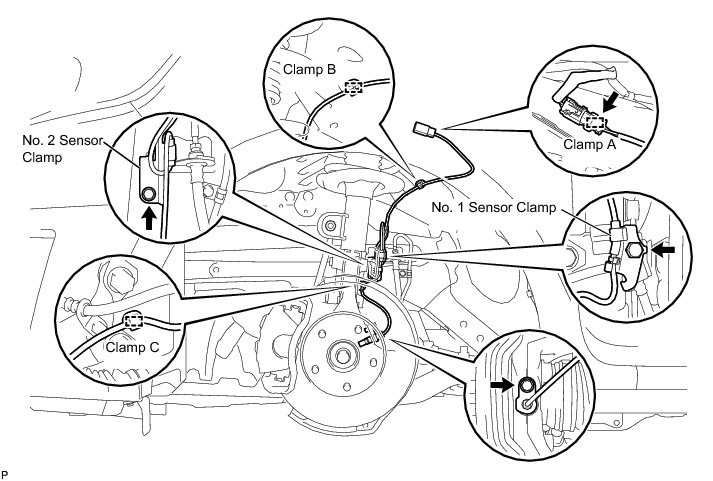

4. REMOVE FRONT SPEED SENSOR





(a) Disengage clamp A from the body.

(b) Disconnect the speed sensor connector.

(c) Disengage clamp B from the body.

(d) Remove the bolt and No. 2 sensor clamp from the body.

(e) Remove the bolt and No. 1 sensor clamp from the shock absorber.

(f) Disengage clamp C from the shock absorber.

(g) Remove the bolt and speed sensor from the steering knuckle.

NOTICE:
* Keep the speed sensor tip and installation portion free of foreign matter.
* Remove the speed sensor without turning it from its original installation angle.
