Installation





METER: LIGHT CONTROL RHEOSTAT: INSTALLATION

1. INSTALL LIGHT CONTROL RHEOSTAT

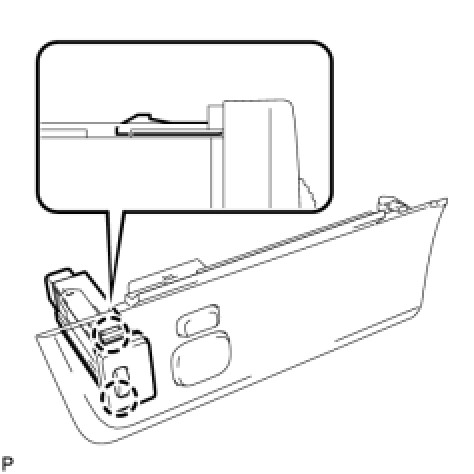

(a) Engage the 2 claws to install the light control rheostat.

2. INSTALL NO. 1 SWITCH HOLE BASE Installation

3. INSTALL UPPER INSTRUMENT PANEL SUB-ASSEMBLY Installation

4. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY Installation

5. INSTALL COMBINATION METER ASSEMBLY Installation

6. INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY Installation

7. INSTALL INSTRUMENT CLUSTER FINISH LOWER PANEL Installation

8. INSTALL INSTRUMENT CLUSTER FINISH CENTER PANEL SUB-ASSEMBLY Installation

9. INSTALL FRONT PILLAR GARNISH LH Installation

10. INSTALL FRONT PILLAR GARNISH RH Installation

11. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH Installation

12. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH Installation

13. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)
