Installation

LIGHTING: REAR COMBINATION LIGHT ASSEMBLY: INSTALLATION

1. INSTALL REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY

(a) Engage the clamp and install the rear combination light socket and wire.

2. INSTALL BACK UP LIGHT BULB





(a) Install the back up light bulb into the light socket.

(b) Turn the back up light socket and bulb, in the direction indicated by the arrow in the illustration, to install them.

3. INSTALL REAR TURN SIGNAL LIGHT BULB





(a) Install the rear turn signal light bulb into the light socket.

(b) Turn the rear turn signal light socket and bulb, in the direction indicated by the arrow in the illustration, to install them.

4. INSTALL TAIL AND STOP LIGHT BULB





(a) Install the rear combination light bulb into the light socket.

(b) Turn the rear combination light socket and bulb, in the direction indicated by the arrow in the illustration, to install them.

5. INSTALL REAR COMBINATION LIGHT LENS GASKET

(a) Install a new rear combination light lens gasket.

6. INSTALL REAR COMBINATION LIGHT ASSEMBLY

(a) Install the rear combination light onto the vehicle.

(b) Connect the connector.

(c) Install the 3 nuts.

Torque : 3.2 Nm (32 kgf-cm, 28 in-lbf)

7. INSTALL REAR COMBINATION LIGHT SERVICE COVER

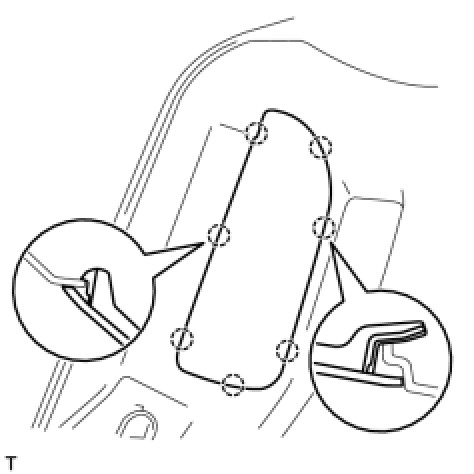

(a) Engage the 7 claws and install the rear combination light service cover.
