Removal

TIRE AND WHEEL: TIRE PRESSURE WARNING ECU: REMOVAL

NOTICE:
Before removing the tire pressure warning ECU, read the registered transmitter ID of all wheels and write them down to use for re-registration of transmitter ID Registration.

1. REMOVE REAR FLOOR CARPET ASSEMBLY Removal

2. REMOVE REAR DECK FLOOR BOX Removal

3. REMOVE DECK FLOOR BOX RH Removal

4. REMOVE DECK FLOOR BOX LH Removal

5. REMOVE REAR SEAT CUSHION ASSEMBLY Removal

6. REMOVE REAR SEATBACK ASSEMBLY LH Removal

7. REMOVE REAR DOOR SCUFF PLATE LH

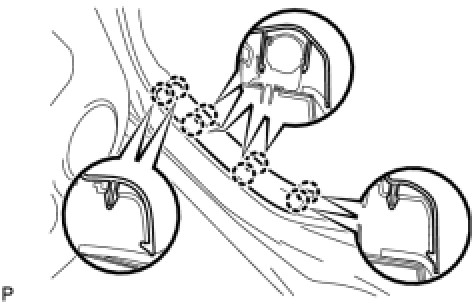

(a) Disengage the 8 claws and remove the rear door scuff plate LH.





8. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH

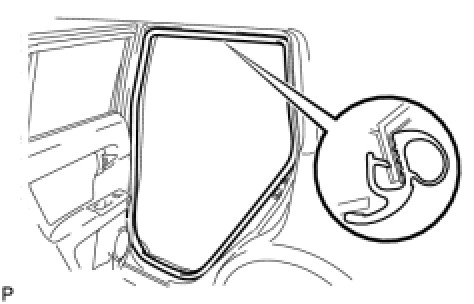

(a) Remove the rear door opening trim weatherstrip LH.





9. REMOVE REAR DECK TRIM COVER Removal

10. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY

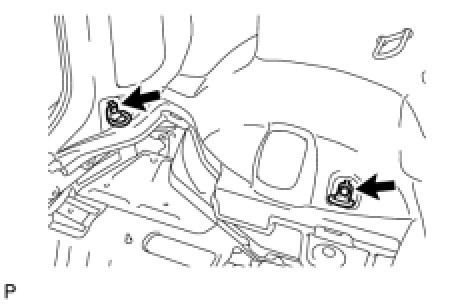

(a) Remove the 2 bolts and the 2 luggage hold belt strikers.





11. REMOVE REAR SEAT BACK HINGE SUB-ASSEMBLY

(a) Remove the bolt, washer and the rear seat back hinge.





12. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH Removal

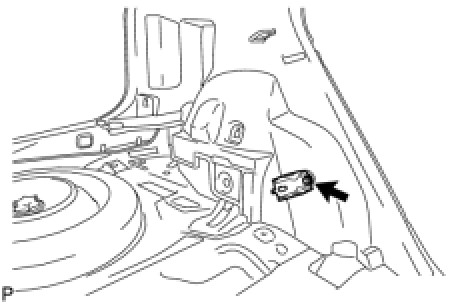

13. REMOVE TIRE PRESSURE WARNING ECU

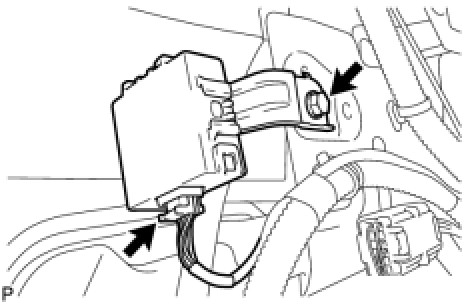

(a) Remove the bolt and remove the tire pressure warning ECU.

(b) Disconnect the tire pressure warning ECU connector.
