Removal
WIPER AND WASHER: WIPER SWITCH: REMOVAL
CAUTION:
Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing Service Precautions.
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait for at least 90 seconds after disconnecting the cable to prevent the airbag from working.
2. POSITION FRONT WHEELS FACING STRAIGHT AHEAD
3. REMOVE STEERING PAD Removal
4. REMOVE STEERING WHEEL ASSEMBLY Removal
5. REMOVE STEERING COLUMN COVER Removal
6. REMOVE WIPER SWITCH
(a) Disconnect the 2 connectors.

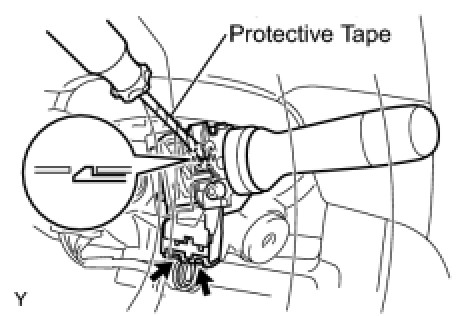

(b) Using a screwdriver with its tip wrapped in protective tape, disengage the claw and remove the wiper switch.
NOTICE:
Do not press the claw too hard, as it may be damaged.
