Removal
DOOR LOCK: UNLOCK WARNING SWITCH: REMOVAL 1.
REMOVE STEERING COLUMN LOWER COVER
Removal 2.
REMOVE STEERING COLUMN UPPER COVER
Removal 3.
REMOVE UNLOCK WARNING SWITCH
(a)
Insert the key into the ignition key cylinder.
(b)
Disconnect the connector.
(c)

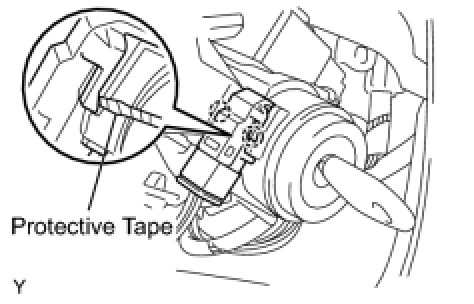

Using a screwdriver with its tip wrapped in protective tape, disengage the 2 claws and remove the unlock warning switch.
