Installation





BRAKE CONTROL: FRONT SPEED SENSOR: INSTALLATION

1. INSTALL FRONT SPEED SENSOR

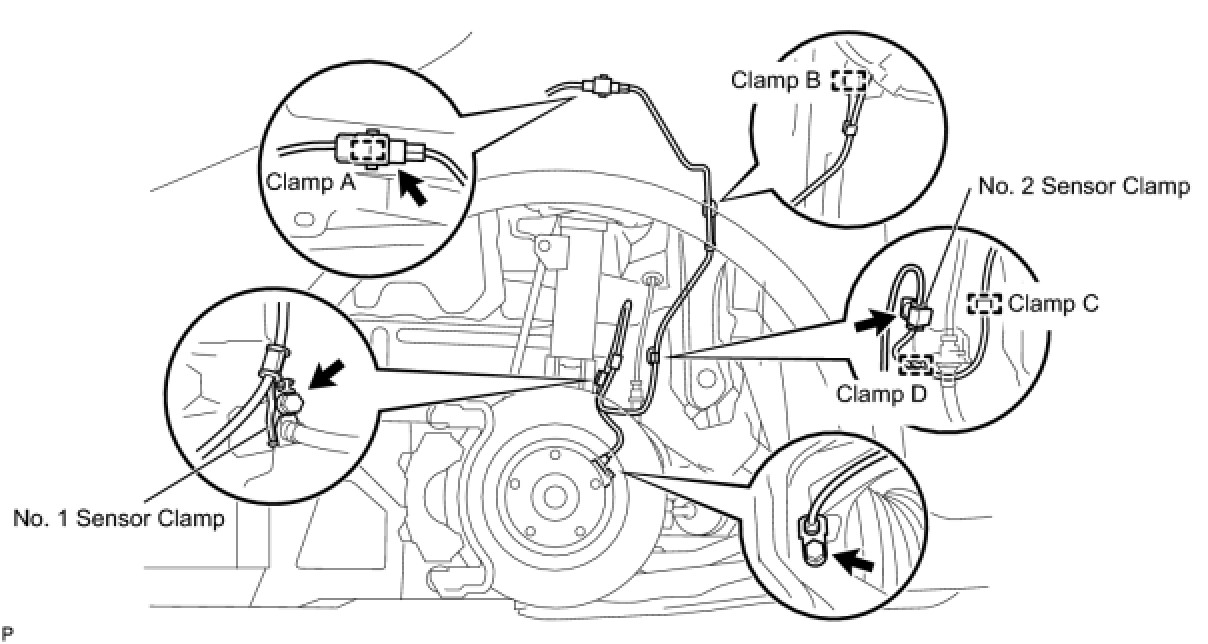

(a) Install the speed sensor onto the steering knuckle with the bolt.

Torque : 8.5 Nm (87 kgf-cm, 75 in-lbf)

NOTICE:
* Check that the speed sensor tip and installation portion are free of foreign matter.
* Install the speed sensor without turning it from its original installation angle.

(b) Install the No. 1 sensor clamp onto the shock absorber with the bolt.

Torque : 29 Nm (300 kgf-cm, 22 ft-lbf)

(c) Install the No. 2 sensor clamp onto the body with the bolt.

Torque : 6.0 Nm (61 kgf-cm, 53 in-lbf)

(d) Engage the clamps D, C and B onto the body.

(e) Connect the speed sensor connector.

(f) Engage the clamp A onto the body.

2. INSTALL FRONT FENDER LINER Installation

3. INSTALL SIDE MUDGUARD Installation

4. INSTALL ROCKER PANEL MOULDING COVER Installation

5. INSTALL FRONT WHEEL

Torque : 103 Nm (1050 kgf-cm, 76 ft-lbf)

6. CHECK VSC SENSOR SIGNAL

Test Mode Procedure
