Removal
BRAKE CONTROL: REAR SPEED SENSOR: REMOVAL 1.
REMOVE REAR WHEEL
2.
REMOVE REAR BRAKE DRUM SUB-ASSEMBLY
Removal 3.
DISCONNECT SPEED SENSOR WIRE
Removal 4.
REMOVE REAR AXLE HUB AND BEARING ASSEMBLY (REAR SPEED SENSOR)
(a)

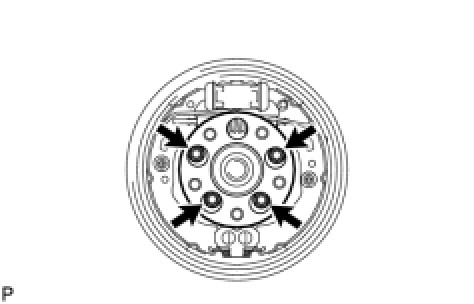

Remove the 4 bolts and remove the rear axle hub and bearing from the axle beam.
NOTICE: Suspend the backing plate with a piece of rope.
