Pinout Values and Diagnostic Parameters
CRUISE CONTROL: CRUISE CONTROL SYSTEM: TERMINALS OF ECM 1.
CHECK ECM
(a)
Disconnect the A21 and C19 ECU connectors.
(b)

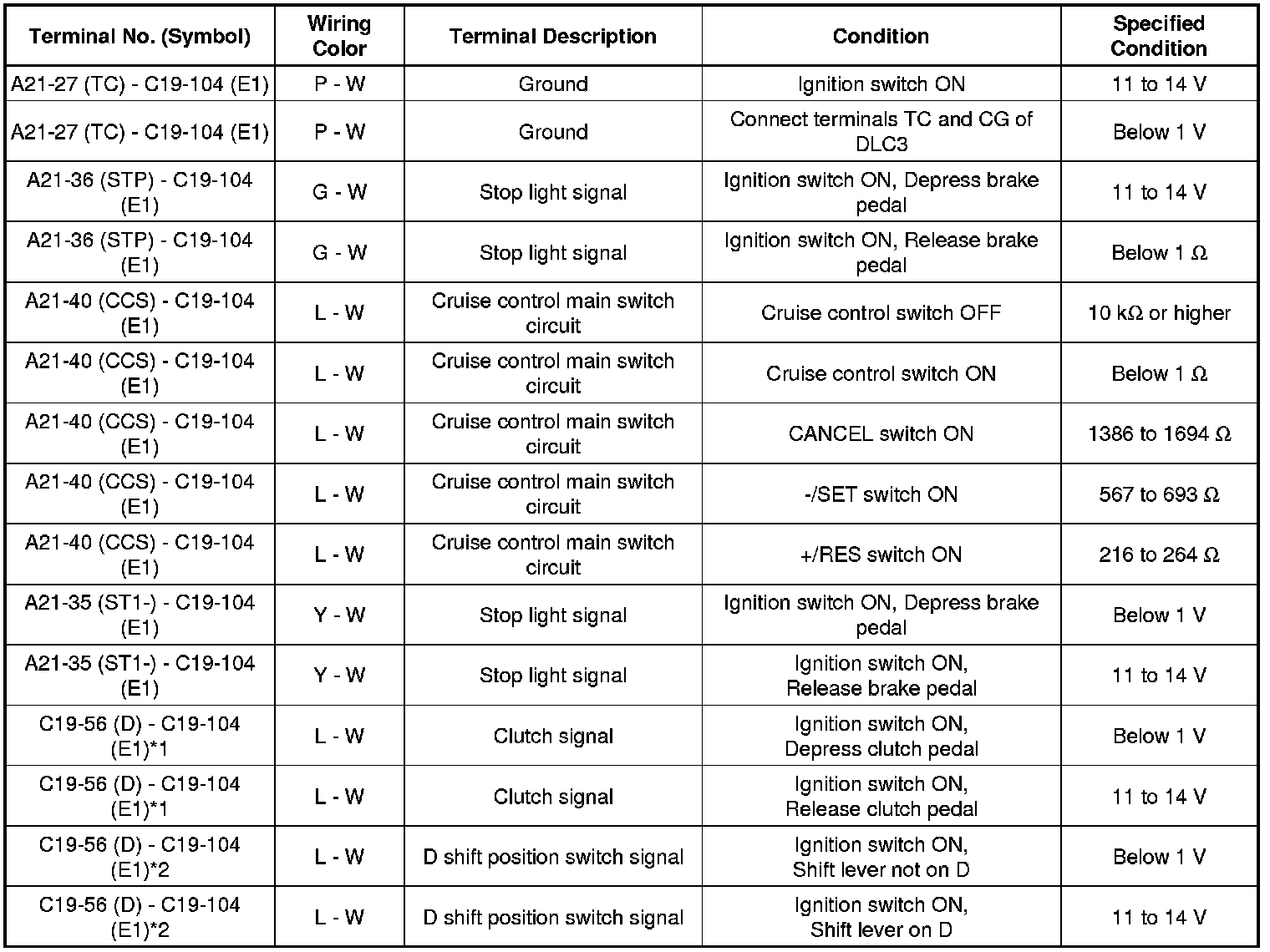

Measure the voltage and resistance according to the value(s) in the table below.
If the result is not as specified, there may be a malfunction on the wire harness side.
HINT * *1: for Manual Transaxle * *2: for Automatic Transaxle
