Evaporator Temperature Sensor / Switch: Testing and Inspection





AIR CONDITIONING: FRONT EVAPORATOR TEMPERATURE SENSOR: INSPECTION

1. INSPECT FRONT EVAPORATOR TEMPERATURE SENSOR

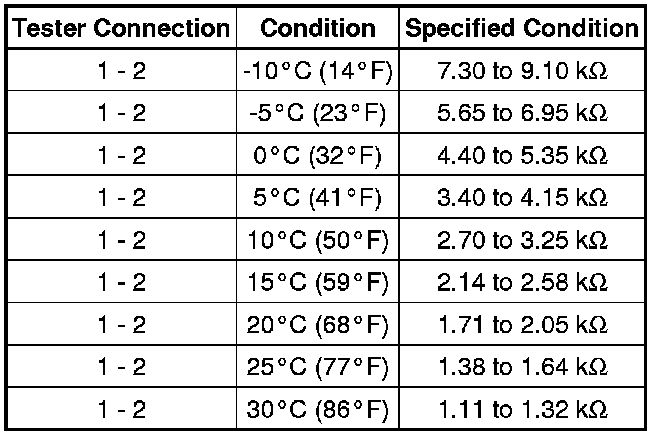

(a) Measure the resistance according to the value(s) in the table below.

Standard resistance:





NOTICE:
* Touching the sensor even slightly may change the resistance value. Hold the sensor connector.
* When measuring the resistance, the temperature of the sensor and the cooler thermistor must be the same.

HINT

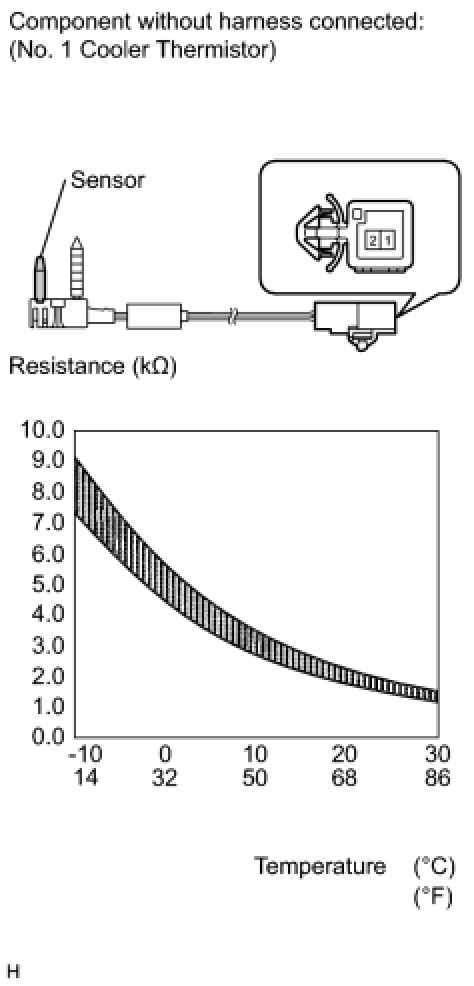

As the temperature increases, the resistance decreases (see the graph).

If the operation is not as specified, replace the evaporator temperature sensor.
