Installation





LIGHTING: STOP LIGHT SWITCH: INSTALLATION

1. INSTALL STOP LIGHT SWITCH





(a) Install the stop light switch into the adjuster until it slightly touches the brake pedal.

NOTICE:
Do not depress the brake pedal.

(1) Make a quarter turn clockwise to install the stop light switch.





NOTICE:
Do not depress the brake pedal.

HINT
The turning torque for installing the stop light switch is as below.

Torque : 1.5 Nm (15 kgf-cm, 13 in-lbf) or less

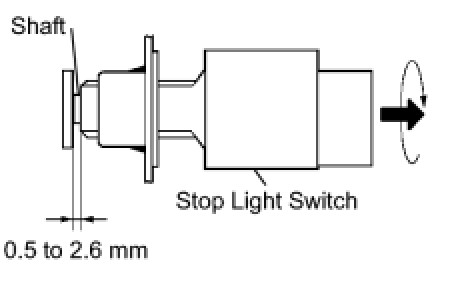

(b) Check the stop light switch clearance.

Stop light switch clearance:

0.5 to 2.6 mm (0.020 to 0.102 in.)

(c) Connect the stop light switch connector to the stop light switch.





2. INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY LH Installation
