Reassembly

LIGHTING: REAR COMBINATION LIGHT ASSEMBLY: REASSEMBLY

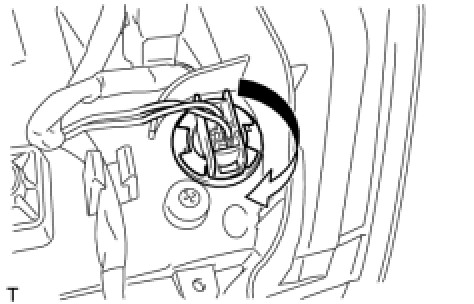

1. INSTALL BACK UP LIGHT BULB

(a) Install the back up light bulb into the light socket.





(b) Turn the back up light socket and bulb, in the direction indicated by the arrow in the illustration, to install them.

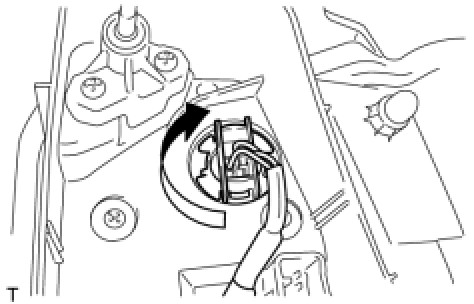

2. INSTALL REAR TURN SIGNAL LIGHT BULB

(a) Install the rear turn signal light bulb into the light socket.





(b) Turn the rear turn signal light socket and bulb, in the direction indicated by the arrow in the illustration, to install them.

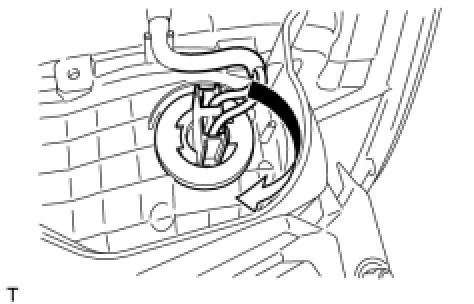

3. INSTALL REAR COMBINATION LIGHT BULB

(a) Install the rear combination light bulb into the light socket.





(b) Turn the rear combination light socket and bulb, in the direction indicated by the arrow in the illustration, to install them.

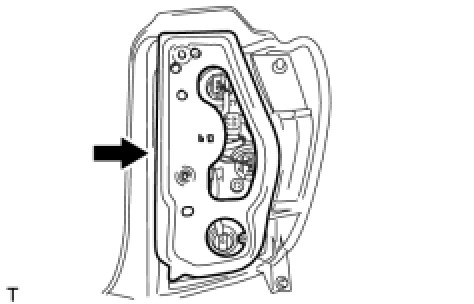

4. INSTALL REAR COMBINATION LIGHT GASKET

(a) Install a new rear combination light gasket.
