Alignment

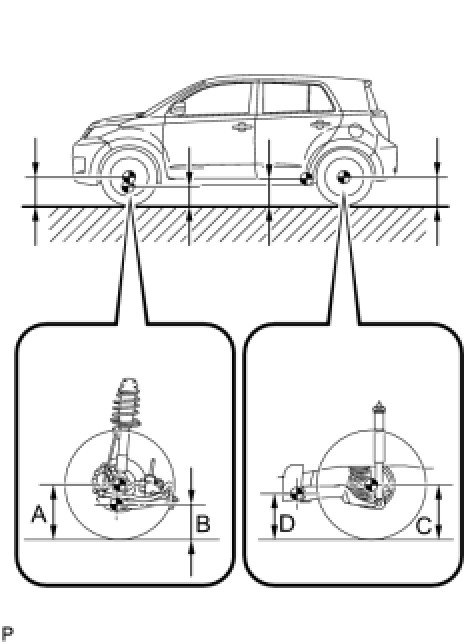

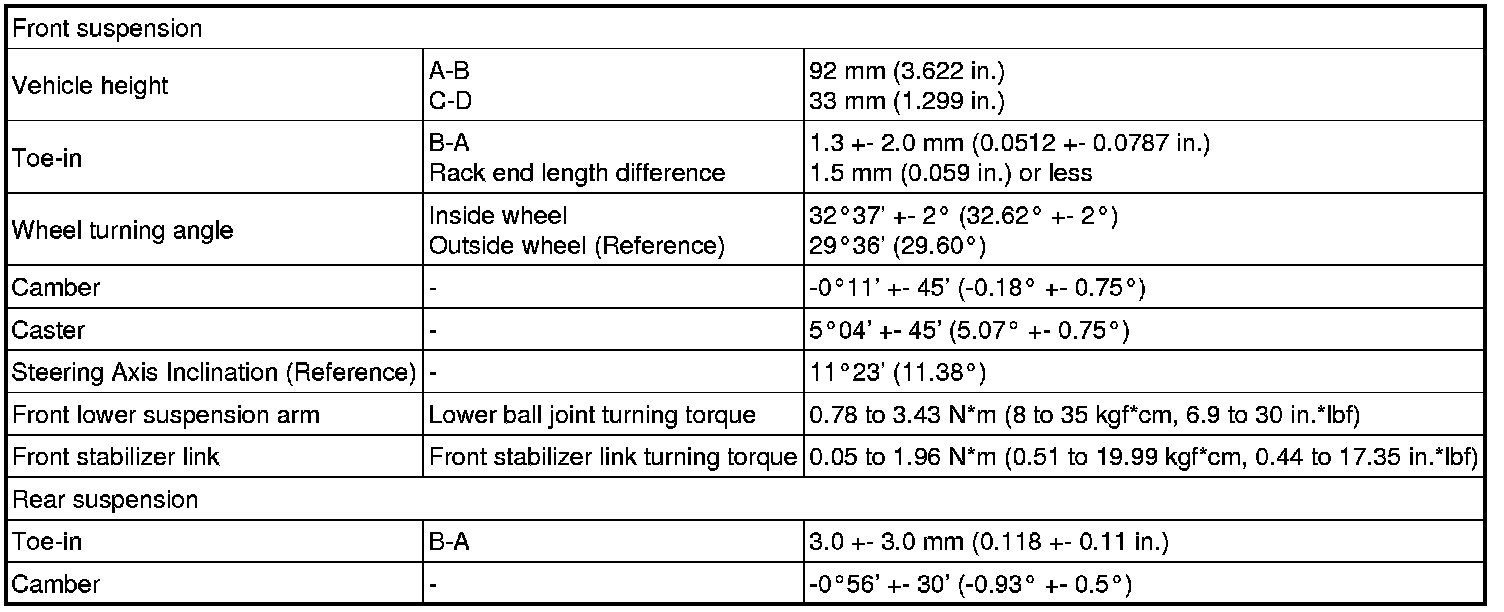

SERVICE SPECIFICATIONS: SUSPENSION: SERVICE DATAVehicle height measuring points:
Measuring points:
A
Ground clearance of front wheel center
B
Ground clearance of front lower arm set front bolt head center
C
Ground clearance of rear wheel center
D
Ground clearance of axle beam set bolt head center
Front - Toe-In:

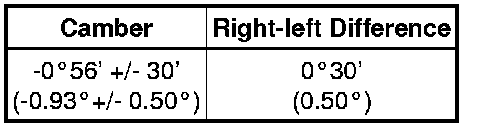

Rear - Camber (Unloaded Vehicle):
Rear - Toe-In:
