Removal
WIPER AND WASHER: WIPER SWITCH: REMOVAL 1.
REMOVE STEERING COLUMN LOWER COVER
Removal 2.
REMOVE STEERING COLUMN UPPER COVER
Removal 3.

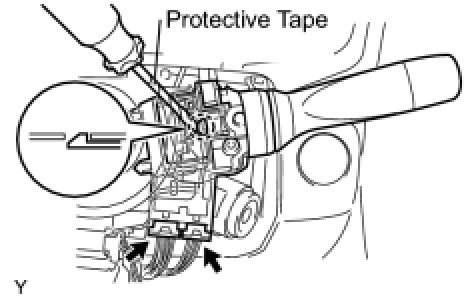

REMOVE
WIPER SWITCH (a)
Disconnect the 2 connectors.
(b)
Using a screwdriver with its tip wrapped in protective tape, disengage the claw and remove the
wiper switch.
NOTICE: Do not press the claw too hard, as it may be damaged.
