Part 1

FA20 ENGINE CONTROL: SFI SYSTEM: P0171, P0172, P1170, P117B; System Too Lean (Bank 1); 2013 MY FR-S [03/2012 -]

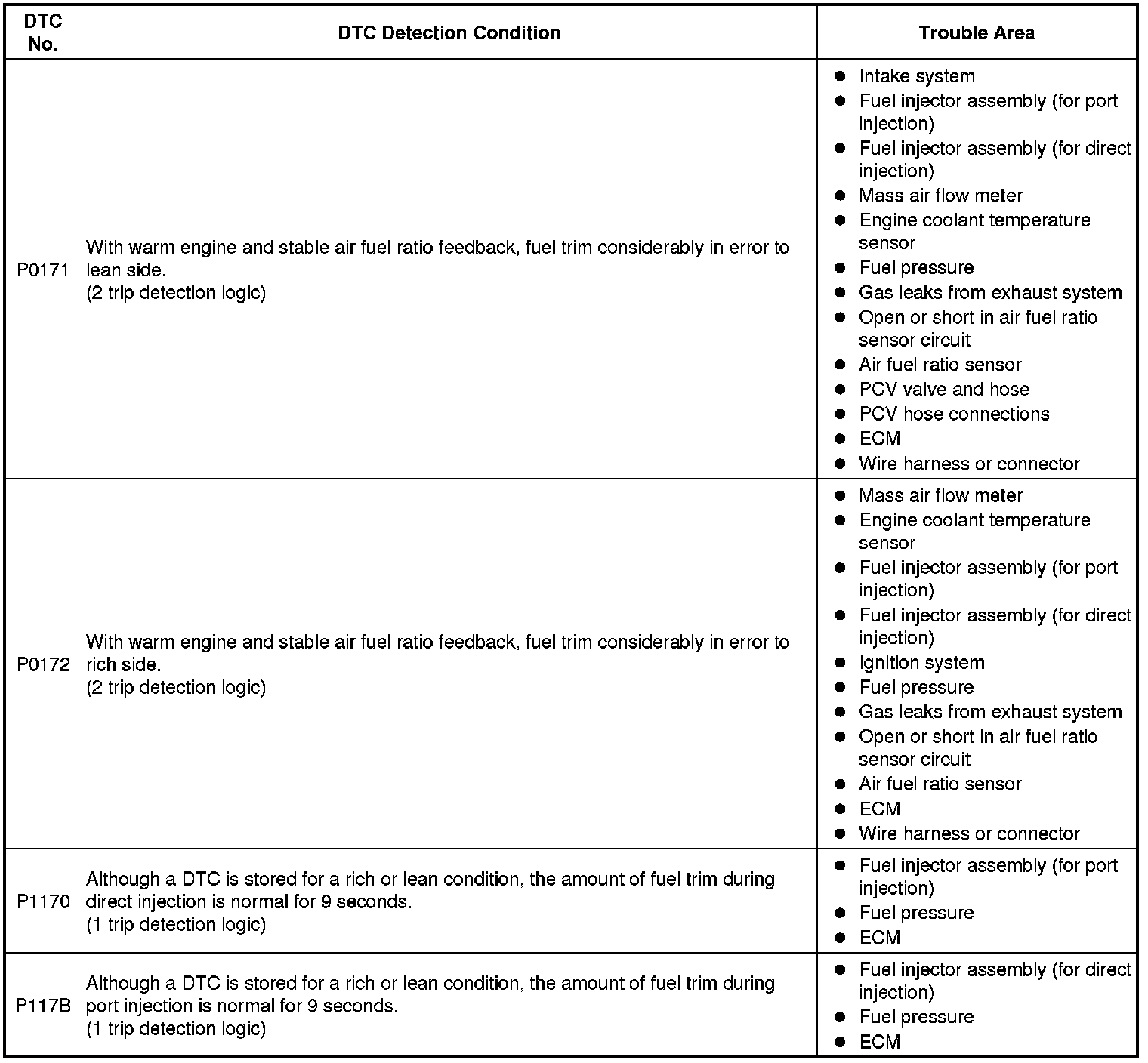

P0171 - System Too Lean (Bank 1)
P0172 - System Too Rich (Bank 1)
P1170 - Port Injector Fuel Performance
P117B - Direct Injector Fuel Performance

DESCRIPTION

The fuel trim is related to the feedback compensation value, not to the basic injection time. The fuel trim consists of both the short-term and the long-term fuel trim.

The short-term fuel trim is fuel compensation that is used to constantly maintain the air fuel ratio at stoichiometric levels. The signal from the air fuel ratio sensor indicates whether the air fuel ratio is rich or lean compared to the stoichiometric ratio. This triggers a reduction in the fuel injection volume if the air fuel ratio is rich and an increase in the fuel injection volume if it is lean.

Factors such as individual engine differences, wear over time and changes in operating environment cause short-term fuel trim to vary from the ideal theoretical value. The long-term fuel trim controls overall fuel compensation. The long-term fuel trim compensates for long term deviations of the fuel trim from the ideal theoretical value. These long term deviations result from the corrections made by the short-term fuel trim.

If both the short-term fuel and long-term fuel trim are lean or rich beyond predetermined values, it is interpreted as a malfunction, the ECM illuminates the MIL and sets a DTC.





HINT
* When DTC P0171 is set, the actual air-fuel ratio is on the lean side. When DTC P0172 is set, the actual air-fuel ratio is on the rich side.
* If the vehicle runs out of fuel, the air-fuel ratio is lean and DTC P0171 may be set. The MIL is then illuminated.
* When DTC P1170 or P117B is output , it may not be possible to precisely determine whether the port injection or the direct injection is malfunctioning, depending on the conditions. In this case, perform an Active Test (control the injection way) to determine which injection system is malfunctioning.

MONITOR DESCRIPTION

Under closed loop fuel control, fuel injection volumes that deviate from those estimated by the ECM cause changes in the long-term fuel trim compensation value. The long-term fuel trim is adjusted when there are persistent deviations in the short-term fuel trim values. Deviations from the ECM's estimated fuel injection volumes also affect the average fuel trim learning value, which is a combination of the average short-term fuel trim (fuel feedback compensation value) and the average long-term fuel trim (learning value of the air fuel ratio). If the average fuel trim learning value exceeds the malfunction threshold, the ECM interprets this as a malfunction in the fuel system and sets a DTC.

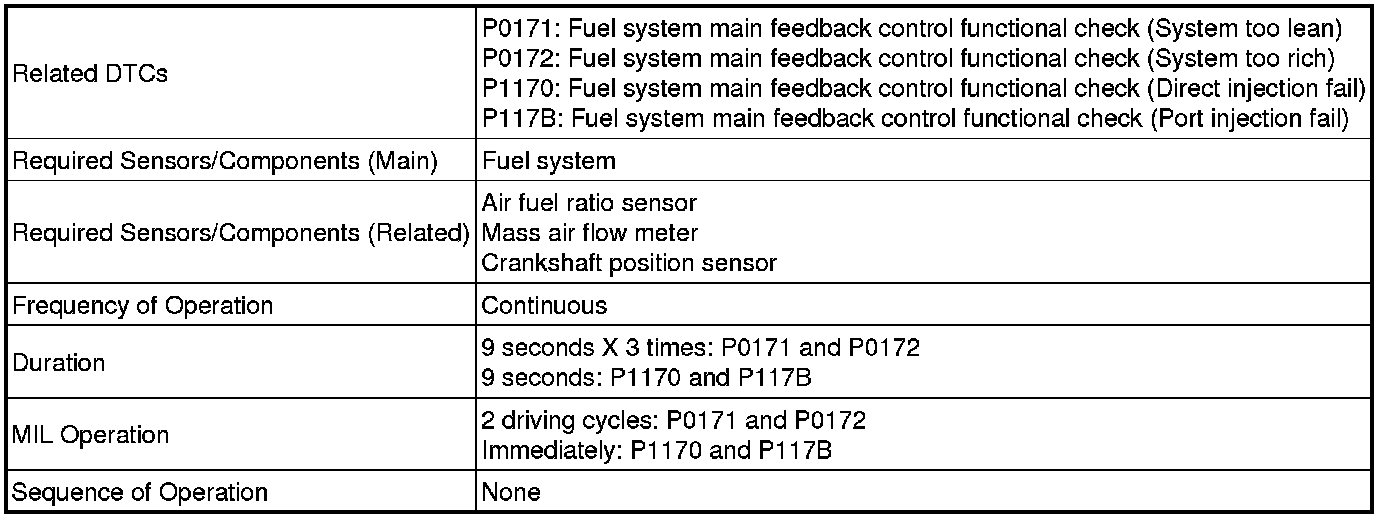

MONITOR STRATEGY

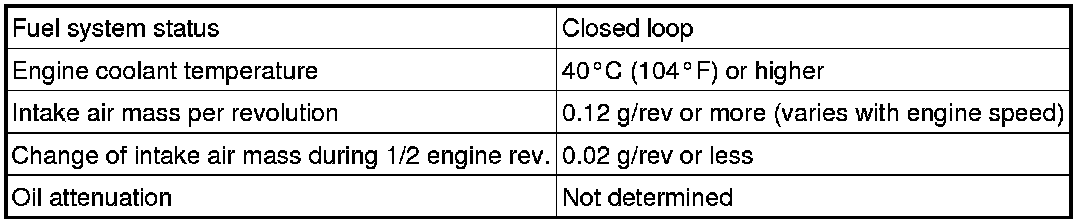

TYPICAL ENABLING CONDITIONS

All





P0171





P0172





P1170





P117B





TYPICAL MALFUNCTION THRESHOLDS

P0171





P0172

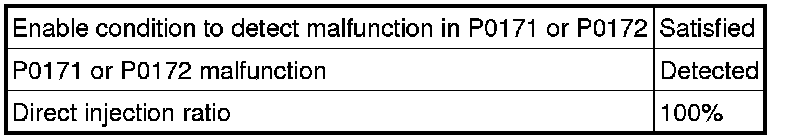

P1170, P117B





CONFIRMATION DRIVING PATTERN





1. Connect the Techstream to the DLC3.

2. Turn the ignition switch to ON and turn the Techstream on.

3. Clear DTCs (even if no DTCs are stored, perform the clear DTC operation) Reading and Clearing Diagnostic Trouble Codes.

4. Turn the ignition switch off and wait for at least 30 seconds.

5. Turn the ignition switch to ON and turn the Techstream on.

6. Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher.

HINT
Check the engine coolant temperature is 20°C (68°F) or less at engine started.

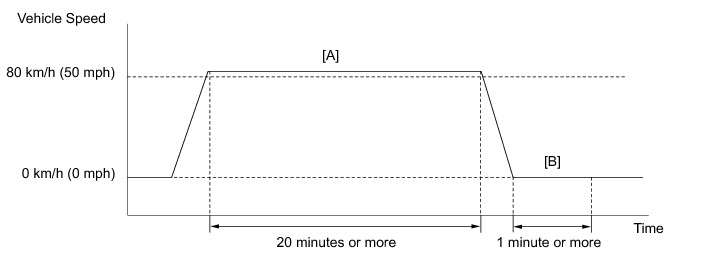

7. Perform the following the confirmation driving pattern.

CAUTION:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.

a. Drive the vehicle at 80 km/h (50 mph) or more for 20 minutes or more [A].

b. Stop the vehicle.

c. Idle the engine for 1 minute or more [B].

8. Enter the following menus: Powertrain / Engine / Trouble Codes.

9. Read pending DTCs.

HINT
* If a pending DTC is output, the system is malfunctioning.
* If a pending DTC is not output, perform the following procedure.

10. Enter the following menus: Powertrain / Engine / Utility / All Readiness.

11. Input the DTC: P0171, P0172, P1170 or P117B.

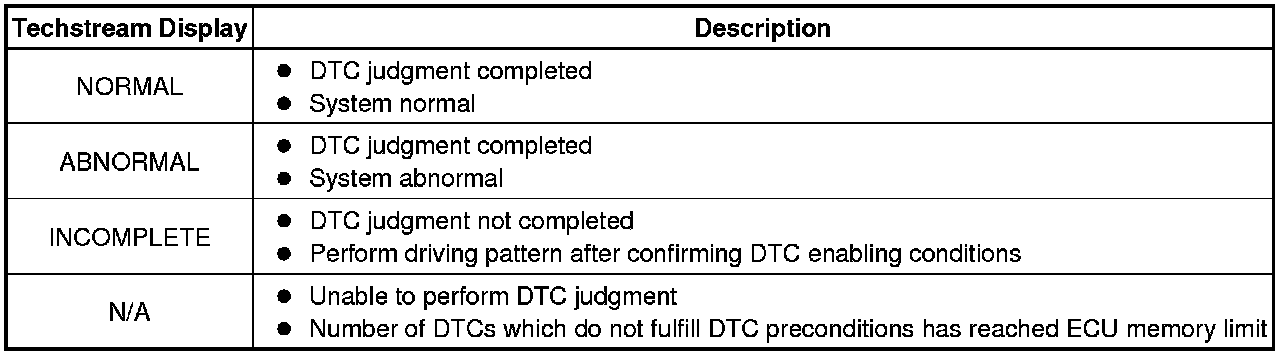

12. Check the DTC judgment result.





HINT
* If the judgment result shows NORMAL, the system is normal.
* If the judgment result shows ABNORMAL, the system has a malfunction.

13. If the test result is INCOMPLETE or N/A and no DTC is output, perform a universal trip and check for permanent DTCs Reading and Clearing Diagnostic Trouble Codes.

HINT
* If a permanent DTC is output, the system is malfunctioning.
* If no permanent DTC is output, the system is normal.
