Removal






FRONT SUSPENSION: FRONT SUSPENSION MEMBER: REMOVAL; 2013 MY FR-S [03/2012 -]

1. REMOVE ENGINE ASSEMBLY

Removal

2. REMOVE FRONT LOWER SUSPENSION ARM ASSEMBLY LH

Removal

3. REMOVE FRONT LOWER SUSPENSION ARM ASSEMBLY RH

HINT
Perform the same procedure as for the LH side.

4. SEPARATE FRONT STABILIZER LINK ASSEMBLY LH Removal

5. SEPARATE FRONT STABILIZER LINK ASSEMBLY RH

HINT
Perform the same procedure as for the LH side.

6. REMOVE REAR BODY MOUNTING CUSHION SUB-ASSEMBLY LH Removal

7. REMOVE REAR BODY MOUNTING CUSHION SUB-ASSEMBLY RH

HINT
Perform the same procedure as for the LH side.

8. REMOVE RACK AND PINION POWER STEERING GEAR ASSEMBLY

Removal

9. REMOVE FRONT CROSS MEMBER SUB-ASSEMBLY

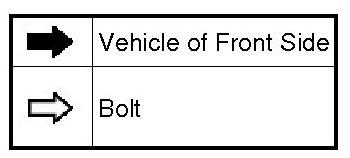

(a) Remove the 4 bolts and front cross member sub-assembly.
