Power Mirror Switch: Testing and Inspection

MIRROR (EXT): OUTER MIRROR SWITCH: INSPECTION; 2013 MY FR-S [03/2012 -]

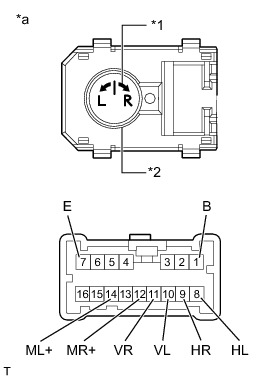

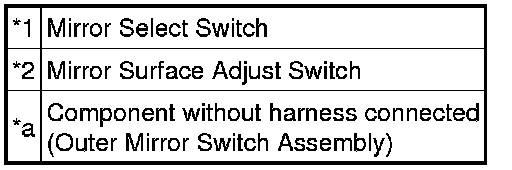

1. INSPECT OUTER MIRROR SWITCH ASSEMBLY

(a) Check the switch functions.









(1) Turn the mirror select switch to the L position.

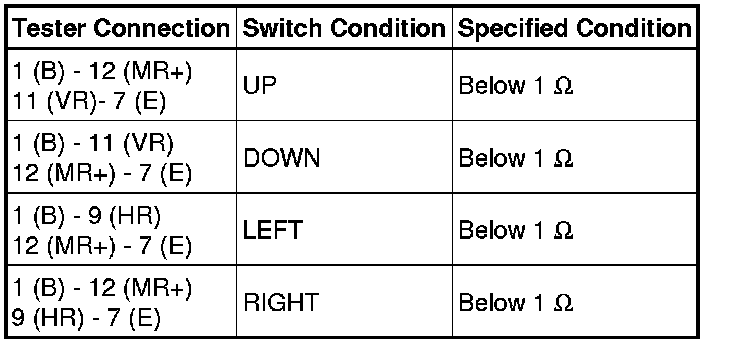

(2) Measure the resistance according to the value(s) in the table below.

Standard Resistance (for left side):





(3) Turn the mirror select switch to the R position.

(4) Measure the resistance according to the value(s) in the table below.

Standard Resistance (for right side):





If the result is not as specified, replace the outer mirror switch assembly.
