Front Seat Assembly
>>
Components
Components

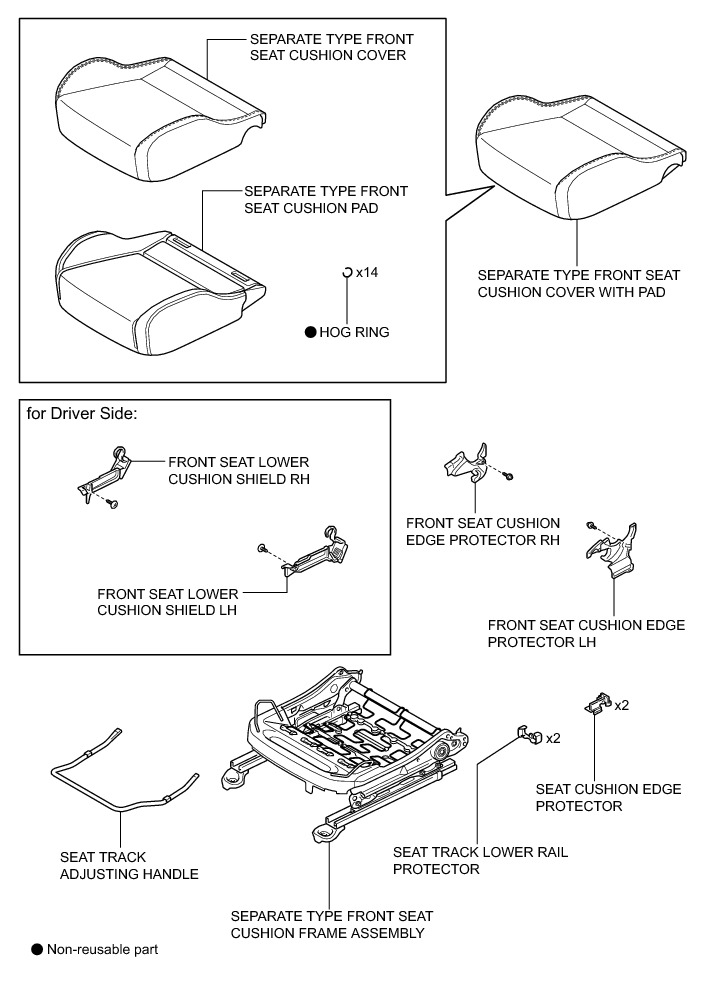

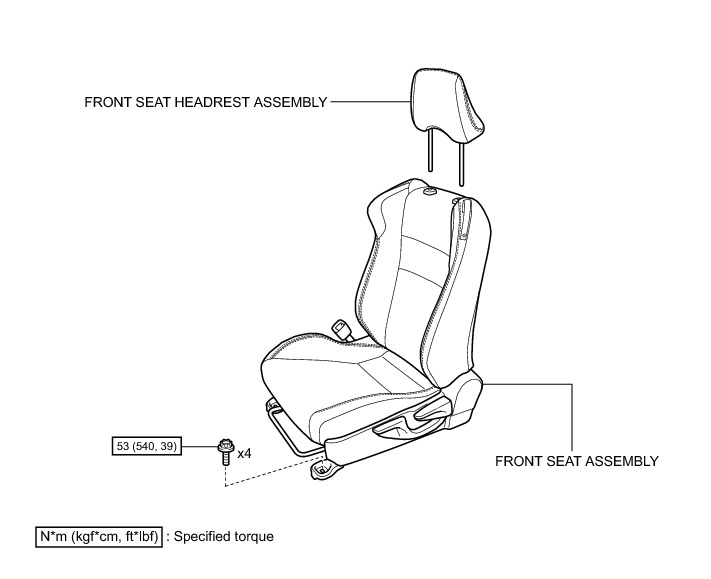

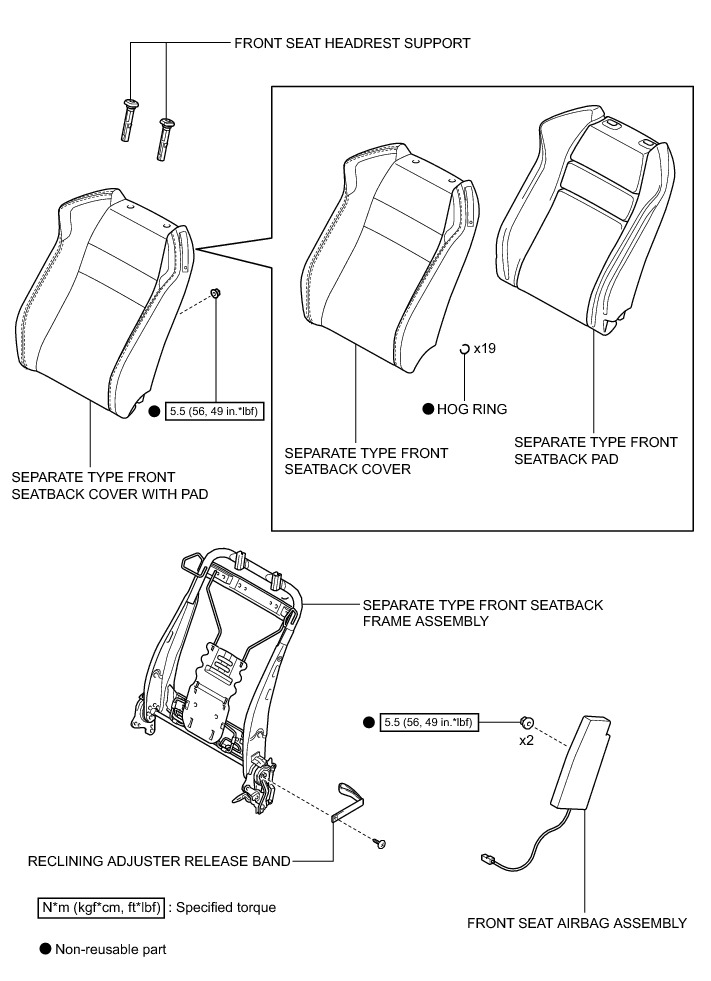

SEAT: FRONT SEAT ASSEMBLY: COMPONENTS; 2013 MY FR-S [03/2012 -]
