Freeze Frame Data

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: VEHICLE STABILITY CONTROL SYSTEM: FREEZE FRAME DATA; 2013 MY FR-S [03/2012 -]

1. FREEZE FRAME DATA

(a) Whenever an ABS DTC is detected, the skid control ECU stores the current vehicle (ECU or sensor) state as Freeze Frame Data.

(b) The skid control ECU stores the number of times (maximum: 31) the ignition switch has been turned from off to ON since the last time the ABS was activated.

HINT
* However, if the vehicle is stopped or driven at a low speed (7 km/h (4.3 mph) or less), or if a DTC is detected, the skid control ECU will stop counting the number.
* Freeze Frame Data at the time the ABS operates:
The skid control ECU stores and updates data whenever the ABS system operates.
When the ECU stores data at the time a DTC is detected, the data stored during ABS operation is cleared.
* Freeze Frame Data at the time a DTC is detected:
When the skid control ECU stores data at the time a DTC is detected, no updates will be performed until the data is cleared.

2. CHECK FREEZE FRAME DATA

(a) Turn the ignition switch off.

(b) Connect the Techstream to the DLC3.

(c) Turn the ignition switch to ON.

(d) Turn the Techstream on.

(e) Enter the following menus: Chassis / ABS/VSC/ TRAC / Trouble Codes.

(f) Select a DTC to display its Freeze Frame Data.

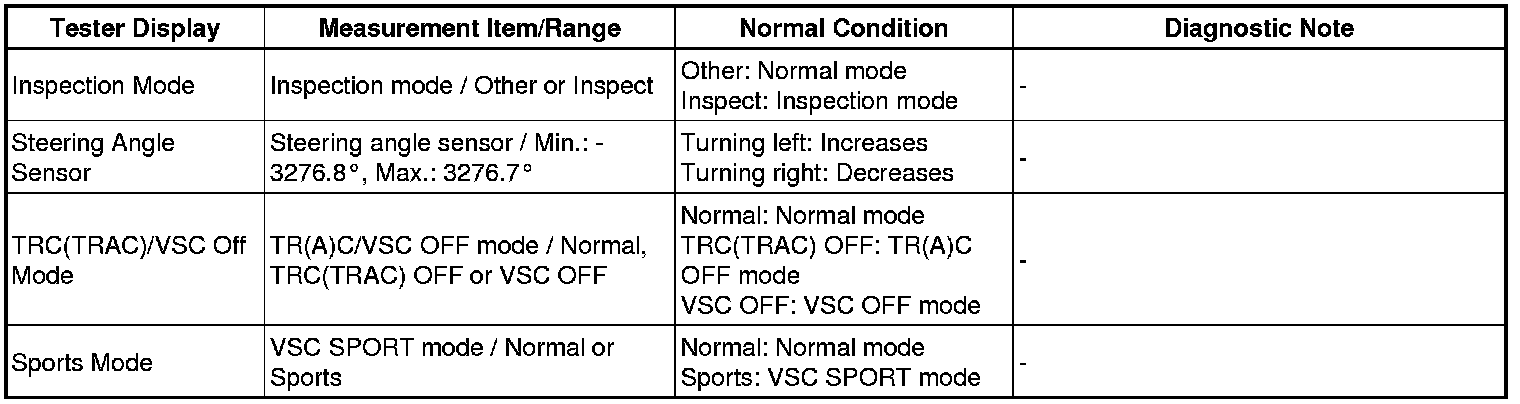

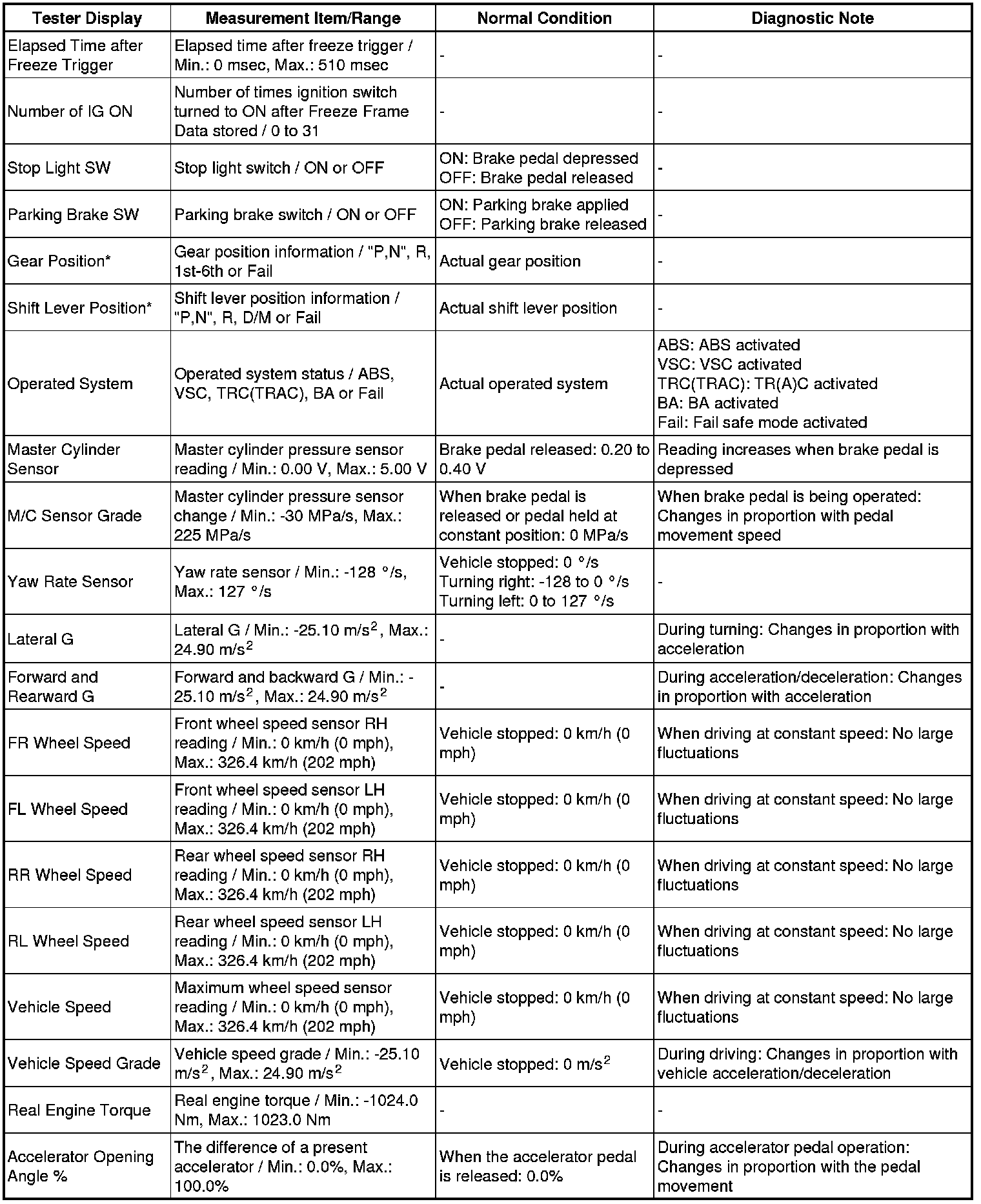

ABS/VSC/TRAC









* *: for Automatic Transmission

3. CLEAR FREEZE FRAME DATA

NOTICE:
Clearing the DTC will also clear the Freeze Frame Data.

(a) Turn the ignition switch off.

(b) Connect the Techstream to the DLC3.

(c) Turn the ignition switch to ON.

(d) Clear the DTCs and Freeze Frame Data Reading and Clearing Diagnostic Trouble Codes.
