Traction Control Switch: Testing and Inspection






BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: VSC OFF SWITCH: INSPECTION; 2013 MY FR-S [03/2012 -]

1. INSPECT PATTERN SELECT SWITCH ASSEMBLY

(a) Make sure that there is no looseness in the locking part and the connecting part of the VSC OFF switch.

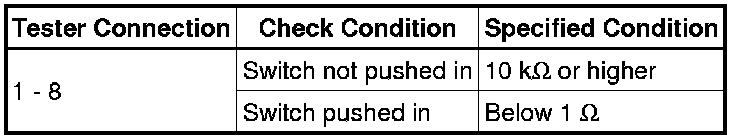

(1) Measure the resistance according to the value(s) in the table below.









Standard Resistance:





(b) Make sure that there is no looseness in the locking part and the connecting part of the VSC SPORT switch.

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





(c) Check the illumination status

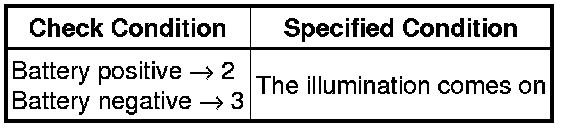

(1) Check the illumination when the battery voltage is applied between the connector terminals.

Standard:
