Removal






BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: FRONT SPEED SENSOR: REMOVAL; 2013 MY FR-S [03/2012 -]

HINT
* The procedures listed below are for the LH side.
* Use the same procedures for the RH and LH sides.

1. REMOVE FRONT WHEEL LH

2. REMOVE FRONT FENDER LINER LH Removal

3. REMOVE FRONT SPEED SENSOR LH

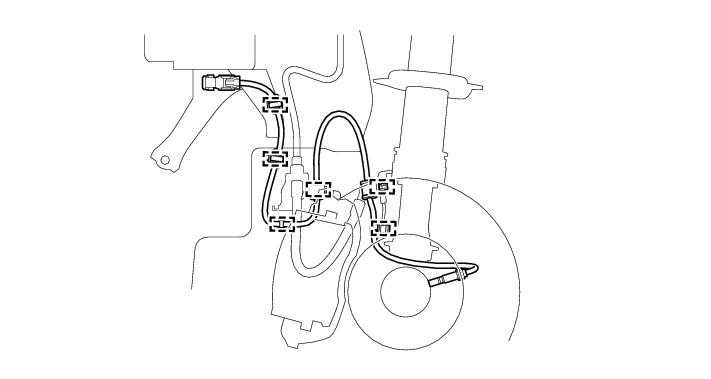

(a) Disconnect the front speed sensor connector.





(b) Disconnect the 6 clamps.





(c) Remove the bolt and front speed sensor LH from the steering knuckle.





NOTICE:
Clean the speed sensor installation hole and the contact surfaces every time the front speed sensor is removed.
