Removal
BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: REAR SPEED SENSOR: REMOVAL; 2013 MY FR-S [03/2012 -]
HINT
* Use the same procedures for the RH and LH sides.
* The procedures listed below are for the LH side.
1. REMOVE REAR WHEEL LH
2. REMOVE REAR SPEED SENSOR LH
(a) Remove the luggage compartment floor mat.
(b) Disconnect the rear speed sensor LH connector.

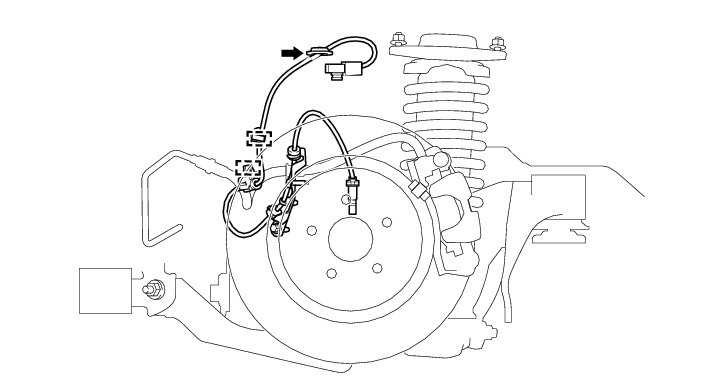

(c) Disconnect the rear speed sensor LH grommet and 2 harness clamps from the rear wheel house.
Text in illustration
(d) Remove the 2 bolts from the bracket.
(e) Remove the bolt and the rear speed sensor LH.
NOTICE:
Clean the speed sensor installation hole and the contact surfaces every time the rear speed sensor is removed.
