Rear Brake

BRAKE (REAR): REAR BRAKE: INSPECTION; 2013 MY FR-S [03/2012 -]

1. CHECK BRAKE CYLINDER AND PISTON

(a) Check the cylinder bore and piston for rust and scoring.

2. INSPECT PAD LINING THICKNESS

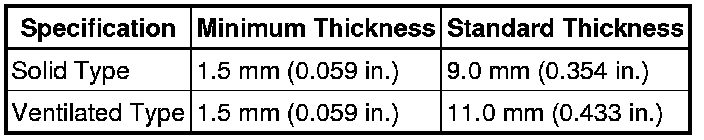

(a) Using a ruler, measure the pad lining thickness.









3. INSPECT DISC THICKNESS

(a) Using a micrometer, measure the disc thickness.









4. INSPECT DISC RUNOUT

(a) Check the bearing play in the axial direction and check for the axle hub runout Rear Axle Hub.









(b) Tighten the disc with the 5 nuts.

Torque : 120 Nm (1224 kgf-cm, 89 ft-lbf)

(c) Using a dial indicator, measure the disc runout 10 mm (0.394 in.) away from the outer edge of the rear disc.

Maximum disc runout:

0.05 mm (0.0020 in.)

NOTICE:
* If the runout exceeds the maximum value, change the installation positions of the disc and axle to make the minimum runout. If the runout exceeds the maximum even when the installation positions are changed, replace the front disc.

(d) Remove the 5 hub nuts and rear disc.
