Cancel Code
CRUISE CONTROL: CRUISE CONTROL SYSTEM: CANCEL CODE; 2013 MY FR-S [03/2012 -]
1. DESCRIPTION
The ECM stores cancellation of cruise control due to driver operation and system abnormality as a "CANCEL CODE". In troubleshooting, the "CANCEL CODE" can be used to specify the cause of the malfunction.
HINT
* The "CANCEL CODE" for canceled cruise control resulting from a driver operation is also stored. Therefore, fault troubleshooting needs to determine whether the "CANCEL CODE" is due to a driver operation or a system abnormality.
* Storage of a "CANCEL CODE" due to the driver canceling cruise control is normal, and not a system abnormality.
* The "CANCEL CODE" is cleared by turning off the ignition switch. So, does not turn the ignition switch off until the "CANCEL CODE" has been checked.
* When the ECM detects the cruise control system malfunction or the cruise control main switch malfunction, the ECM illuminates the cruise control indicator light in amber and stores "CANCEL CODE" as the memory. This memory is not deleted by turning the ignition switch off.
2. READ CANCEL CODE
(a) Connect the Techstream to the DLC3.
(b) Turn the ignition switch to ON.
(c) Turn the Techstream on.
(d) Start the engine.
(e) Perform a cruise control road test, and recreate the driving conditions in which cruise control was previously canceled.
(f) After cruise control is canceled, check the DATA LIST Data List / Active List.
(g) Check the stored "CANCEL CODE".
*: "(MEMORY)" displays the storage history of the "CANCEL CODE", and is not deleted by turning the ignition switch off. When clearing, perform to clear the DTC Reading and Clearing Diagnostic Trouble Codes.

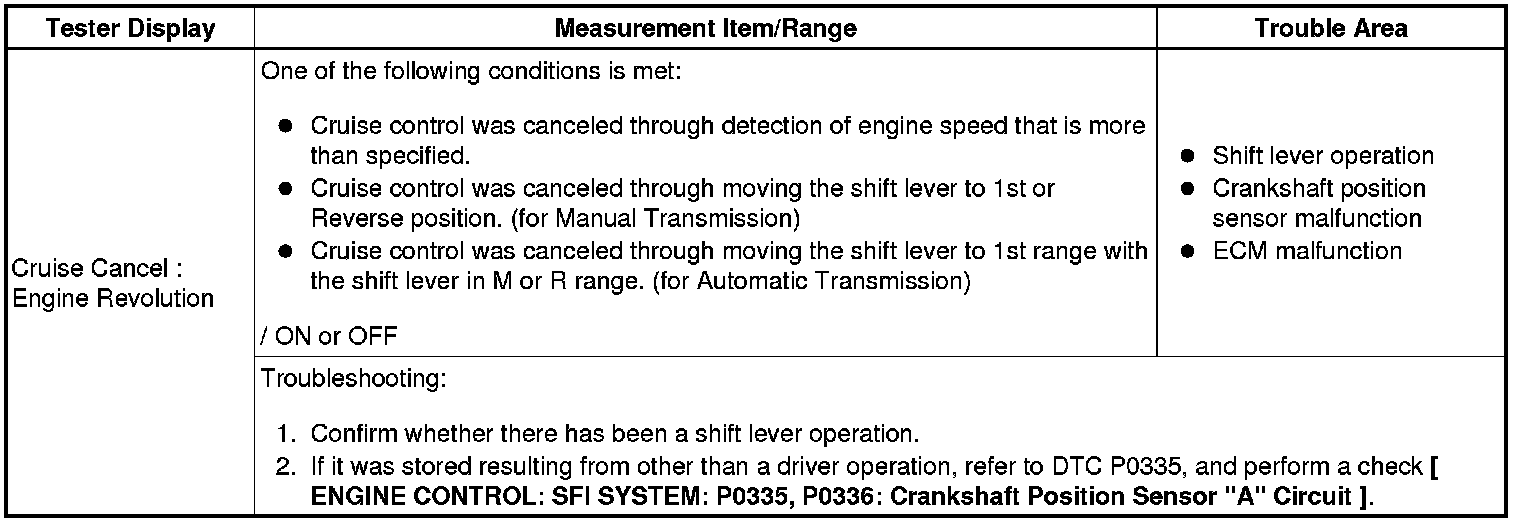

Cruise Cancel : Main Switch

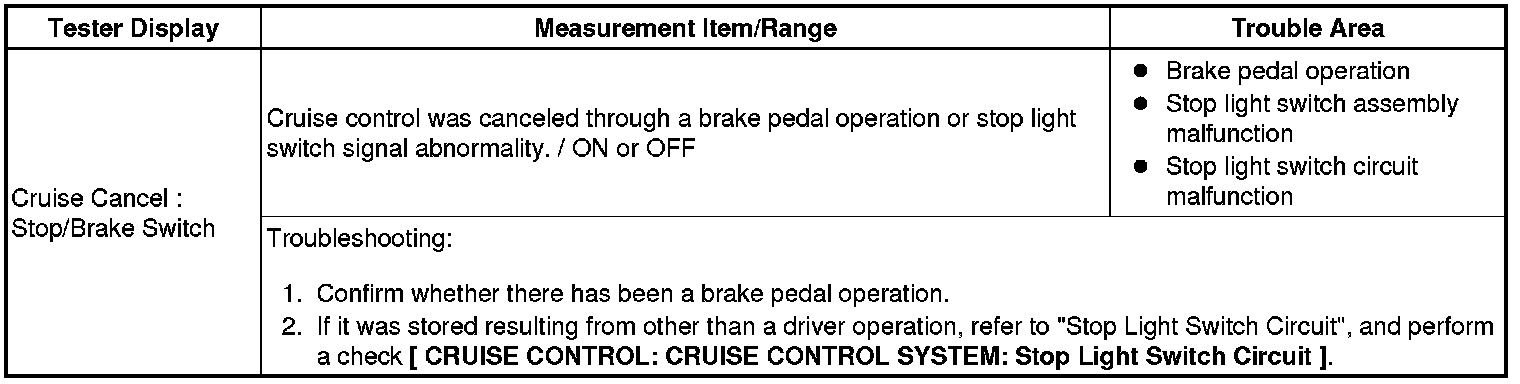

Cruise Cancel : Stop/Brake Switch

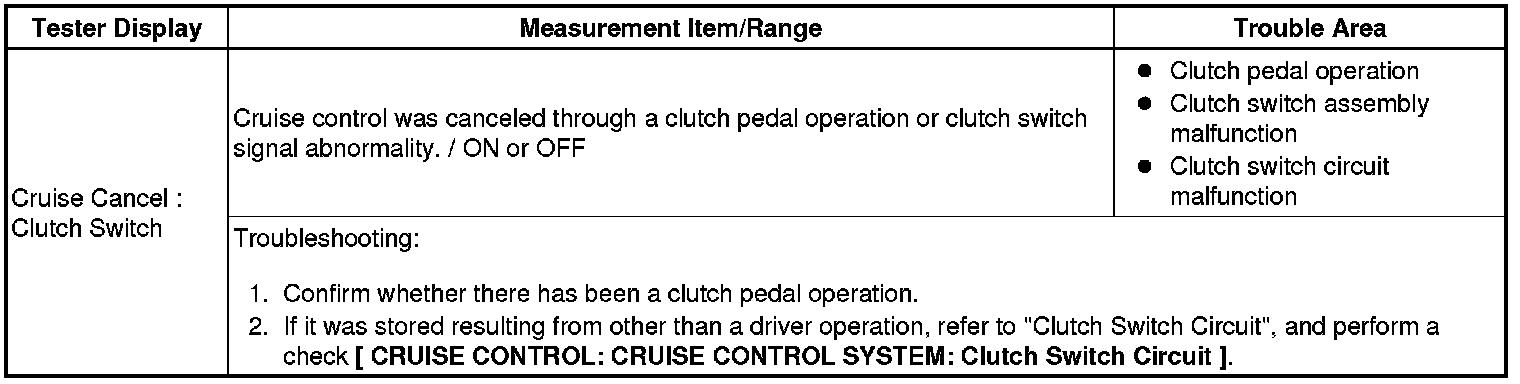

Cruise Cancel : Clutch Switch

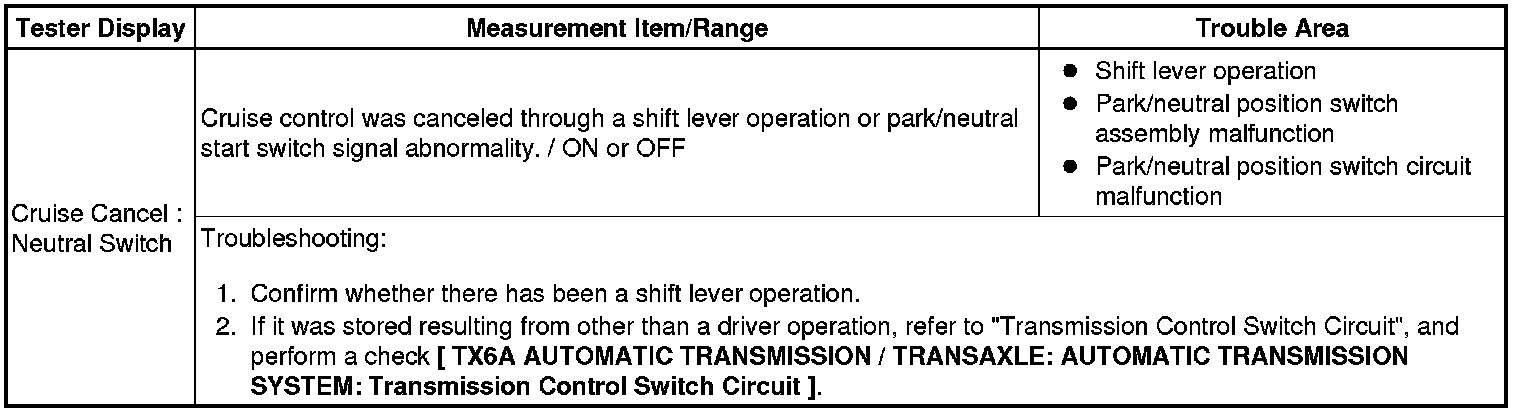

Cruise Cancel : Neutral Switch
Cruise Cancel : Cancel Switch

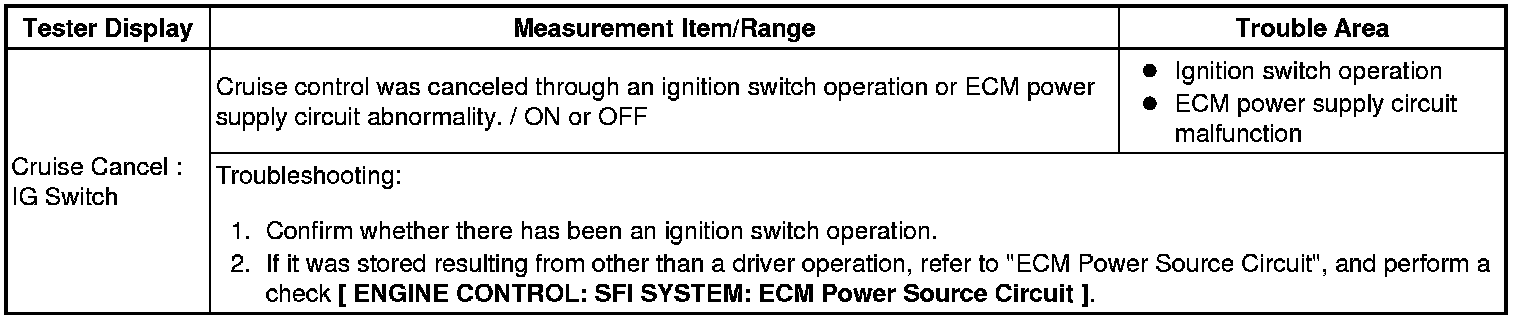

Cruise Cancel : IG Switch

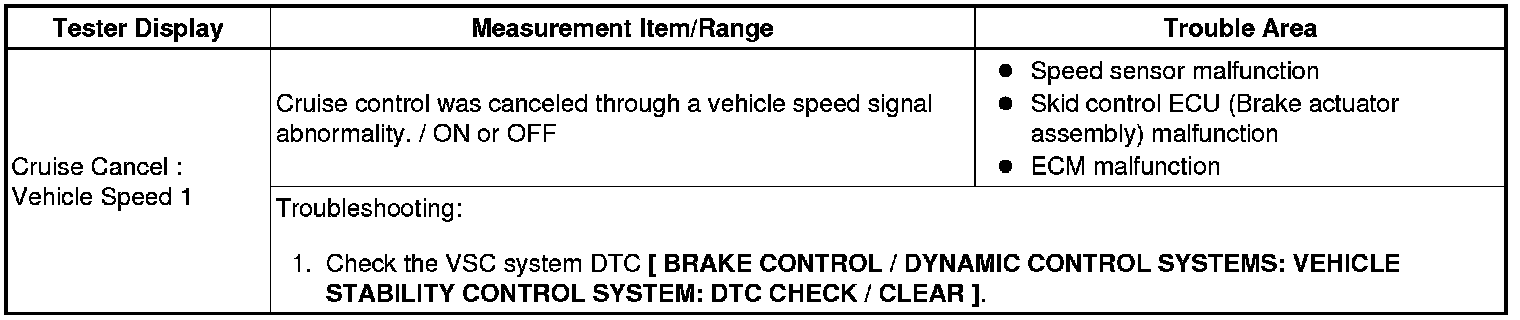

Cruise Cancel : Vehicle Speed 1
Cruise Cancel : Engine Revolution

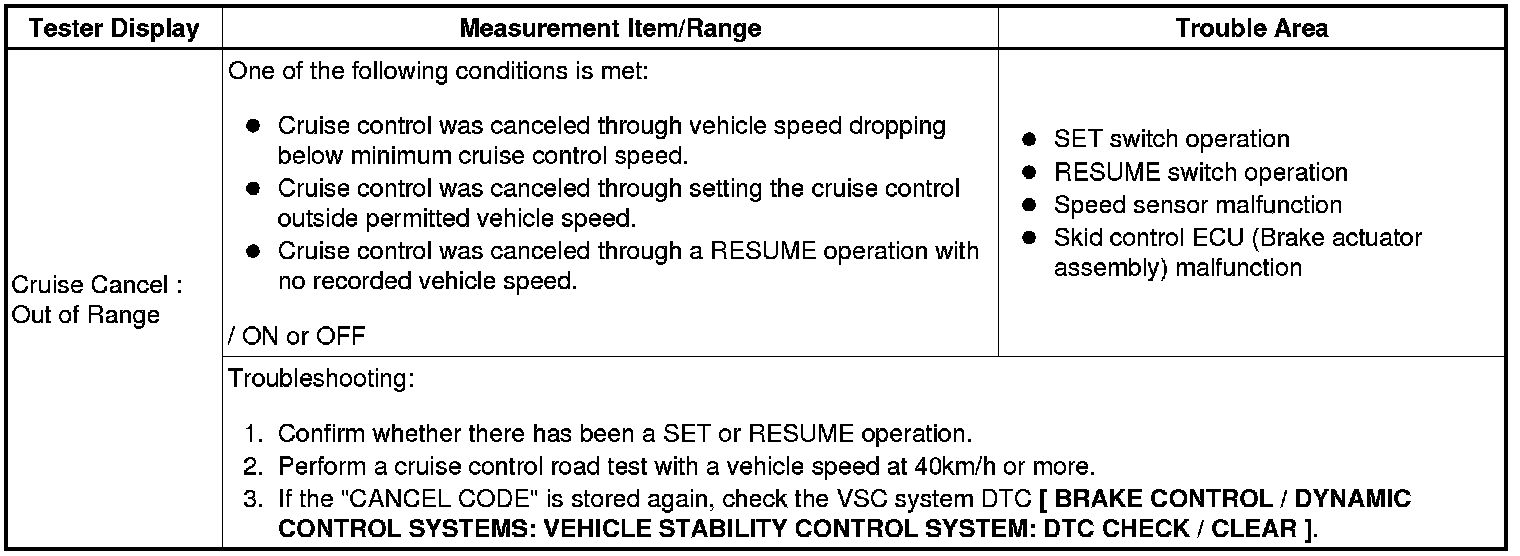

Cruise Cancel : Out of Range

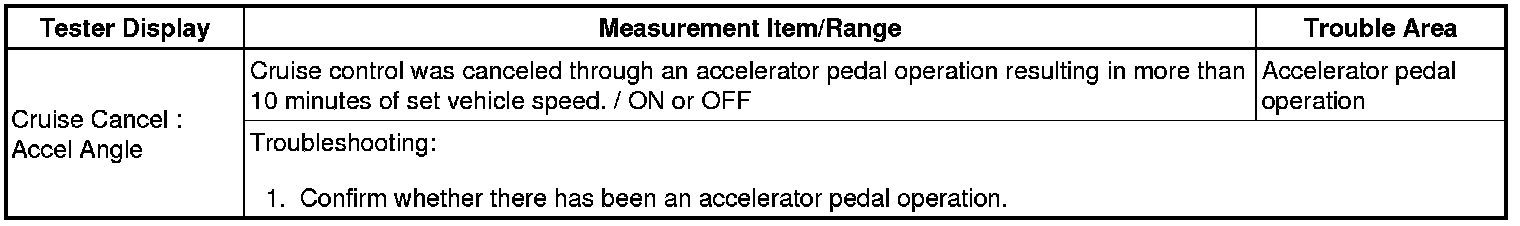

Cruise Cancel : Accel Angle

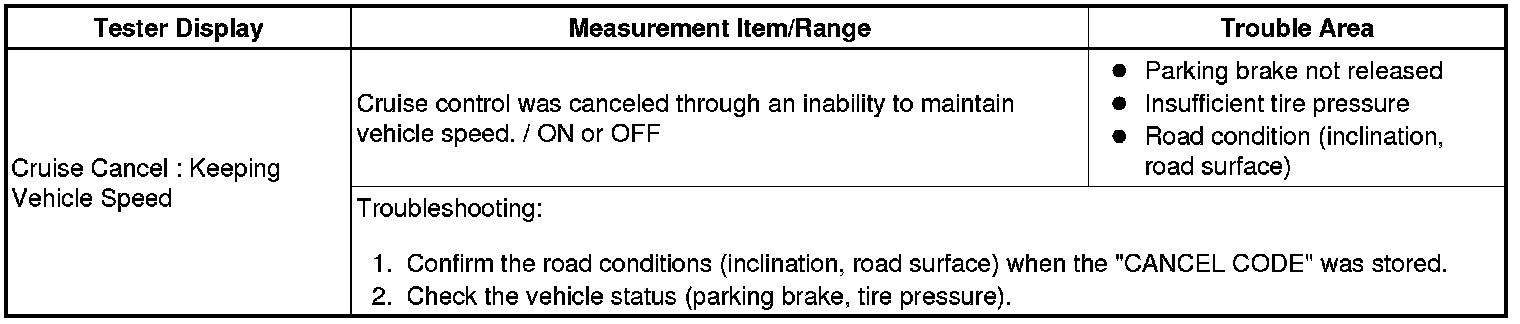

Cruise Cancel : Keeping Vehicle Speed

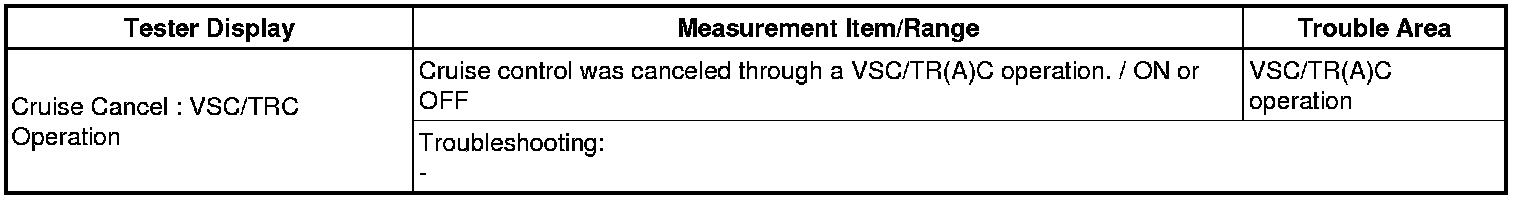

Cruise Cancel : VSC/TRC Operation

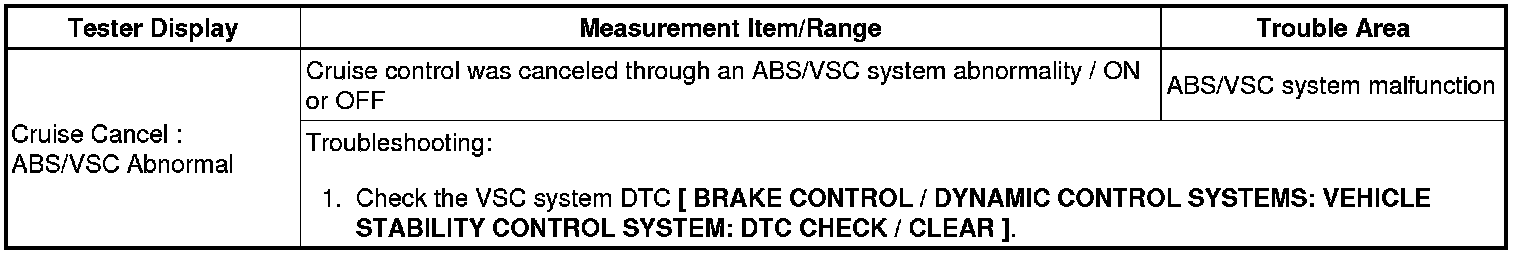

Cruise Cancel : ABS/VSC Abnormal

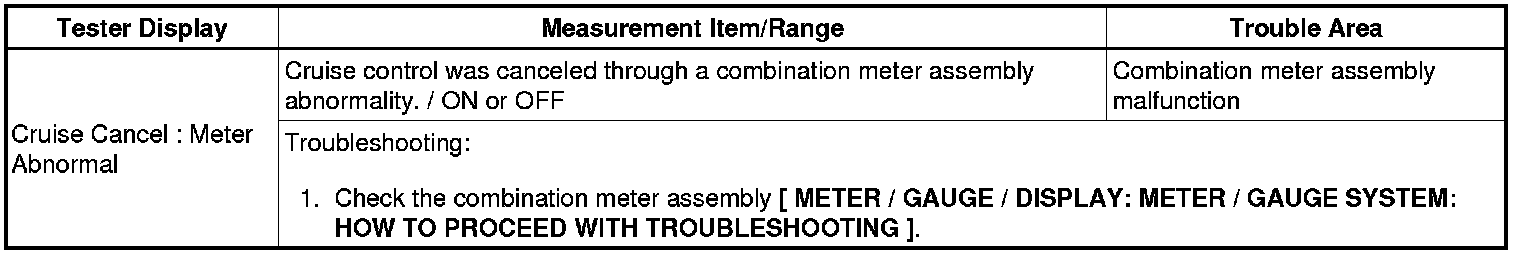

Cruise Cancel : Meter Abnormal

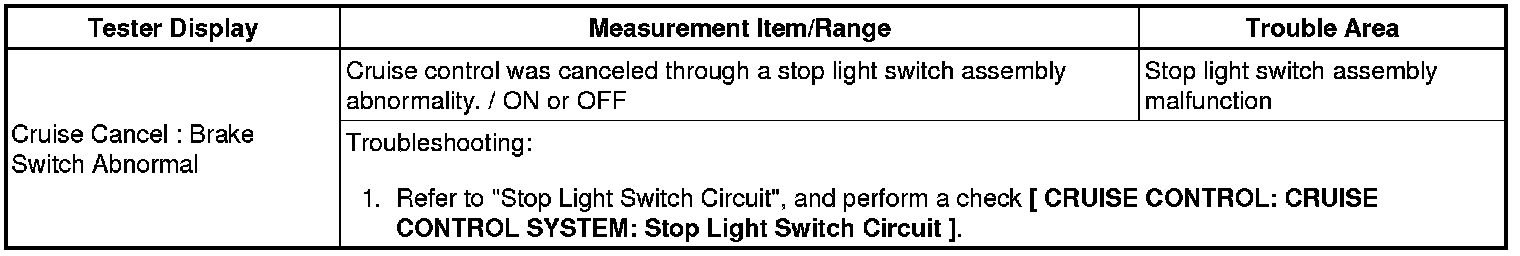

Cruise Cancel : Brake Switch Abnormal
Cruise Cancel : Neutral Switch Abnormal

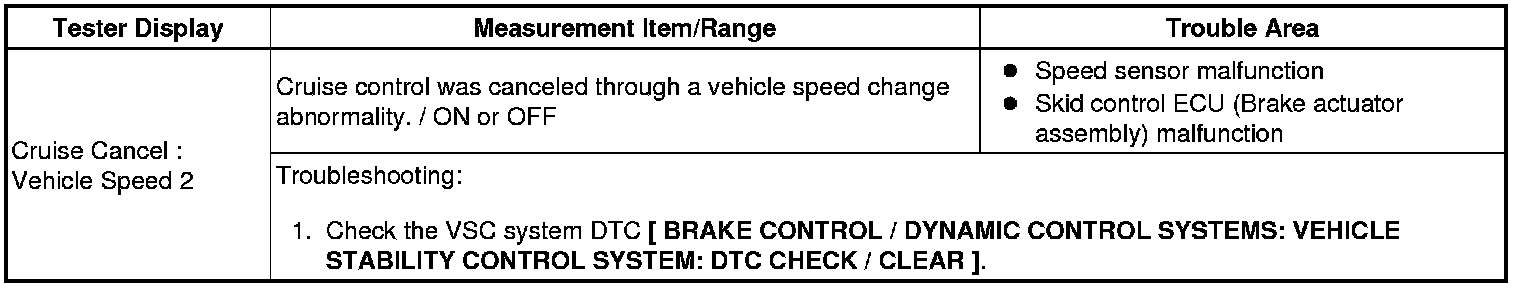

Cruise Cancel : Vehicle Speed 2

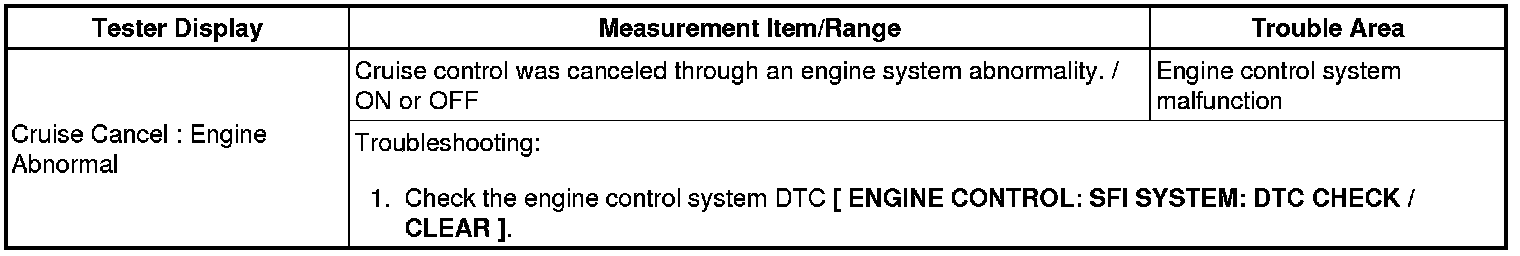

Cruise Cancel : Engine Abnormal
Cruise Cancel : Switch Related to Cruise Control
Cruise Cancel : Brake Switch Abnormal(Memory)*
Cruise Cancel : Neutral Switch Abnormal(Memory)*

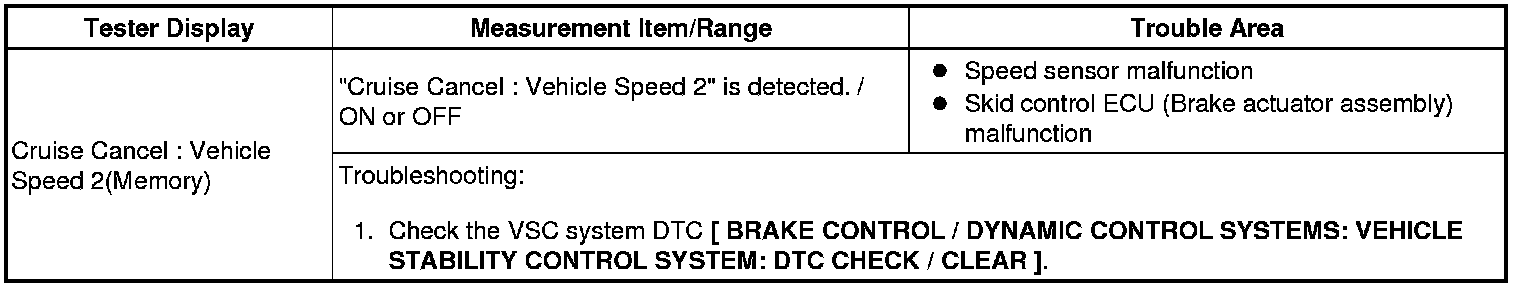

Cruise Cancel : Vehicle Speed 2(Memory)*

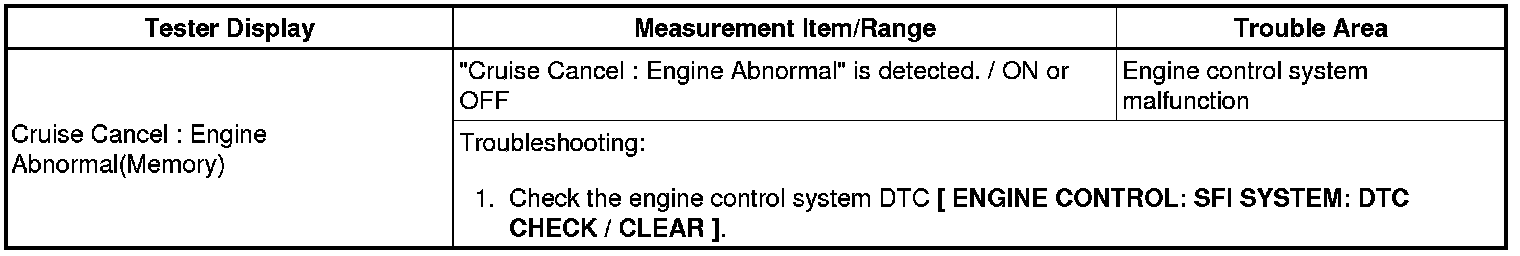

Cruise Cancel : Engine Abnormal(Memory)*

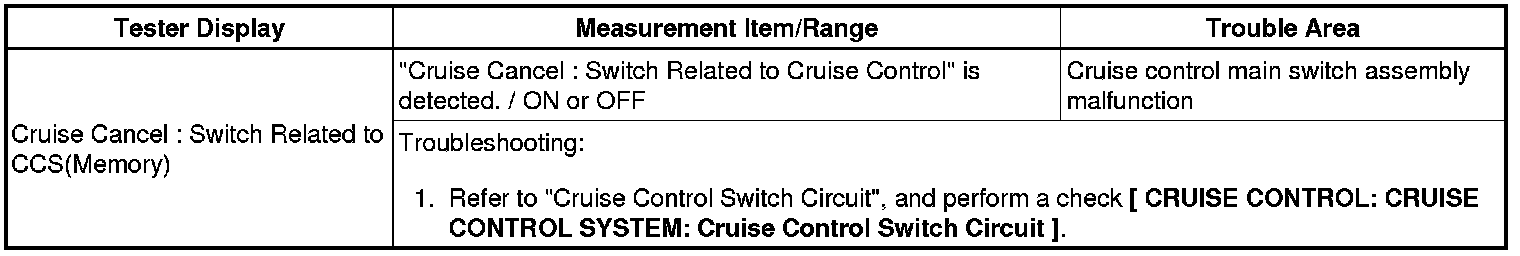

Cruise Cancel : Switch Related to CCS(Memory)*

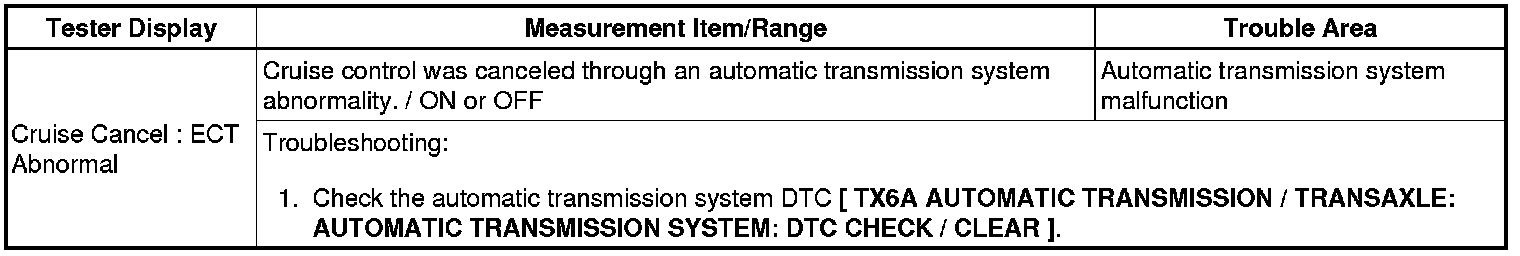

Cruise Cancel : ECT Abnormal
