Compressor HVAC: Testing and Inspection
HEATING / AIR CONDITIONING: COMPRESSOR: INSPECTION; 2013 MY FR-S [03/2012 -] 1.
INSPECT COMPRESSOR WITH MAGNET CLUTCH
(a)
Disconnect the connector from the compressor with magnet clutch.
(b)

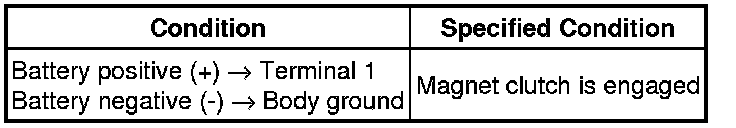

Apply battery voltage to the clutch and check operation of the clutch.
Standard Resistance: If the result is not as specified, replace the compressor.
