Control Assembly: Testing and Inspection

HEATING / AIR CONDITIONING: AIR CONDITIONING PANEL: INSPECTION; 2013 MY FR-S [03/2012 -]

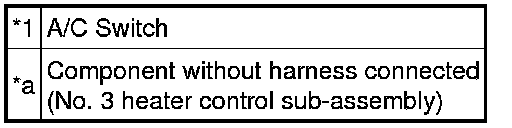

1. INSPECT NO. 3 HEATER CONTROL SUB-ASSEMBLY

(a) Check the heater control assembly resistance.

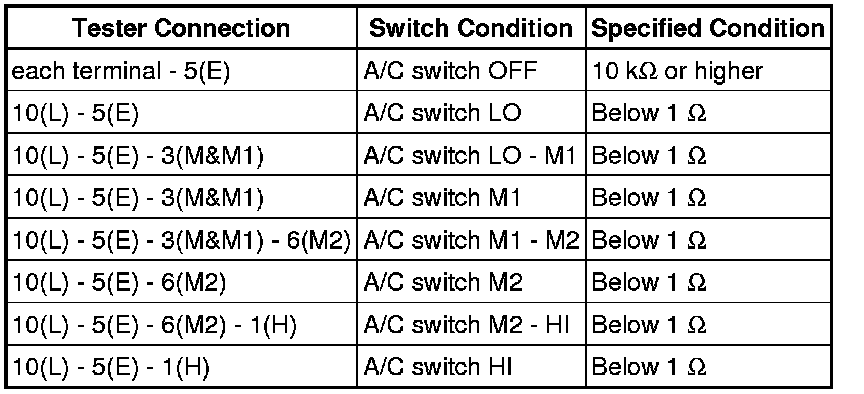

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

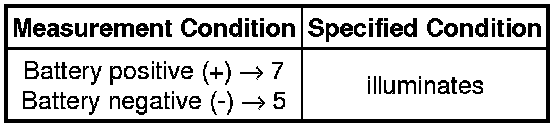

(c) Check that the A/C Switch illumination.

OK:





(d) Check that the indicator light.

Standard:

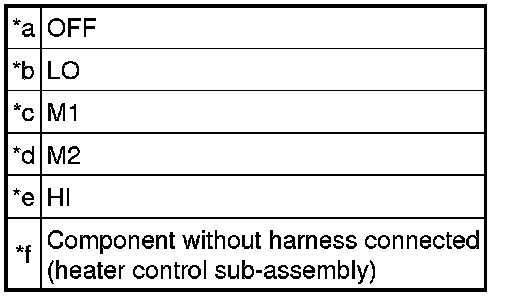

2. INSPECT HEATER CONTROL SUB-ASSEMBLY

(a) Check the heater control assembly resistance.









(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





(c) Check the heater control assembly resistance.

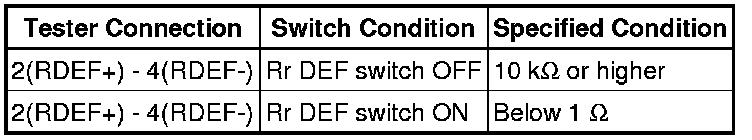

(d) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

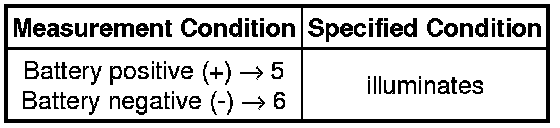

(e) Check that the Rr DEF switch illumination.

OK:

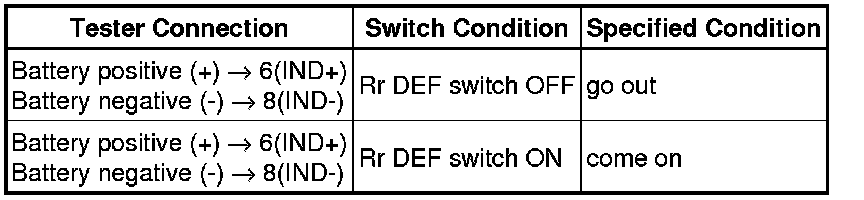

(f) Check that the indicator light.

Standard:

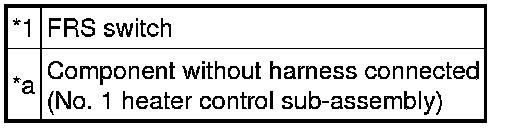

3. INSPECT NO. 1 HEATER CONTROL SUB-ASSEMBLY

(a) Check that the FRS switch illumination.









OK:

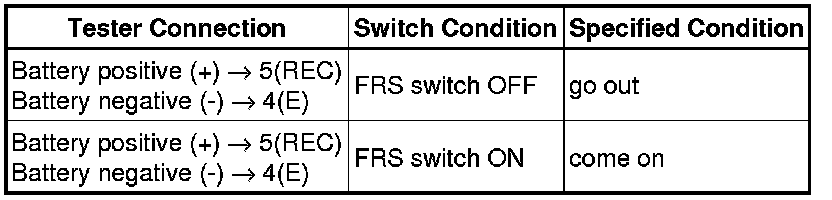

(b) Check that the indicator light.

Standard:
