Home >> Scion >> 2013 >> FR-S F4-2.0L (FA20) >> Repair and Diagnosis >> Heating and Air Conditioning >> Locations

Heating and Air Conditioning: Locations

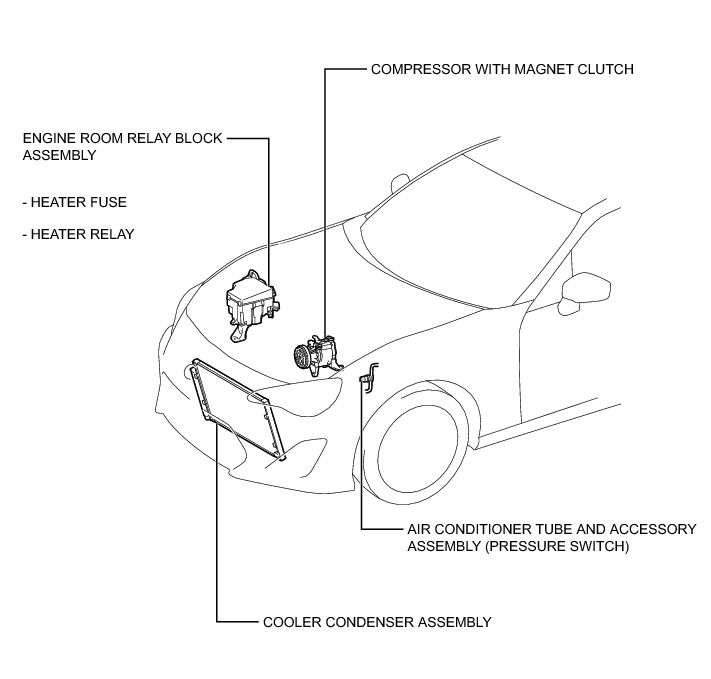

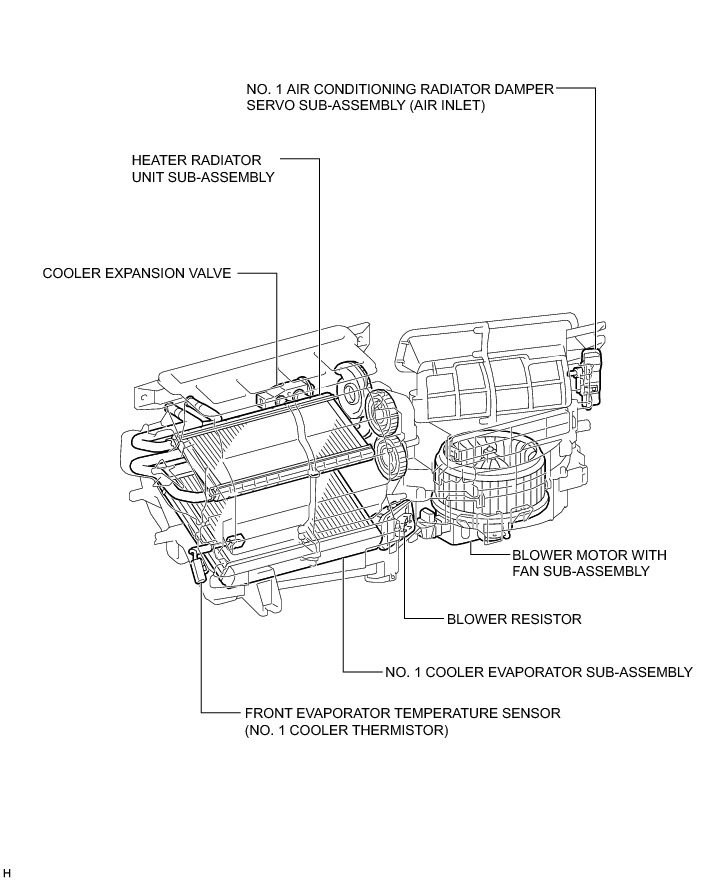

HEATING / AIR CONDITIONING: AIR CONDITIONING SYSTEM: PARTS LOCATION; 2013 MY FR-S [03/2012 -]
