Mechanical Specifications






SPECIFICATIONS: HEATING / AIR CONDITIONING: TORQUE SPECIFICATIONS; 2013 MY FR-S [03/2012 -]

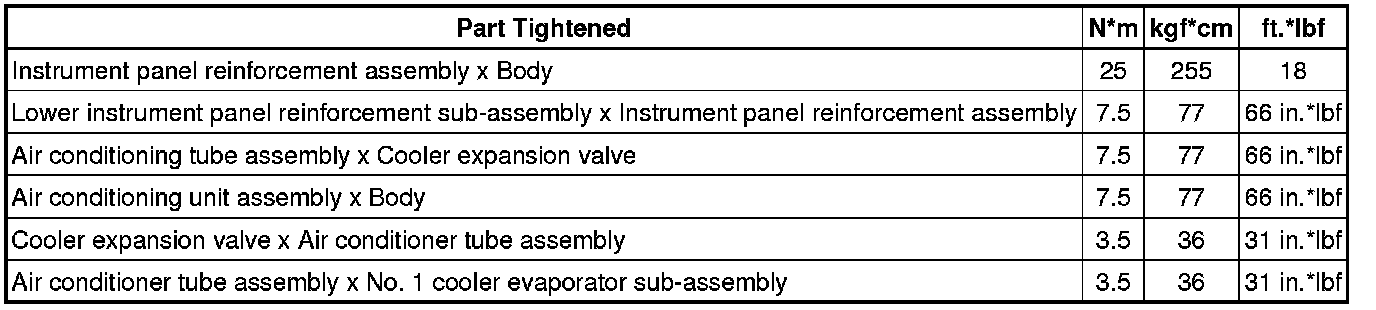

AIR CONDITIONING UNIT





COOLER EXPANSION VALVE





COMPRESSOR

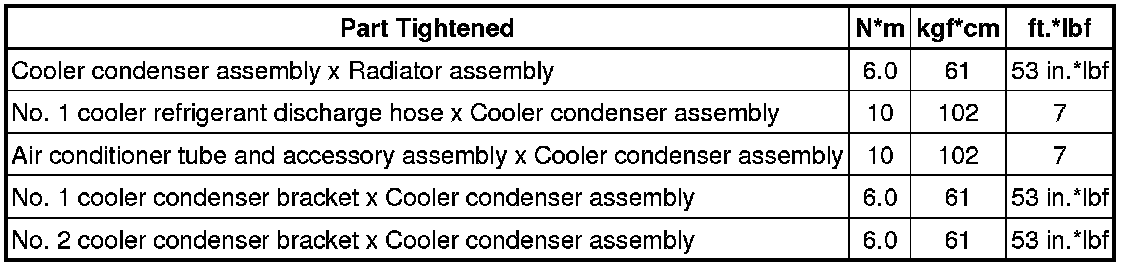

CONDENSER
