Key Reminder Warning System

DOOR LOCK: KEY REMINDER WARNING SYSTEM: CUSTOMIZE PARAMETERS; 2013 MY FR-S [03/2012 -]

1. CUSTOMIZE KEY REMINDER WARNING SYSTEM

(a) Customizing with the Techstream

NOTICE:
* When the customer requests a change in a function, first make sure that the function can be customized.
* Record the current settings before customizing.
* When troubleshooting a function, first make sure that the function is set to the default setting.

HINT
The following items can be customized.

(1) Connect the Techstream to the DLC3.

(2) Turn the ignition switch to ON.

(3) Turn the Techstream on.

(4) Enter the following menus: Body Electrical / Combination Meter / Utility / Customize / Warning.

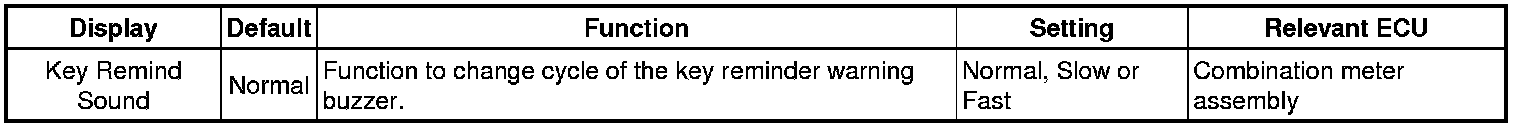

(5) Select the setting by referring to the table below.

Warning
