Interior Lighting System
LIGHTING (INT): LIGHTING SYSTEM: PROBLEM SYMPTOMS TABLE; 2013 MY FR-S [03/2012 -]
HINT

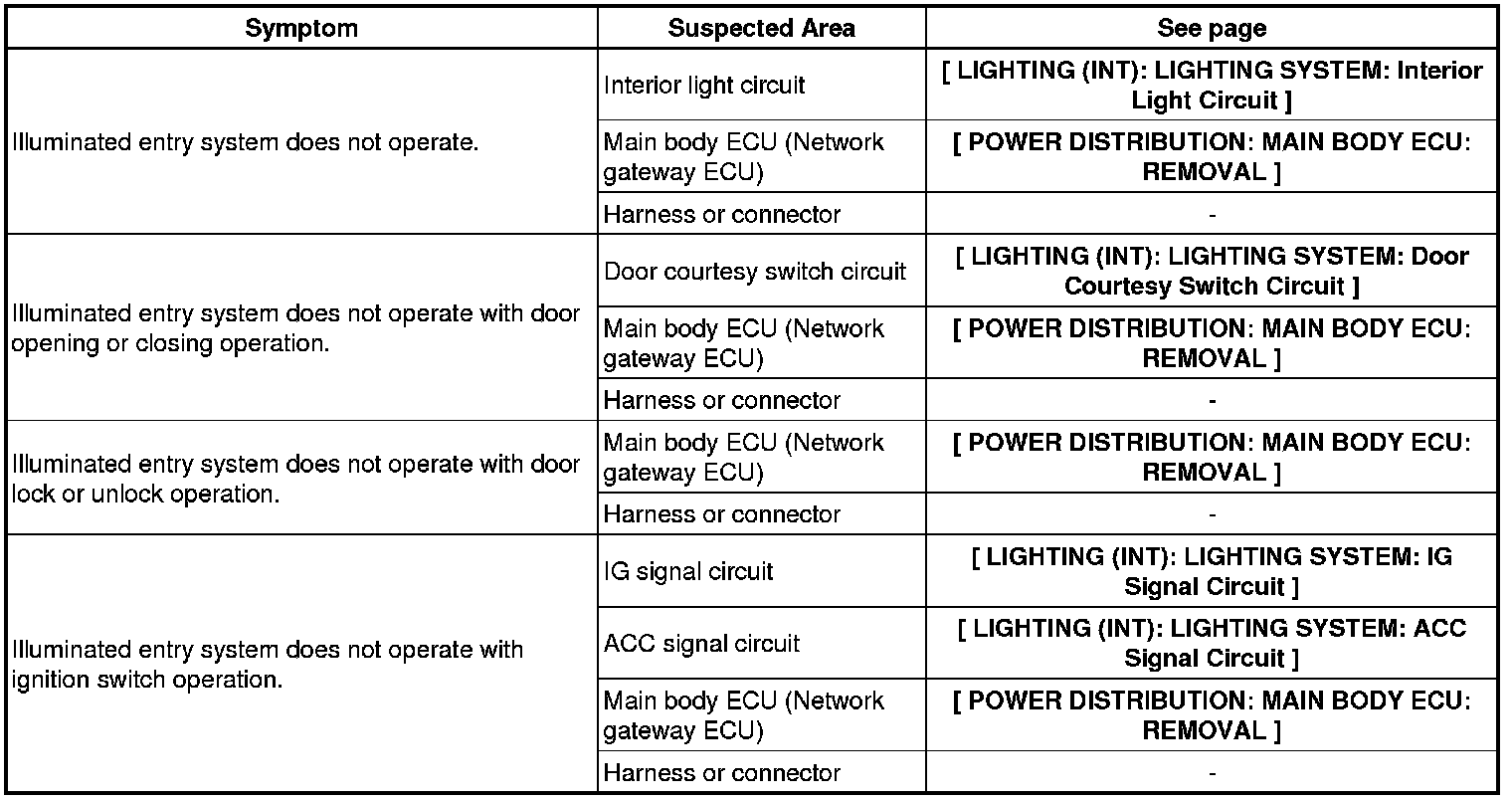

Use the table below to help determine the cause of problem symptoms. If multiple suspected areas are listed, the potential causes of the symptoms are listed in order of probability in the "Suspected Area" column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary.
Illuminated Entry System (Interior Light Control)
Map Light
Battery Saving Control
Ignition Key Cylinder Light
Luggage Compartment Room Light
