Installation

LIGHTING (INT): LUGGAGE COMPARTMENT ROOM LIGHT: INSTALLATION; 2013 MY FR-S [03/2012 -]

1. INSTALL LUGGAGE COMPARTMENT LIGHT BULB

(a) Install the luggage compartment light bulb to the luggage compartment light body.

2. INSTALL LUGGAGE COMPARTMENT LIGHT LENS

(a) Engage the 2 claws to install the luggage compartment light lens.

3. INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

(a) Connect the connector.

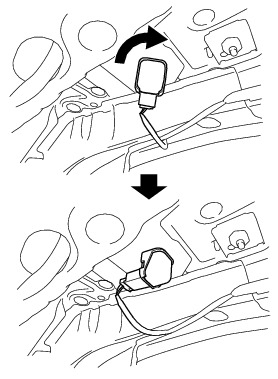

(b) Turn the No. 1 luggage compartment light assembly in the direction indicated by the arrow in the illustration, and install it.
