Rear Light Assembly
>>
Components
Components

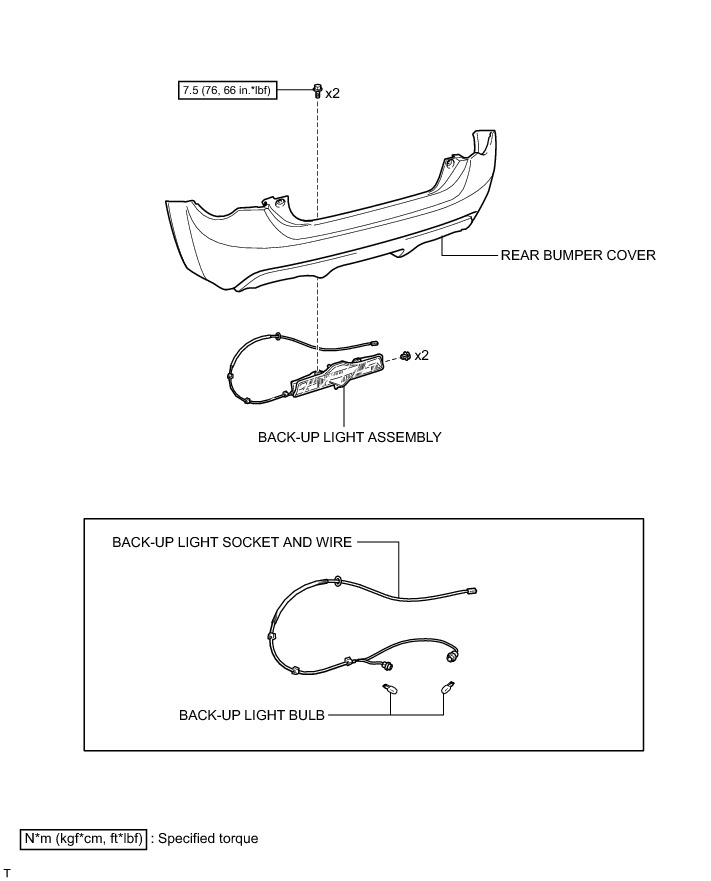

LIGHTING (EXT): REAR LIGHT ASSEMBLY: COMPONENTS; 2013 MY FR-S [03/2012 -]
