Pinout Values and Diagnostic Parameters






POWER DISTRIBUTION: ELECTRIC POWER CONTROL SYSTEM: TERMINALS OF ECU; 2013 MY FR-S [03/2012 -]

1. CHECK INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY AND MAIN BODY ECU (NETWORK GATEWAY ECU)









(a) Measure the voltage and resistance according to the value(s) in the table below.

HINT

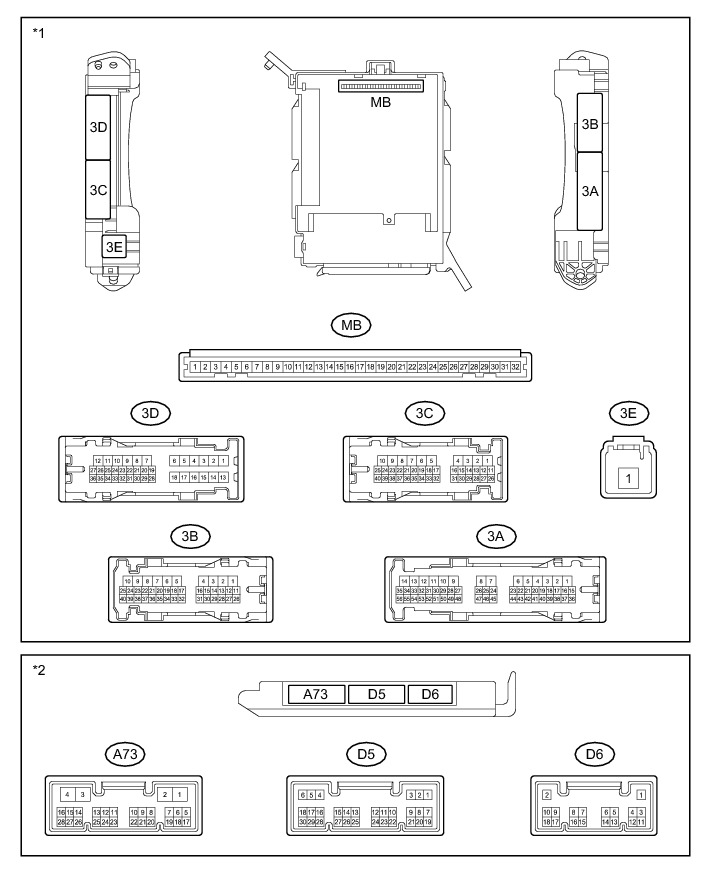

With the connectors connected, inspect from the rear side of the connectors.





(b) Remove the main body ECU (network gateway ECU) from the instrument panel junction block assembly.

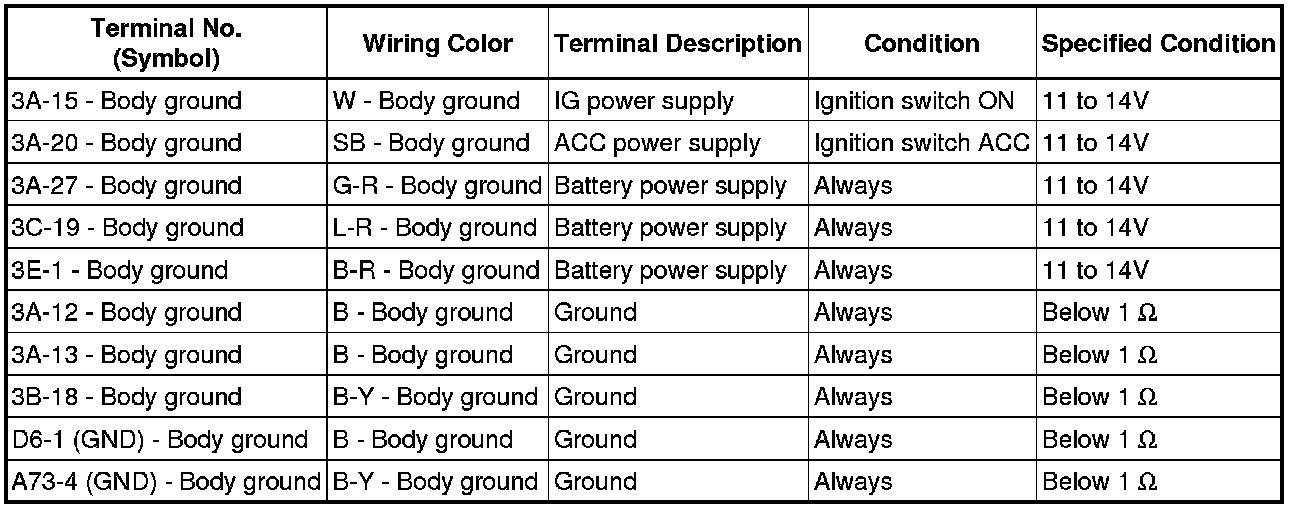

(c) Measure the voltage and resistance according to the value(s) in the table below.
