Computers and Control Systems: Description and Operation

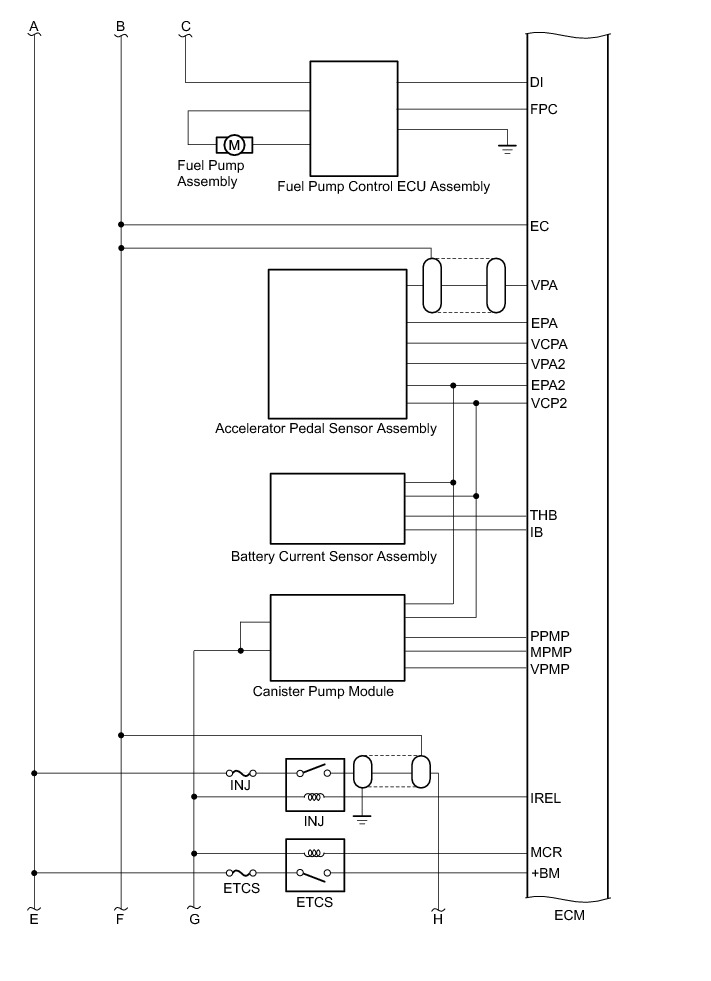

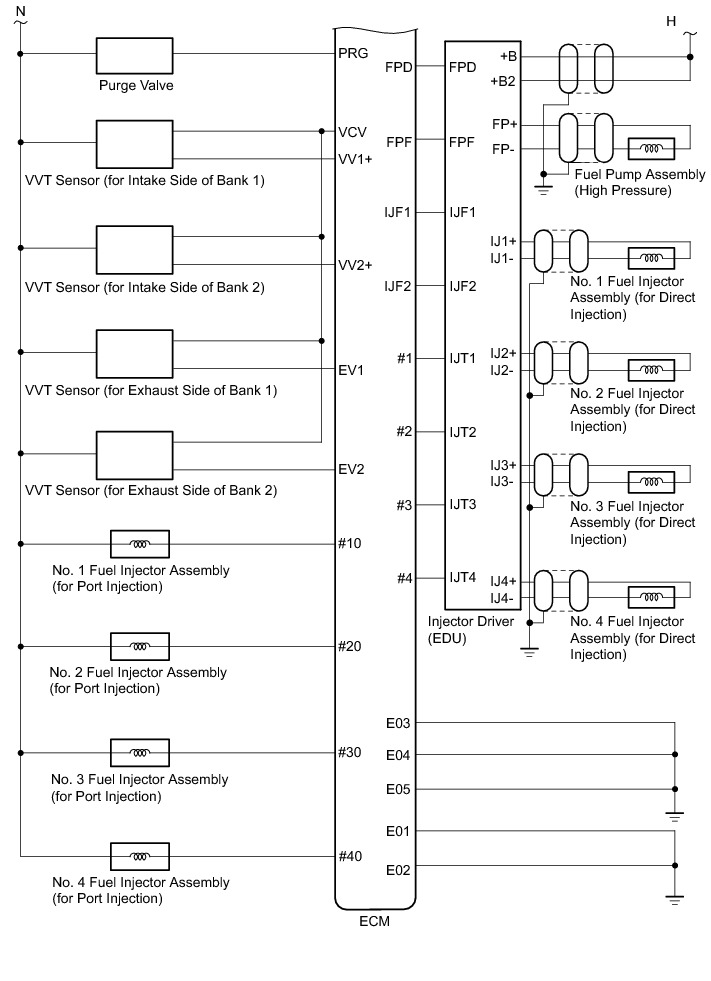

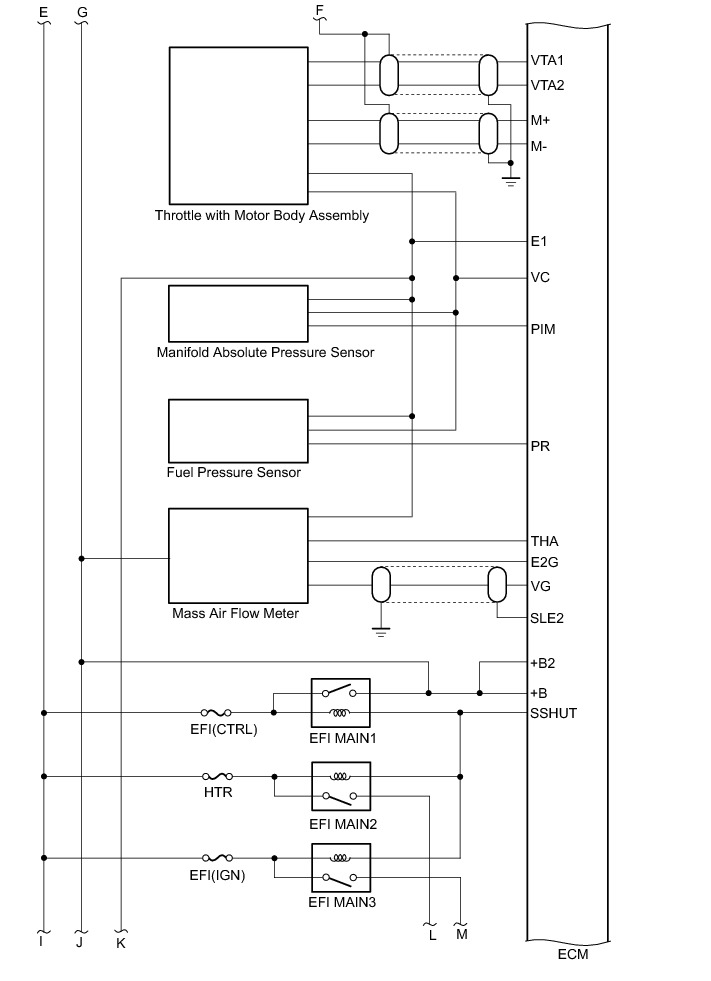

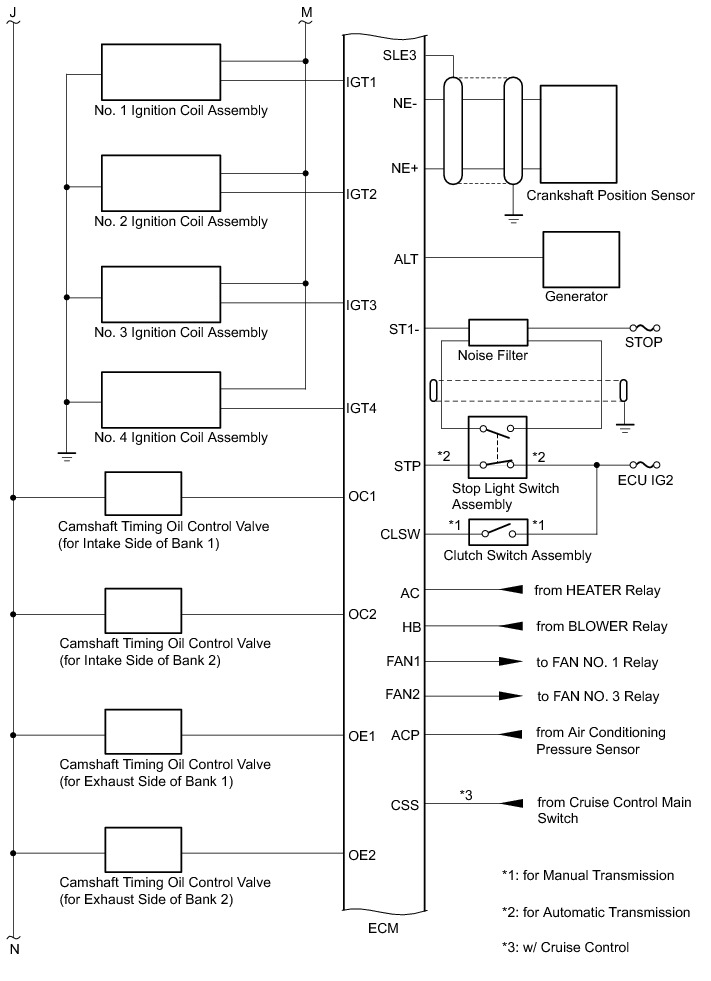

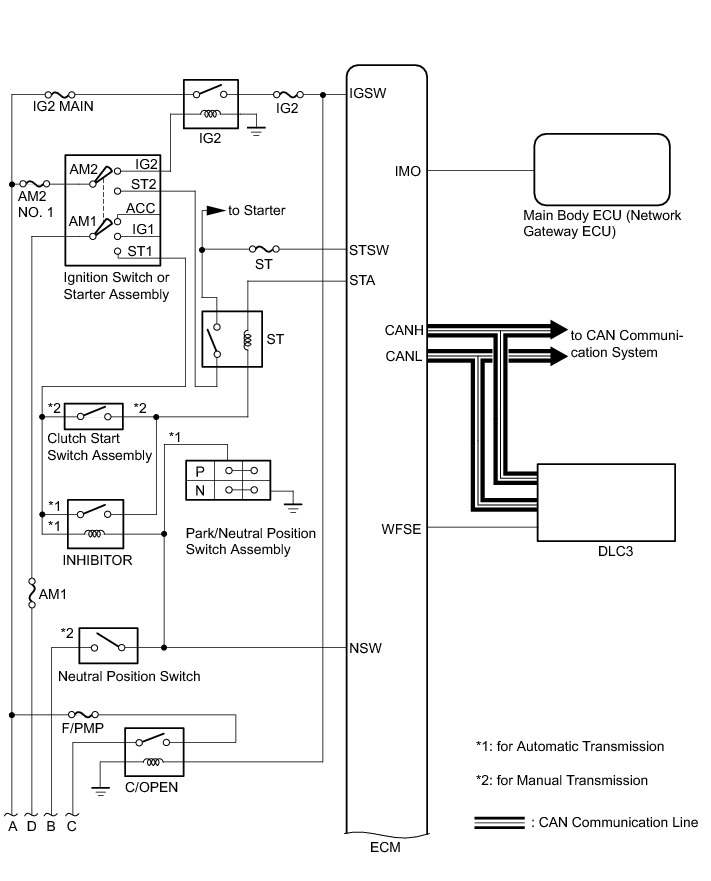

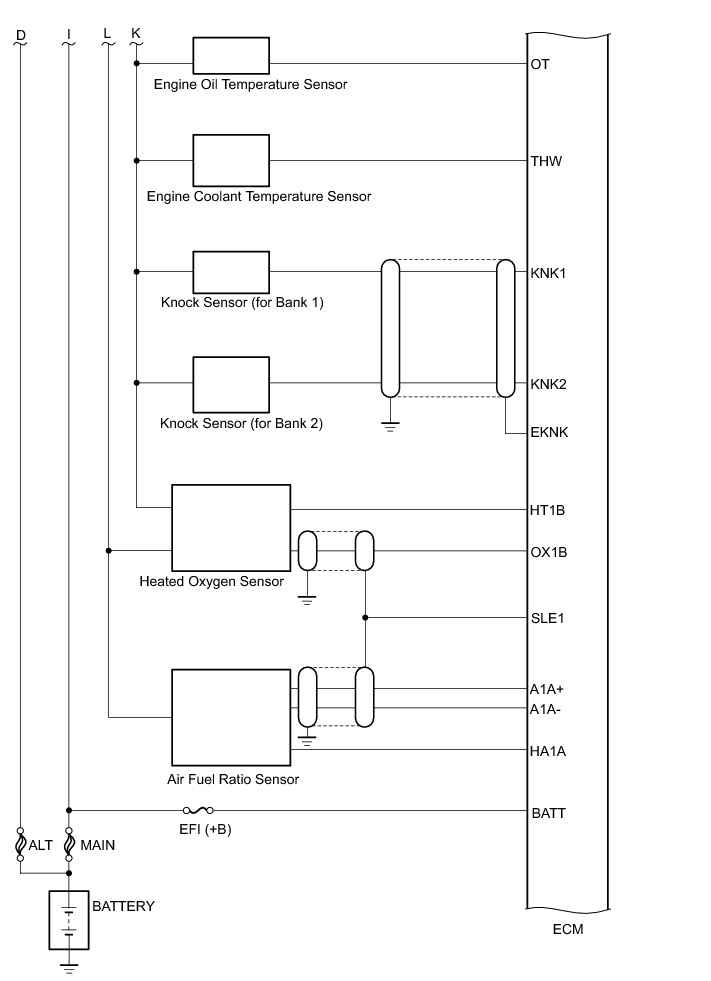

FA20 ENGINE CONTROL: SFI SYSTEM: SYSTEM DIAGRAM; 2013 MY FR-S [03/2012 -]
