POWER DISTRIBUTION: BATTERY CURRENT SENSOR: INSPECTION; 2013 MY FR-S [03/2012 -]

1. INSPECT BATTERY NEGATIVE TERMINAL









(a) Check the resistance of the battery negative terminal.

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





If the result is not as specified, replace the battery negative terminal.

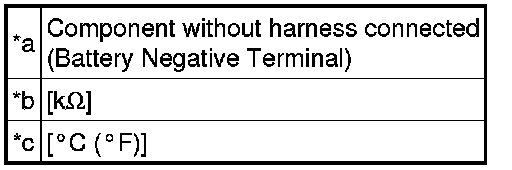

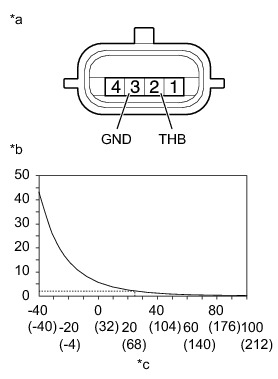

(b) Check the resistance of the battery negative terminal.









(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





If the result is not as specified, replace the battery negative terminal.

HINT
The "Condition" indicates the temperature in the vicinity of the sensor, not of the actual sensor itself.
