FA20 ENGINE CONTROL: SFI SYSTEM: DATA LIST / ACTIVE TEST; 2013 MY FR-S [03/2012 -] (Continued)

8. Air Fuel Ratio Control 1 (All Data)

Target Air-Fuel Ratio





9. Air Fuel Ratio Control 2 (Gas AF O2 Sensor)

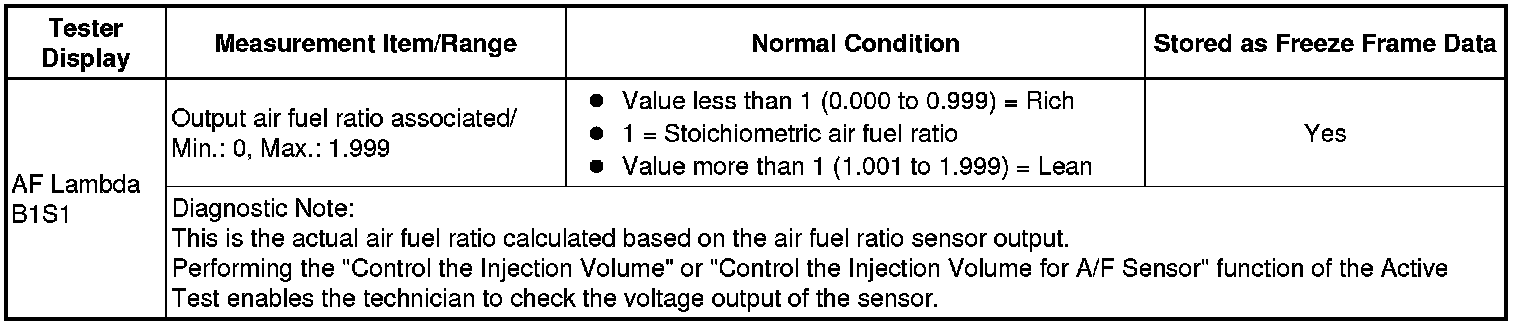

AF Lambda B1S1

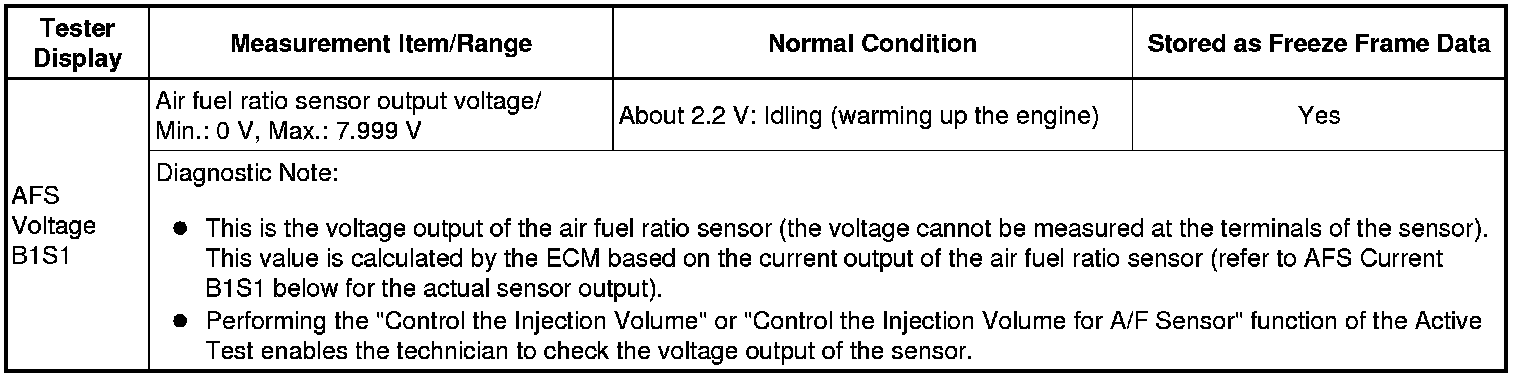

AFS Voltage B1S1





AFS Current B1S1

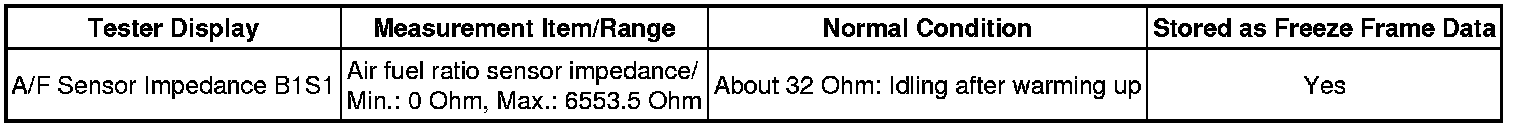

A/F Sensor Impedance B1S1

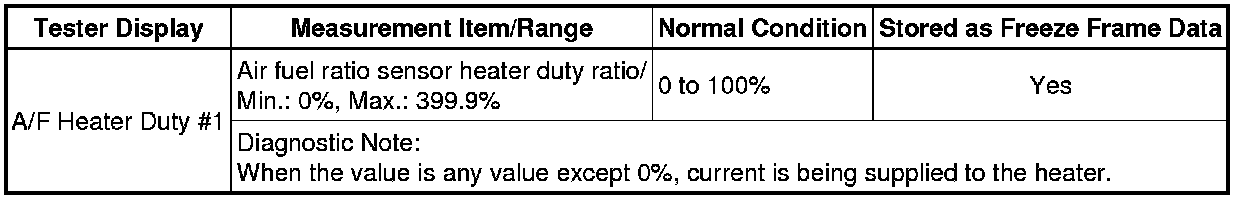

A/F Heater Duty #1

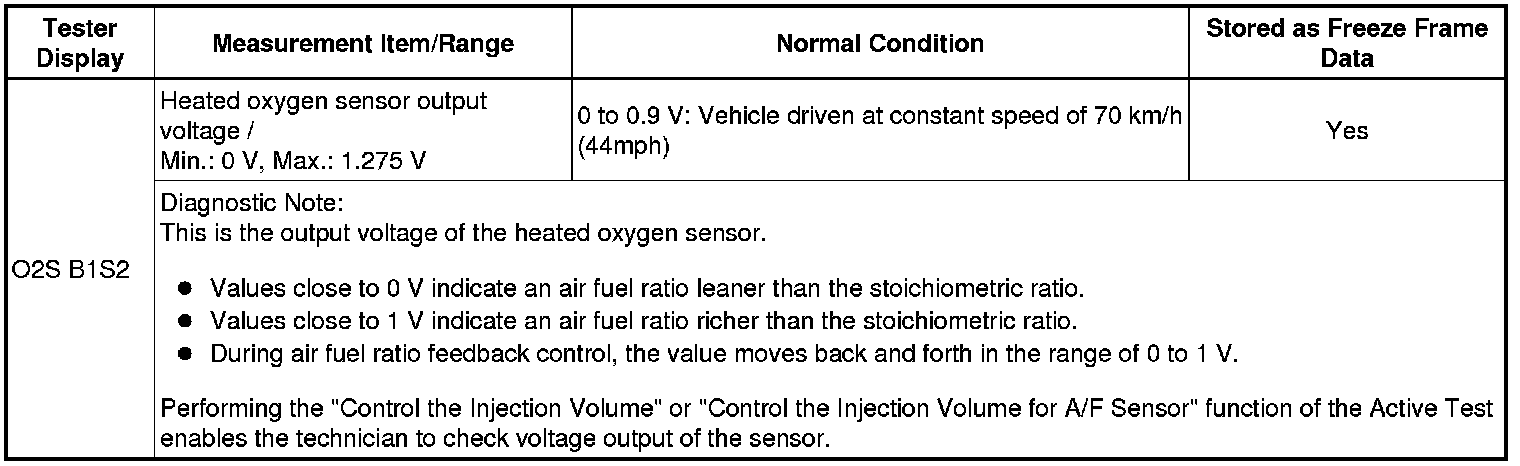

O2S B1S2

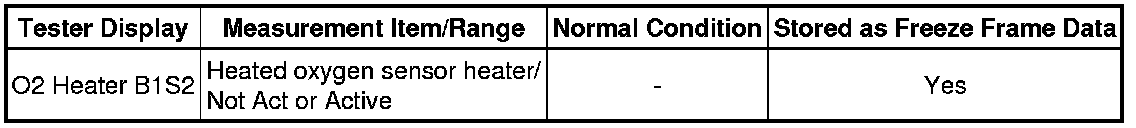

O2 Heater B1S2

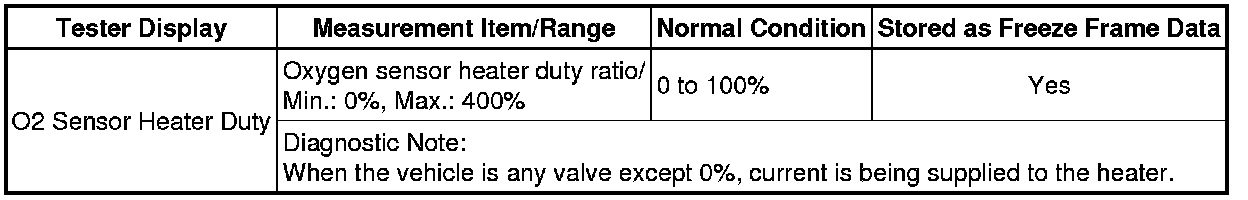

O2 Sensor Heater Duty

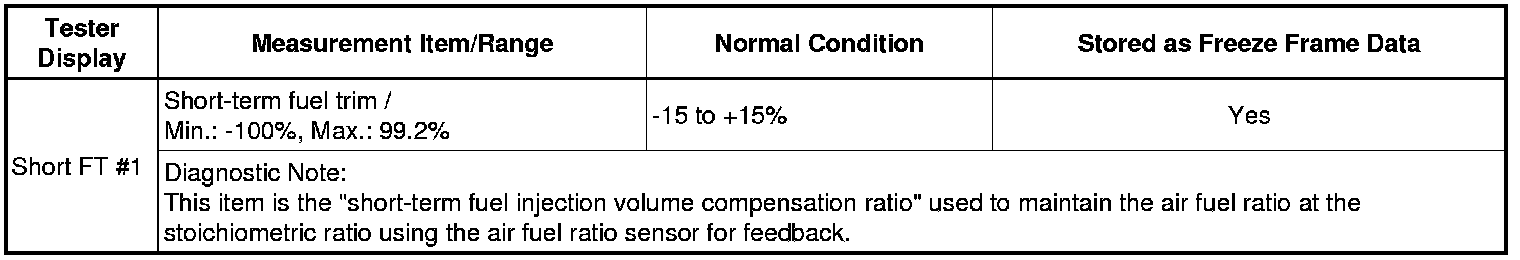

Short FT #1

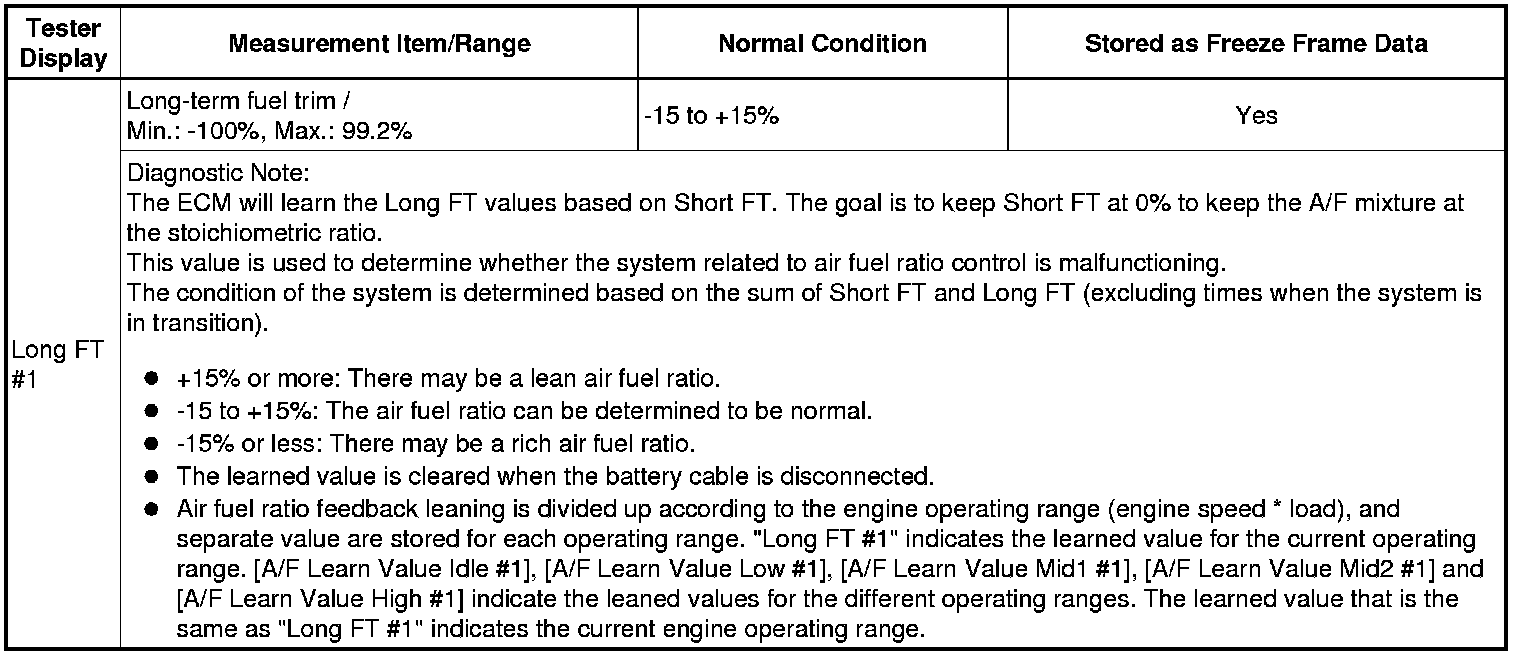

Long FT #1

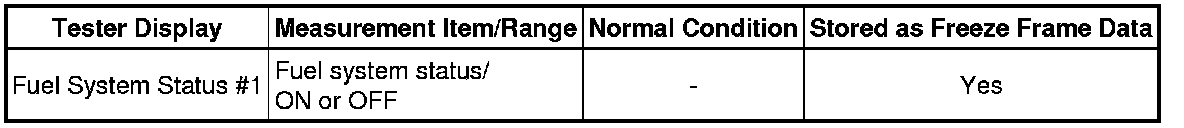

Fuel System Status #1





10. Ignition System (Ignition)

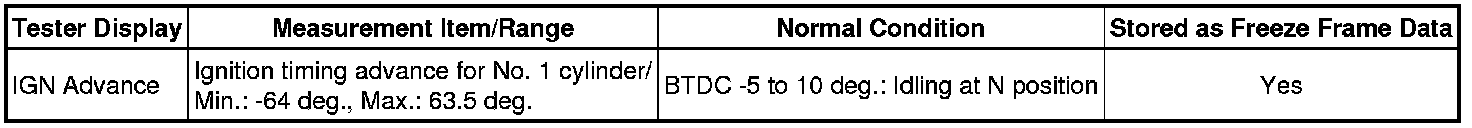

IGN Advance

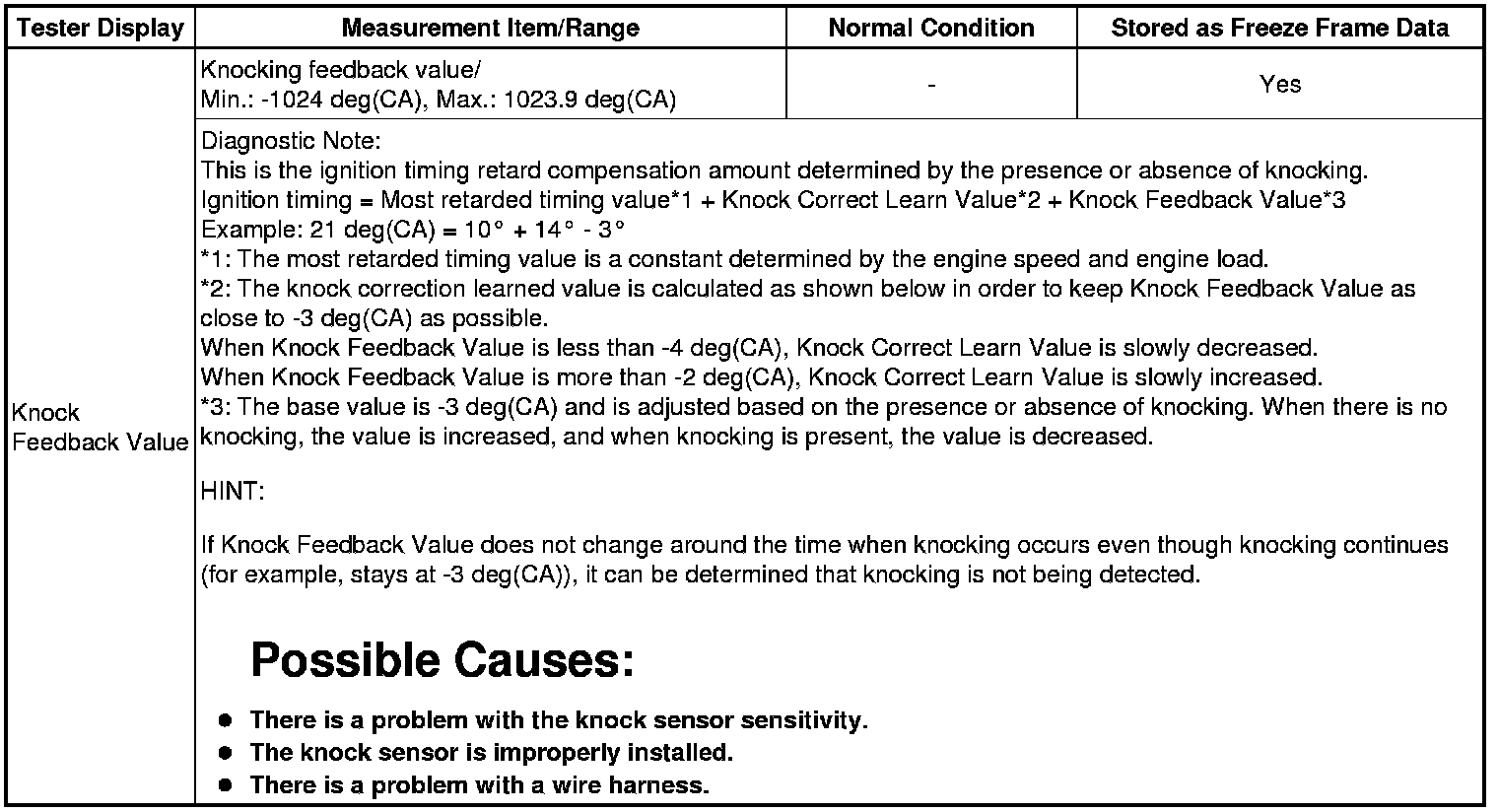

Knock Feedback Value








Knock Correct Learn Value

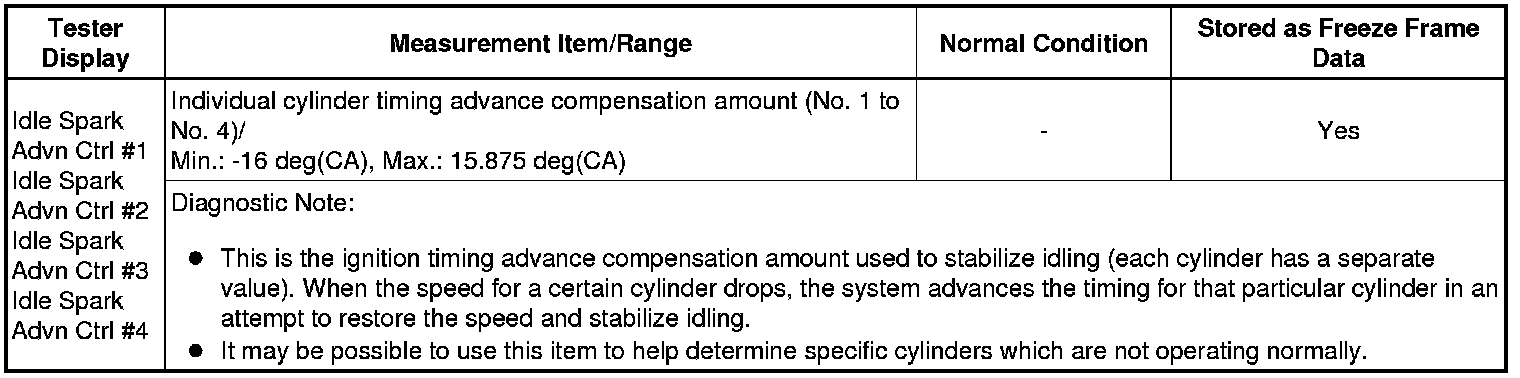

Idle Spark Advn Ctrl #1 to #4





11. VVT Control 1 (All Data)

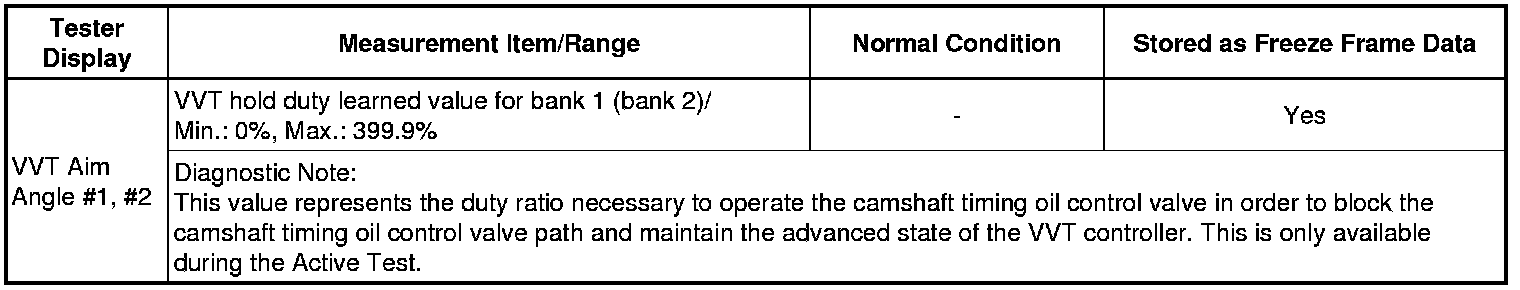

VVT Aim Angle #1, #2





VVT Change Angle #1, #2

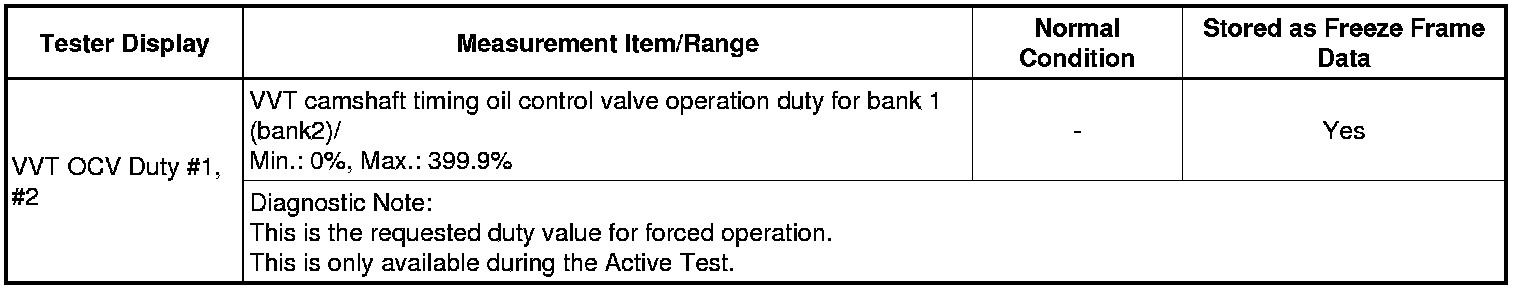

VVT OCV Duty #1, #2

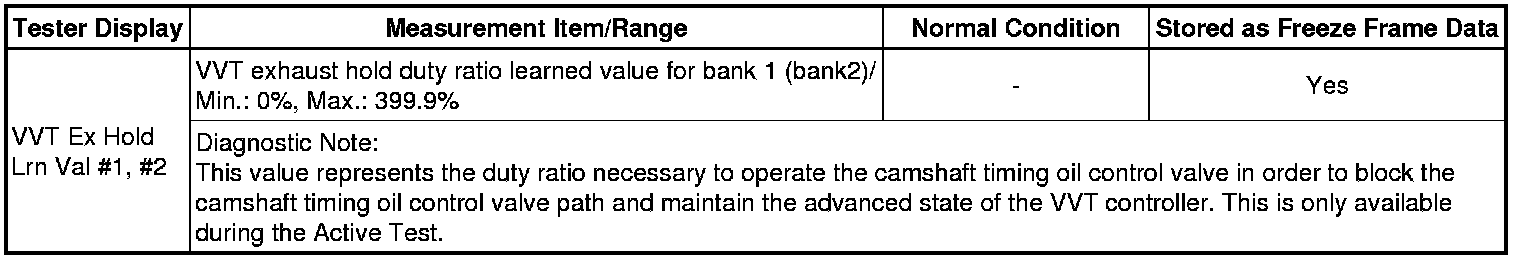

VVT Ex Hold Lrn Val #1, #2

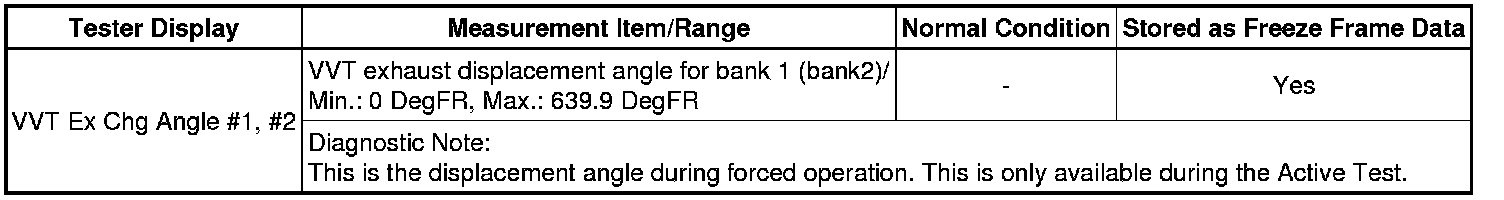

VVT Ex Chg Angle #1, #2





VVT Ex OCV Duty #1, #2





Target VVT Angle #1, #2

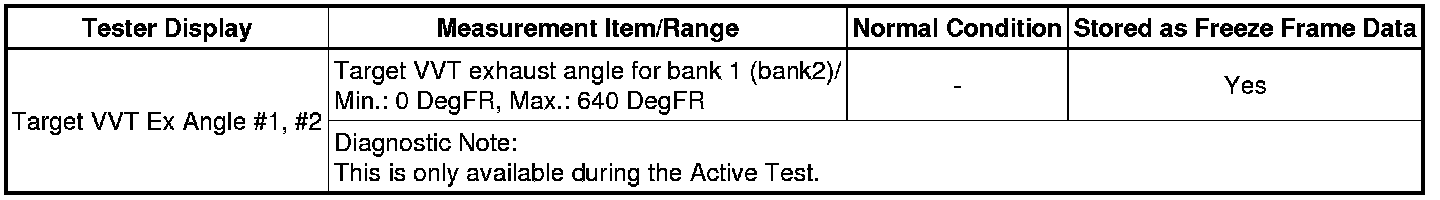

Target VVT Ex Angle #1, #2





VVT OCV Current #1, #2

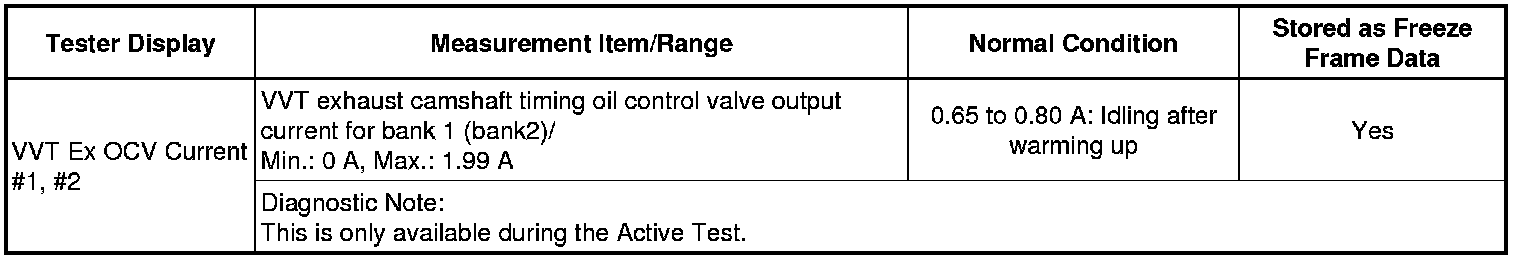

VVT Ex OCV Current #1, #2





12. VN Turbo

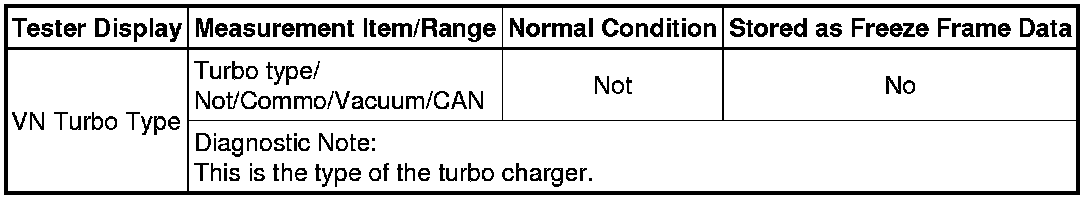

VN Turbo Type





13. Catalyst

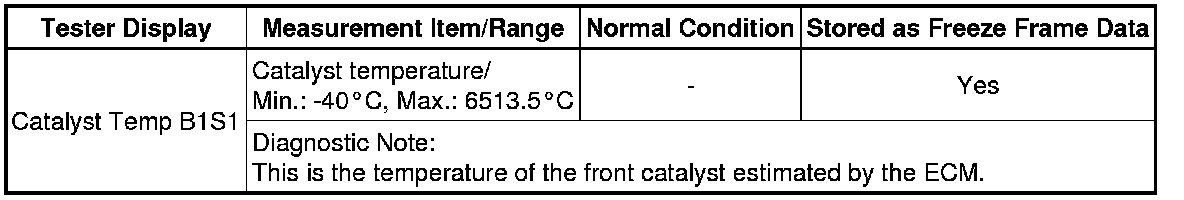

Catalyst Temp B1S1





14. Various Vehicle Conditions 2 (All Data)

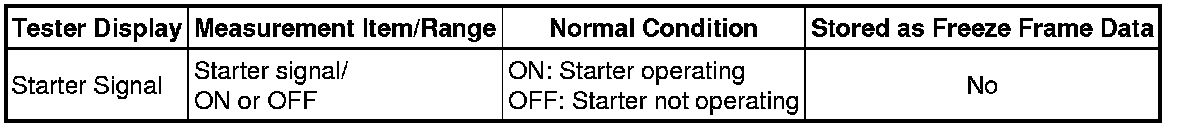

Starter Signal





Starter Control





Starter Cut Relay

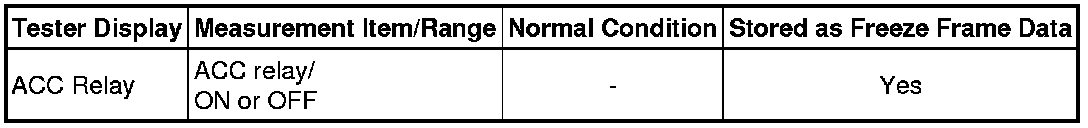

ACC Relay

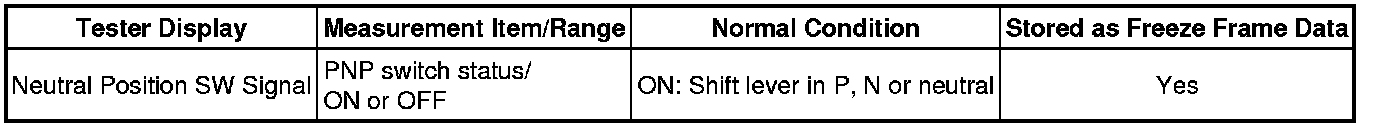

Neutral Position SW Signal

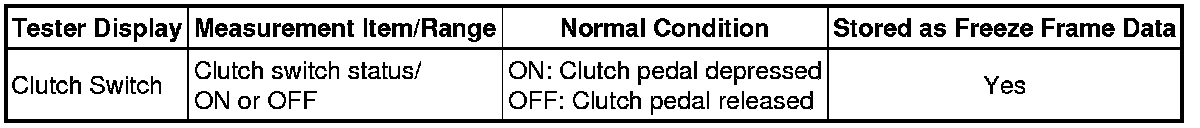

Clutch Switch

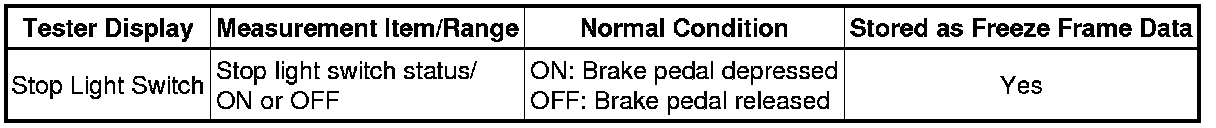

Stop Light Switch

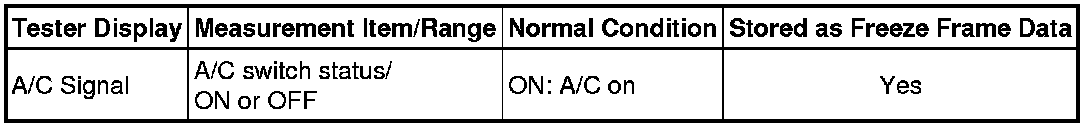

A/C Signal

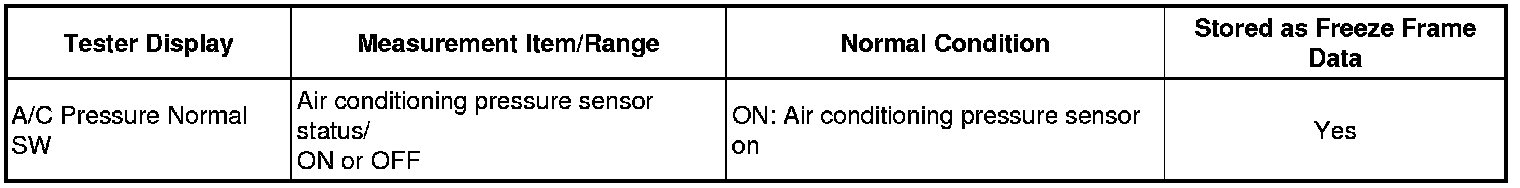

A/C Pressure Normal SW

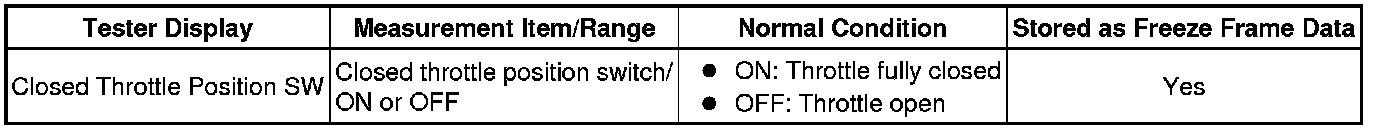

Closed Throttle Position SW

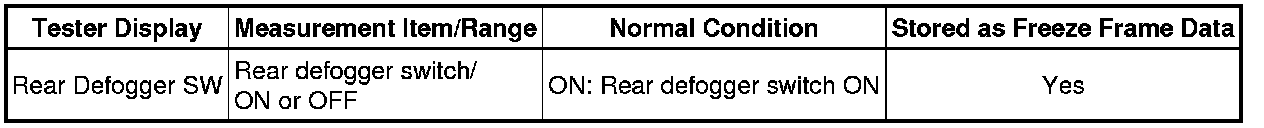

Rear Defogger SW

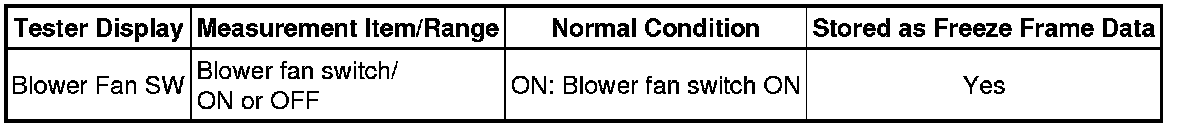

Blower Fan SW

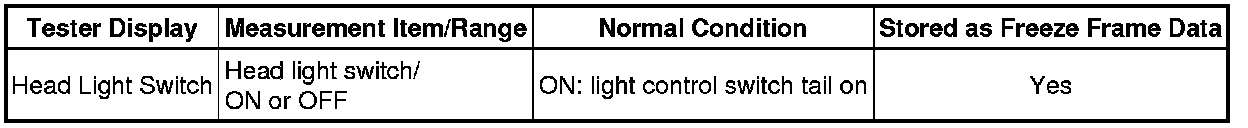

Head Light Switch

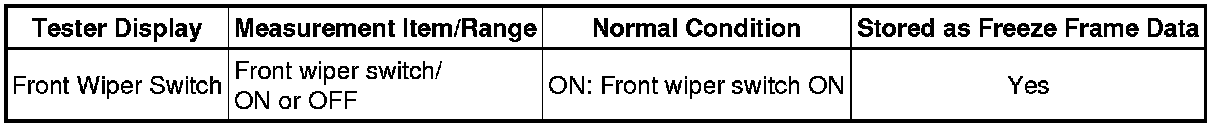

Front Wiper Switch

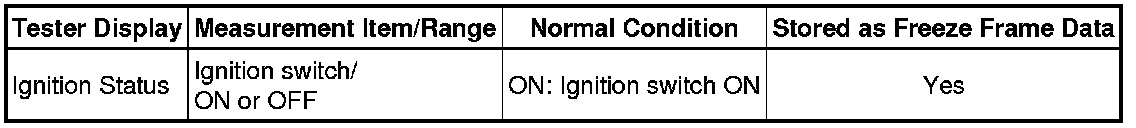

Ignition Status

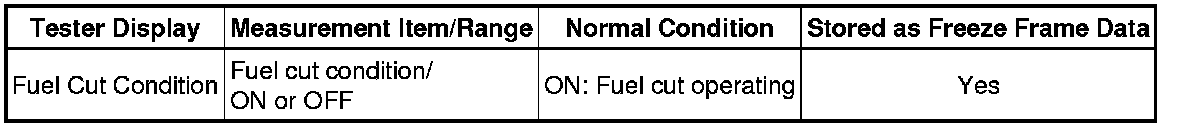

Fuel Cut Condition
