Part 3
FA20 ENGINE CONTROL: SFI SYSTEM: DATA LIST / ACTIVE TEST; 2013 MY FR-S [03/2012 -] (Continued)
15. Check Mode

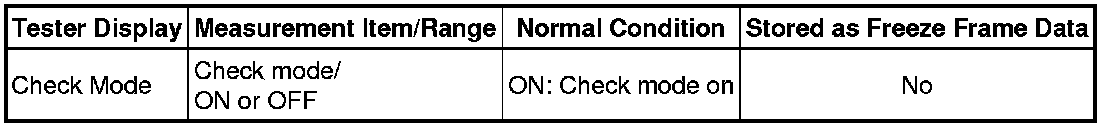

Check Mode

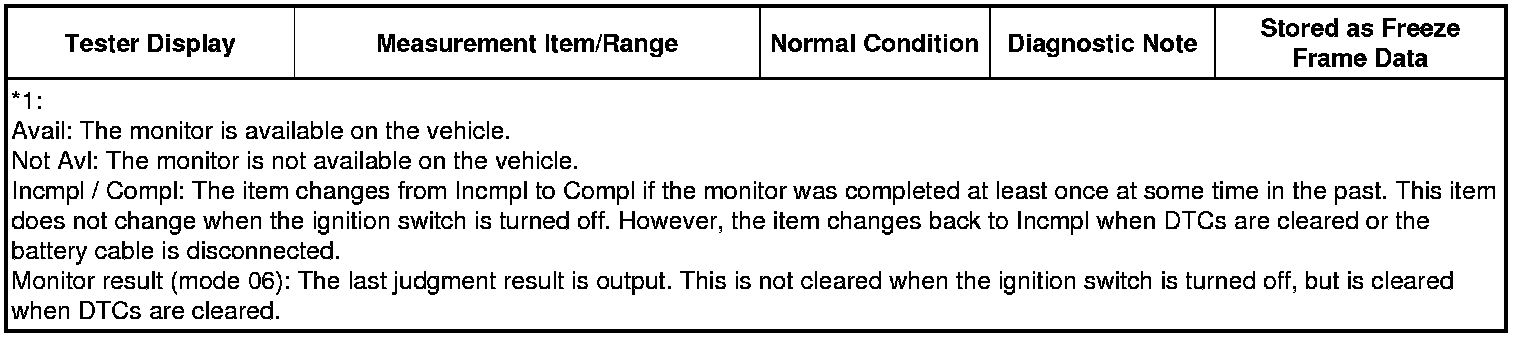

16. Test Result

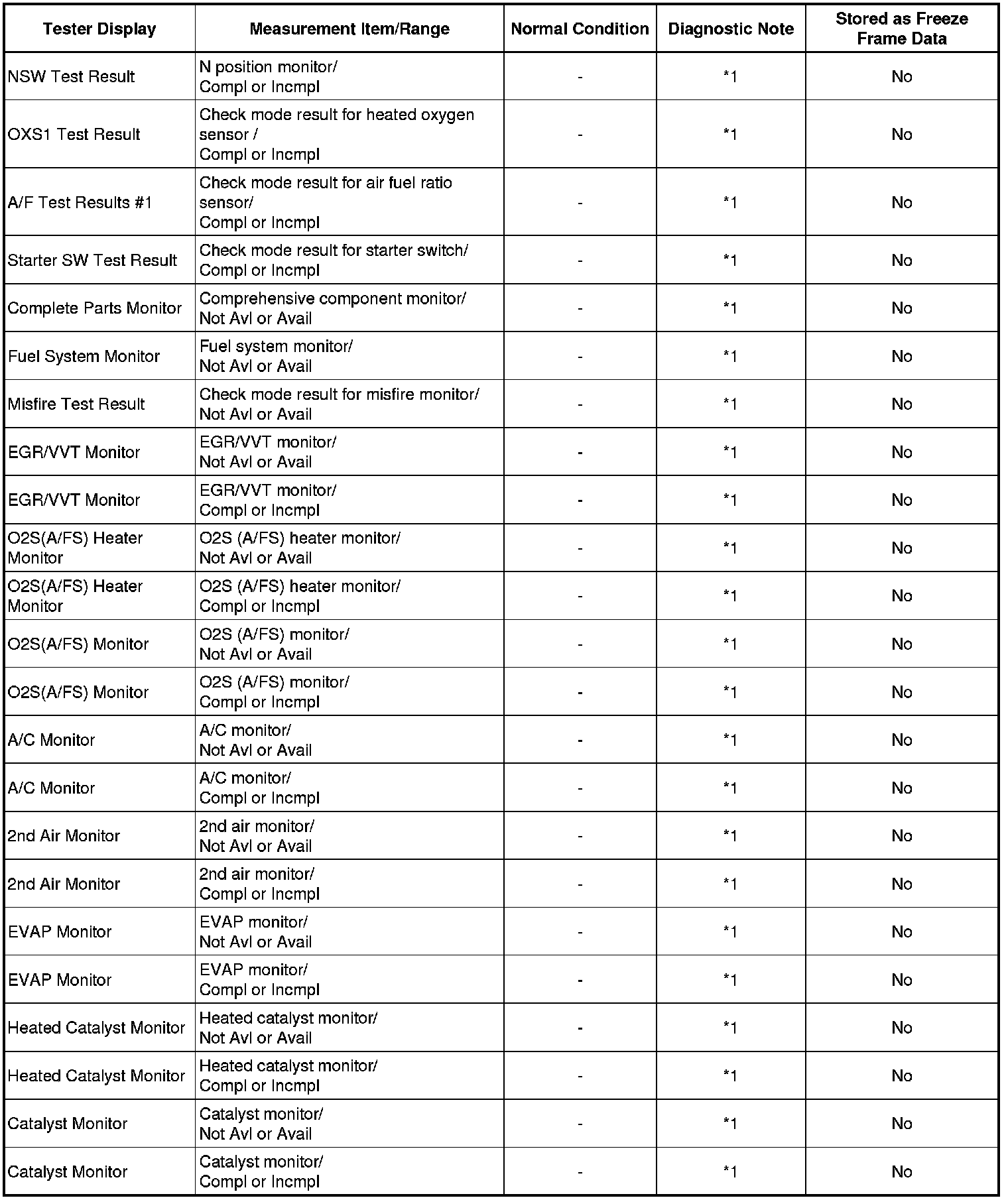

Monitor Information 1

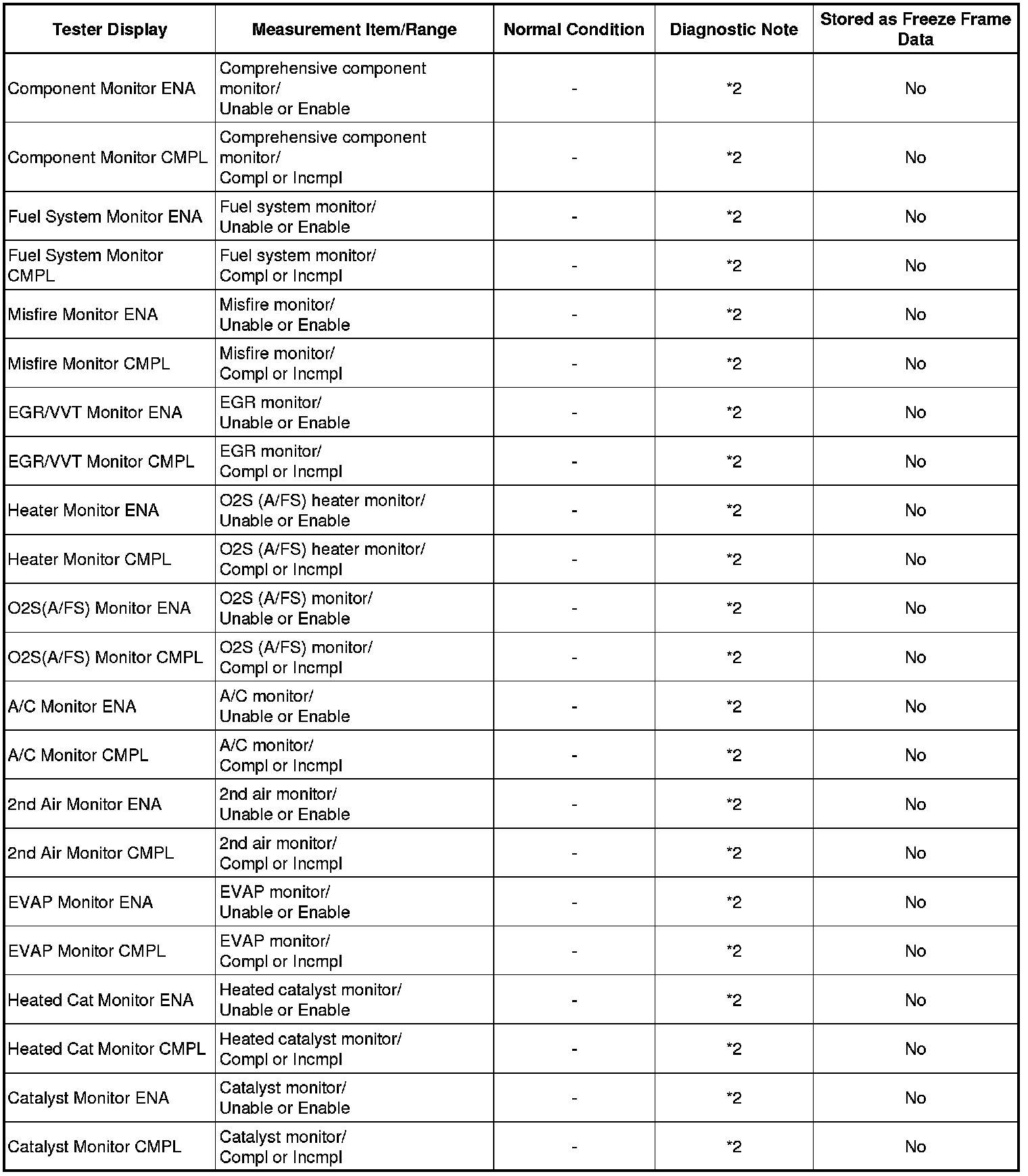

Monitor Information 2
17. Various Vehicle Conditions 3

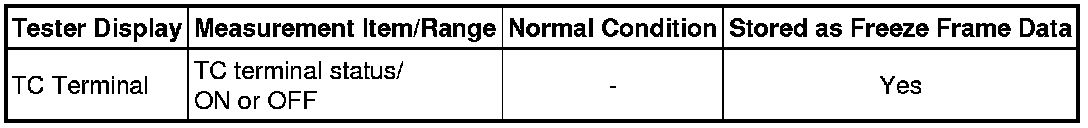

TC Terminal

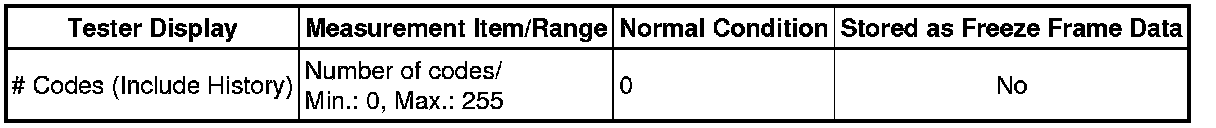

# Codes (Include History)

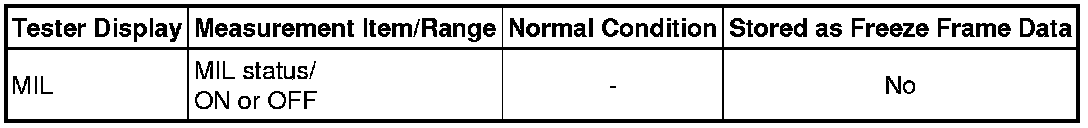

MIL

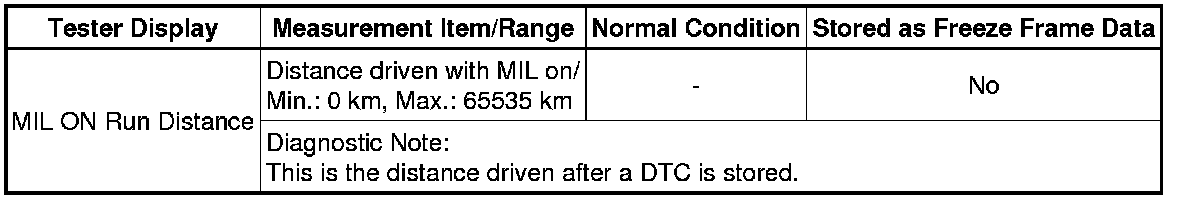

MIL ON Run Distance

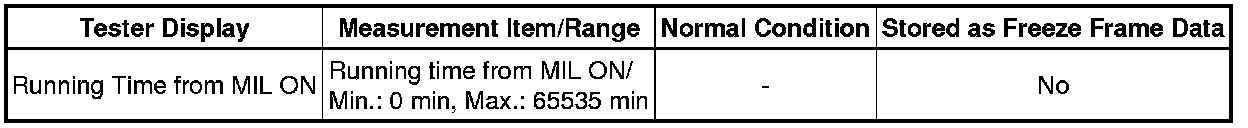

Running Time from MIL ON

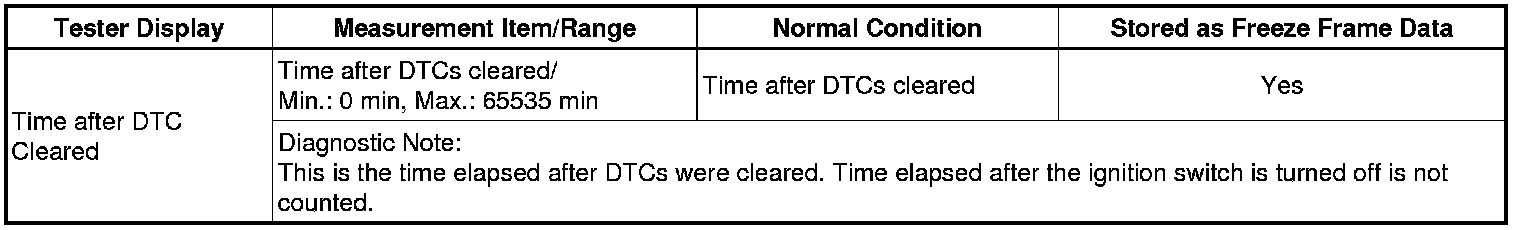

Time after DTC Cleared

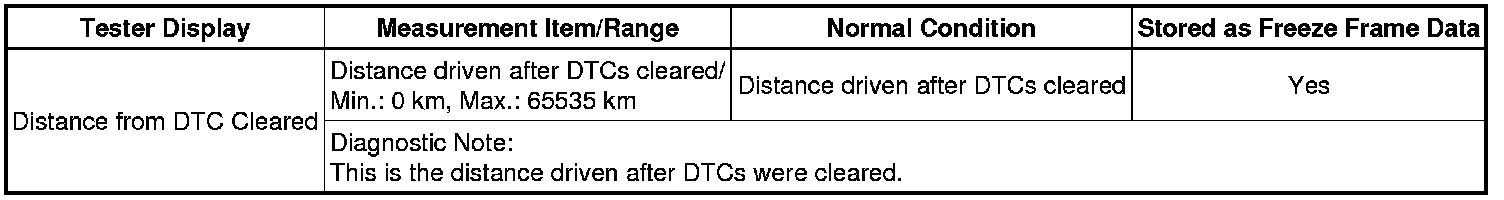

Distance from DTC Cleared

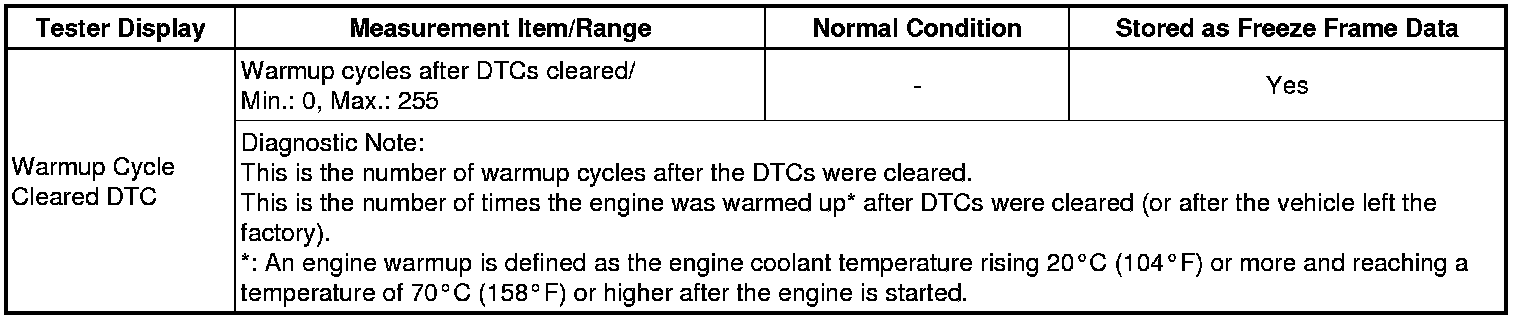

Warmup Cycle Cleared DTC
Dist Batt Cable Disconnect
IG OFF Elapsed Time
OBD Requirements
Number of Emission DTC

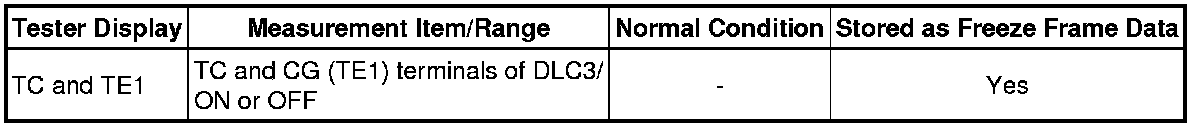

TC and TE1
18. Misfire

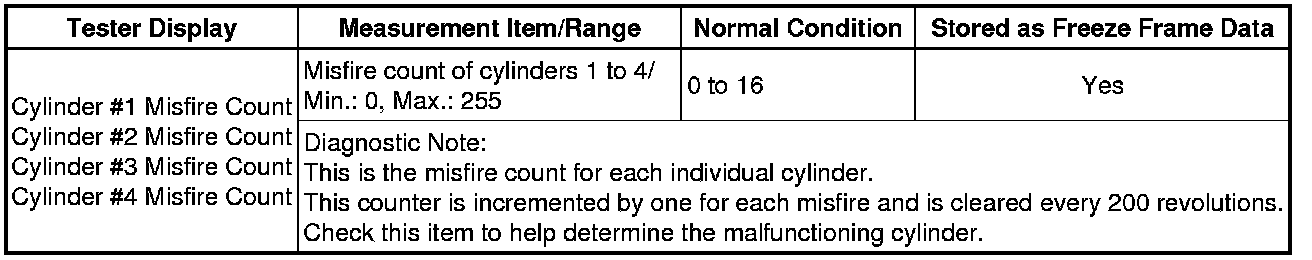

Cylinder #1 Misfire Count to Cylinder #4 Misfire Count
19. Various Vehicle Conditions 4
Engine Speed (Starter Off)

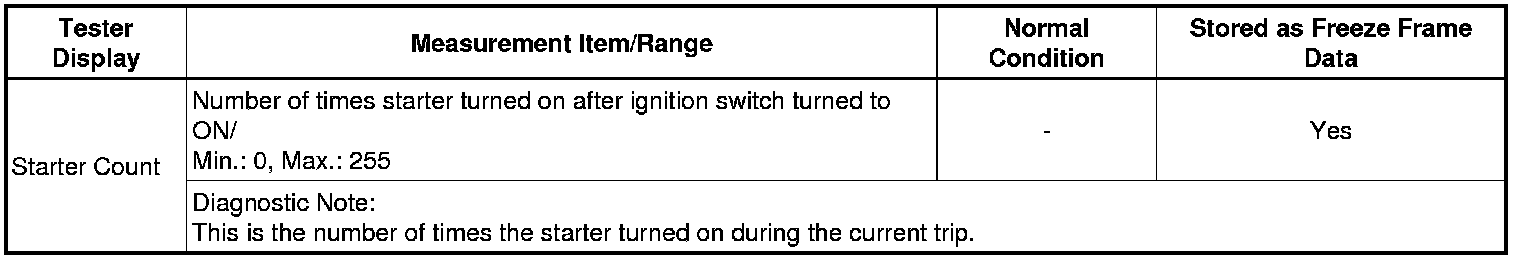

Starter Count

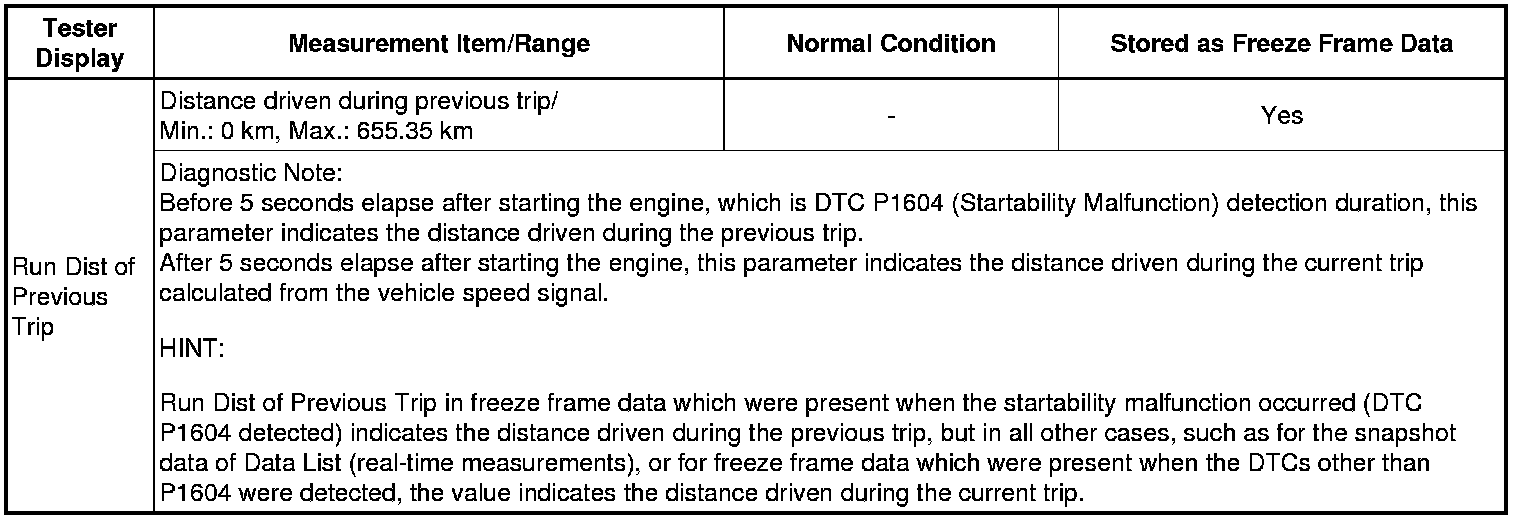

Run Dist of Previous Trip

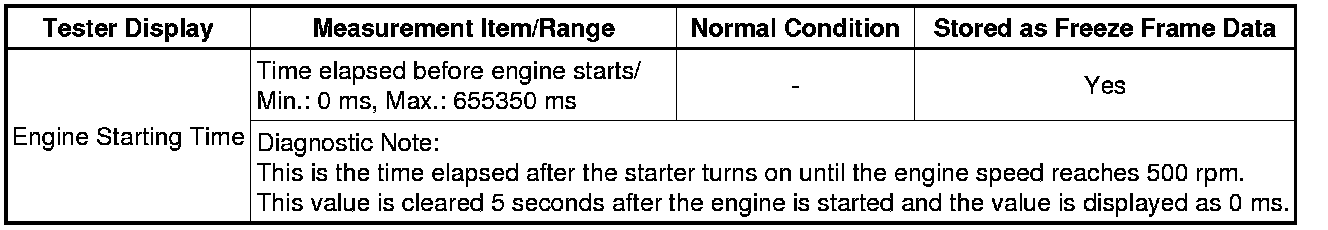

Engine Starting Time

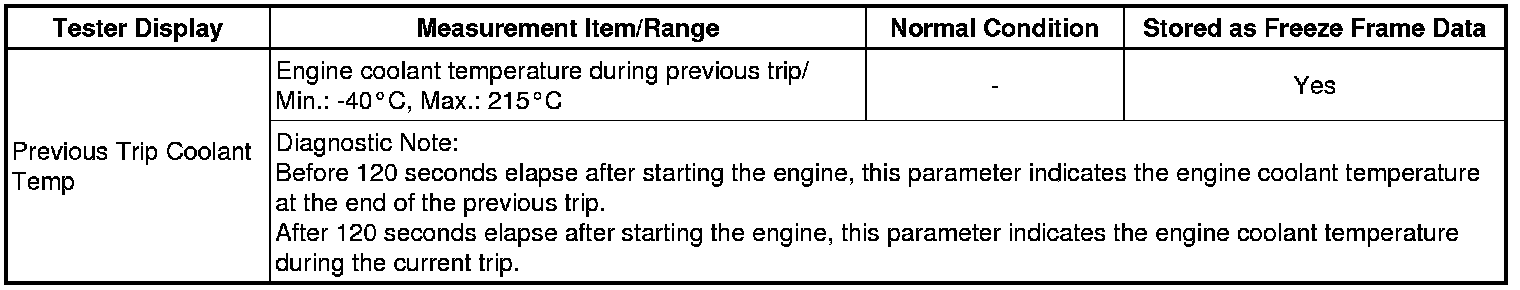

Previous Trip Coolant Temp

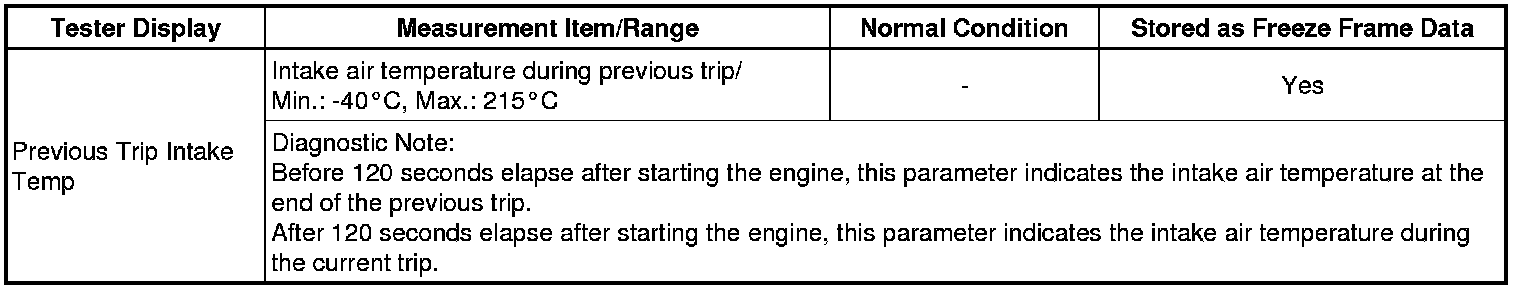

Previous Trip Intake Temp

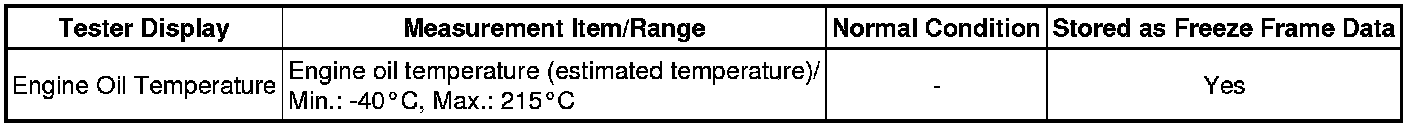

Engine Oil Temperature

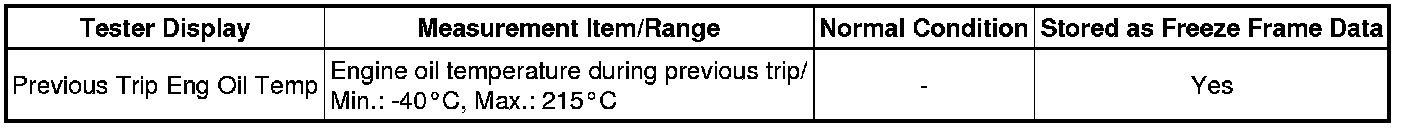

Previous Trip Eng Oil Temp

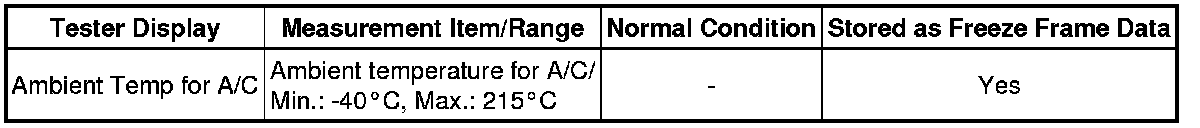

Ambient Temp for A/C

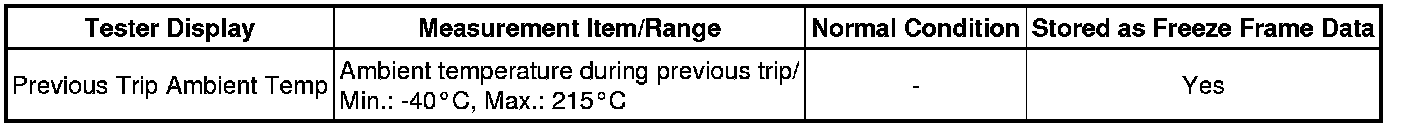

Previous Trip Ambient Temp

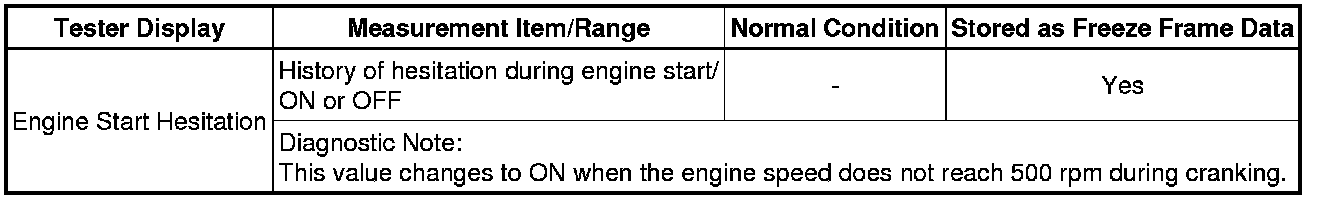

Engine Start Hesitation

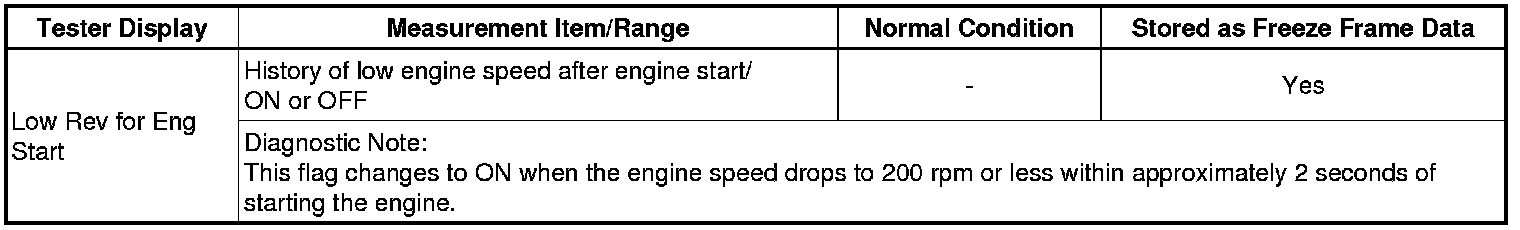

Low Rev for Eng Start

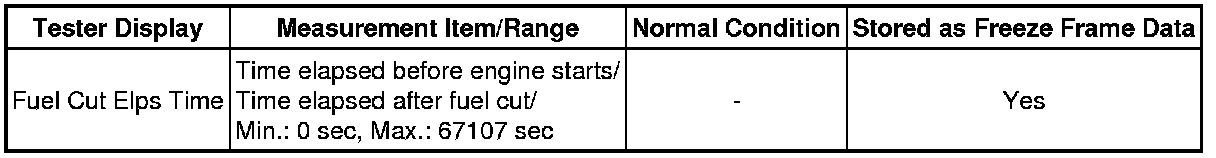

Fuel Cut Elps Time

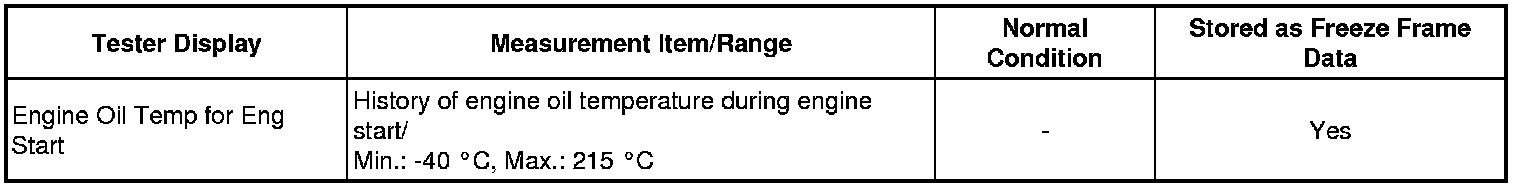

Engine Oil Temp for Eng Start

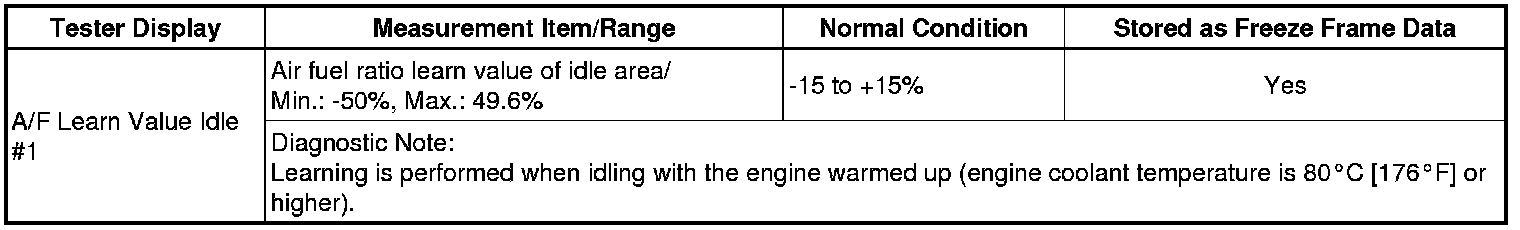

A/F Learn Value Idle #1

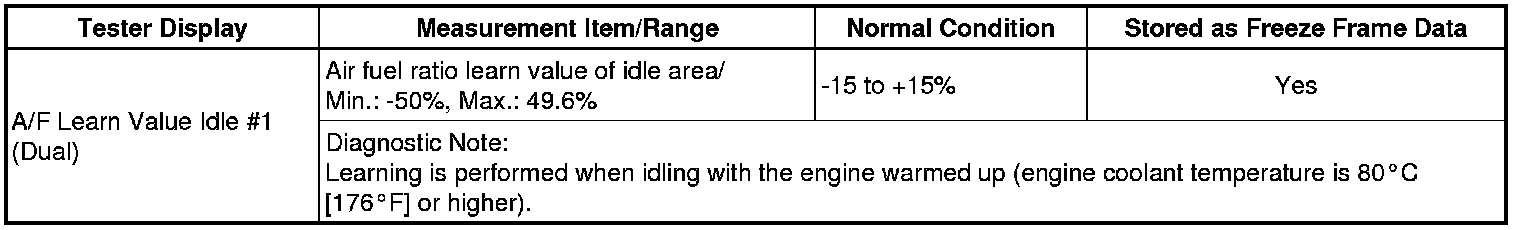

A/F Learn Value Idle #1 (Dual)

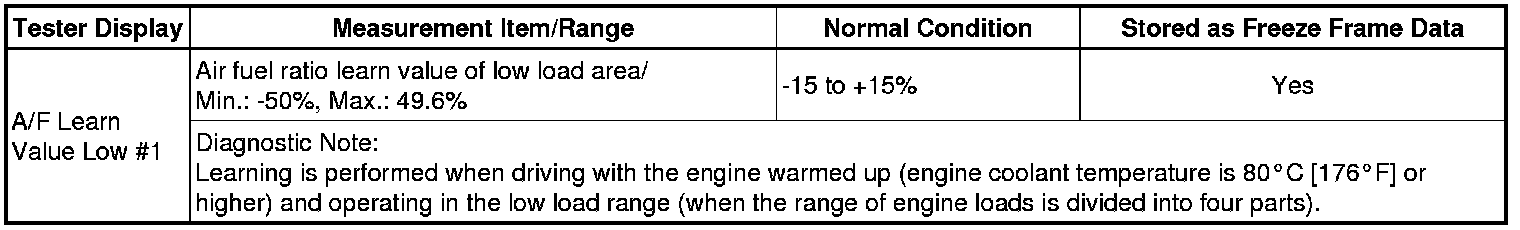

A/F Learn Value Low #1

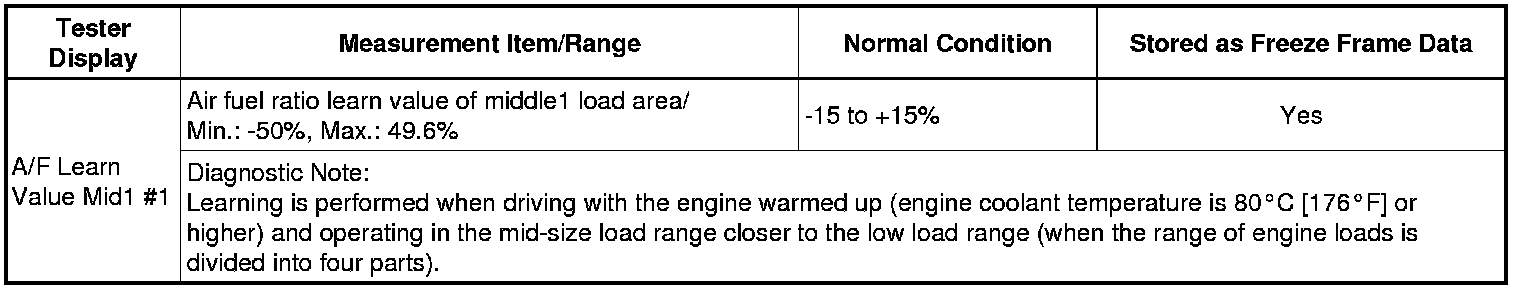

A/F Learn Value Mid1 #1

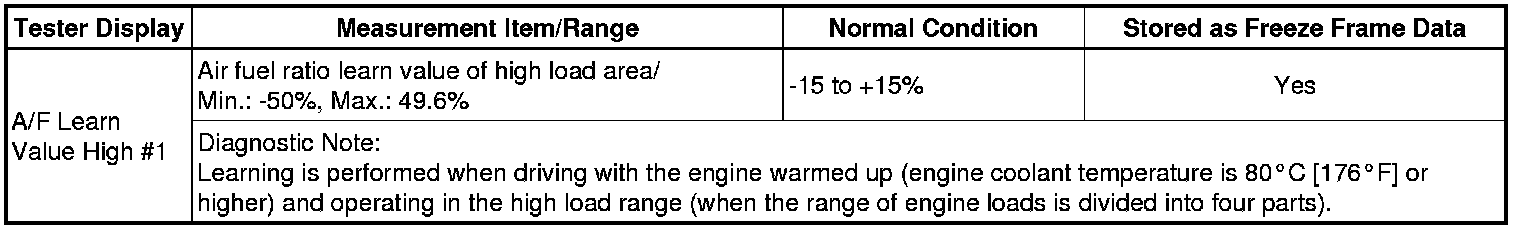

A/F Learn Value High #1

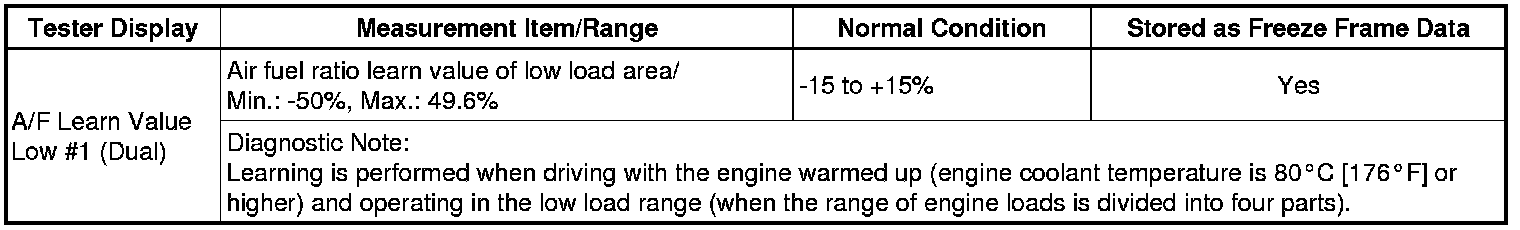

A/F Learn Value Low #1 (Dual)
A/F Learn Value Mid1 #1 (Dual)
A/F Learn Value High #1 (Dual)
A/C Magnetic Clutch Relay

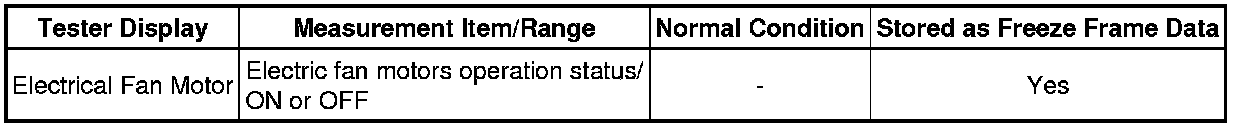

Electrical Fan Motor
Electric Cooling Fan Relay #1

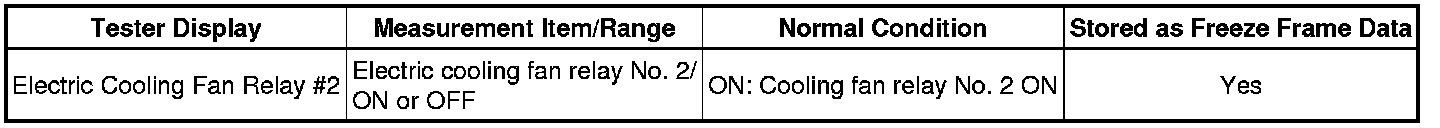

Electric Cooling Fan Relay #2

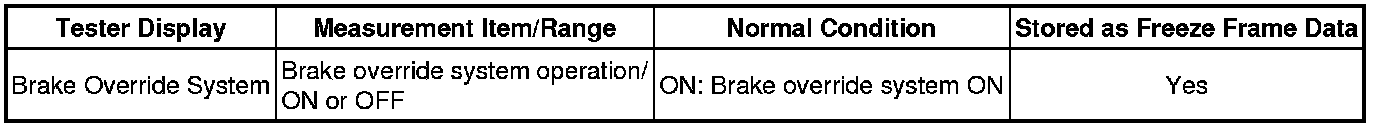

Brake Override System

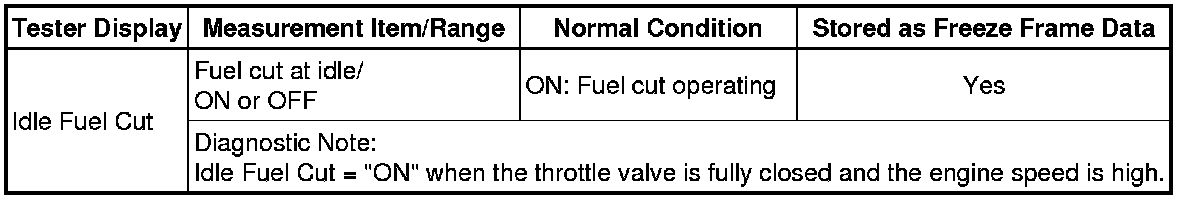

Idle Fuel Cut
FC TAU

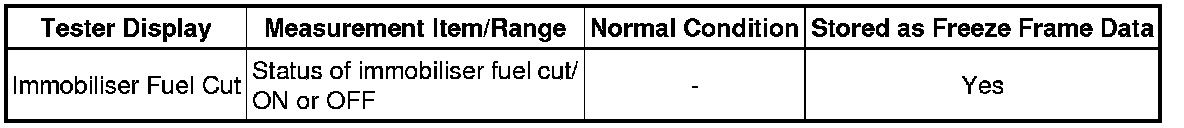

Immobiliser Fuel Cut
Immobiliser Fuel Cut History
Fuel Dilution Estimate
20. Compression

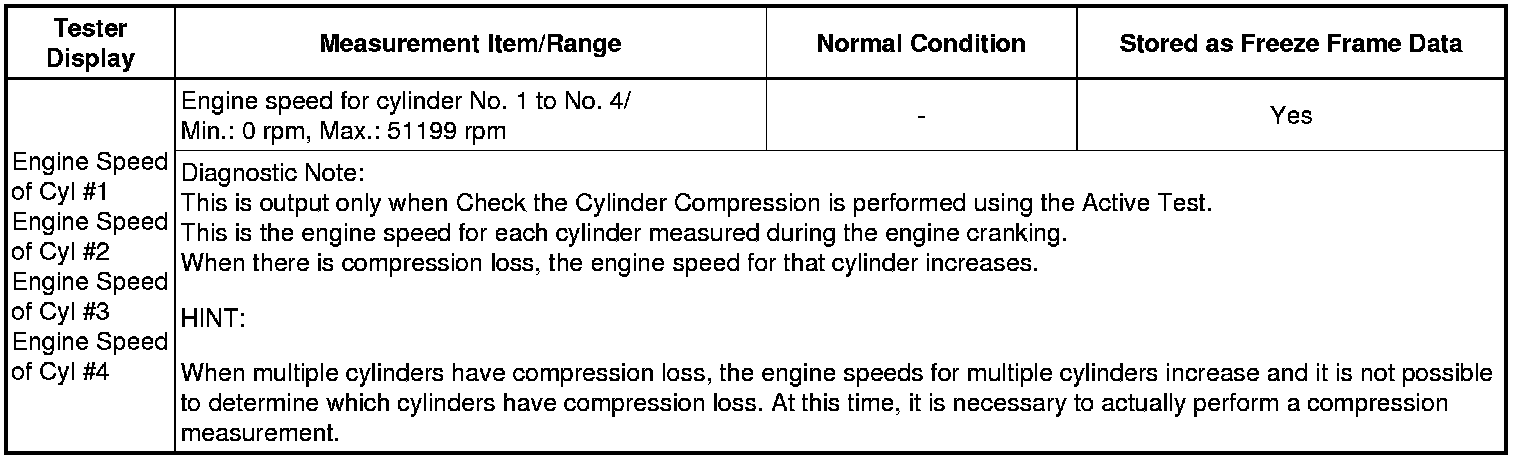

Engine Speed of Cyl #1 to #4

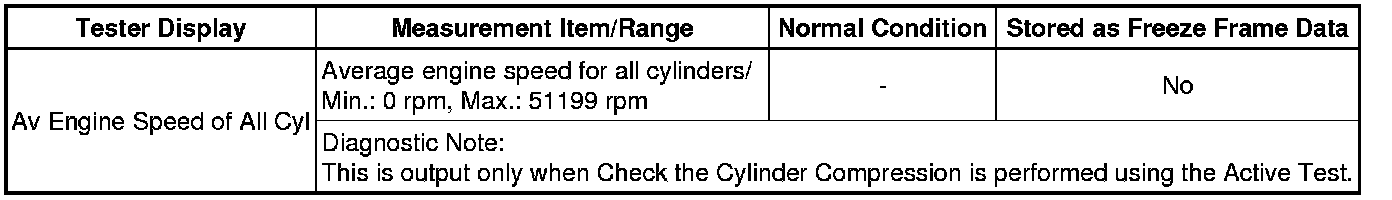

Av Engine Speed of All Cyl
21. Automatic Transmission
Refer to Automatic Transmission System Scan Tool Testing and Procedures.

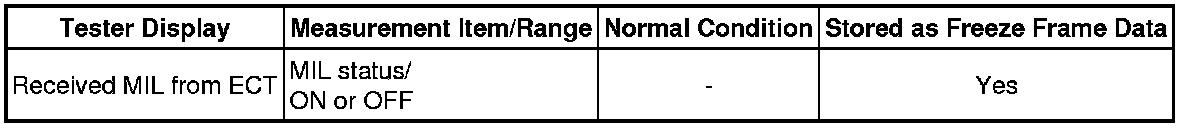

Received MIL from ECT

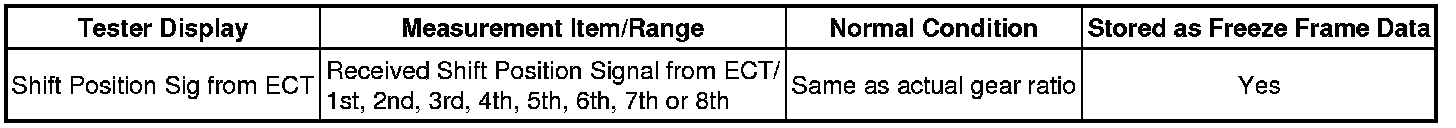

Shift Position Signal from ECT
SPD (NT)

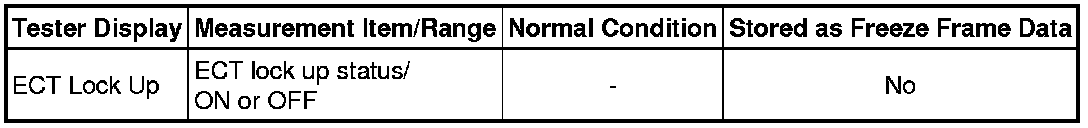

ECT Lock Up

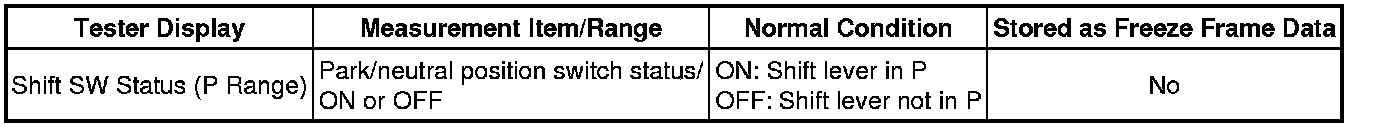

Shift SW Status (P Range)
Shift SW Status (R Range)
Shift SW Status (N Range)
Sports Mode Selection SW

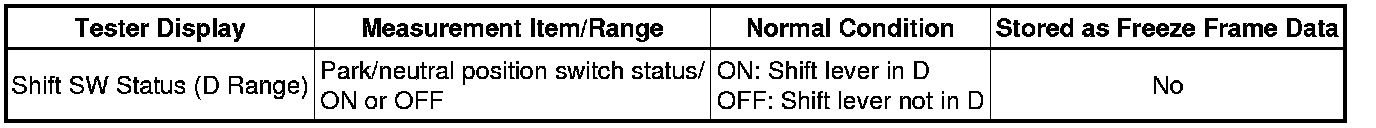

Shift SW Status (D Range)

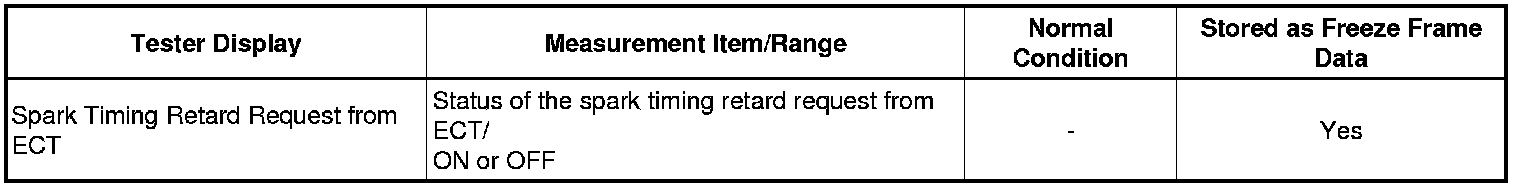

Spark Timing Retard Request from ECT

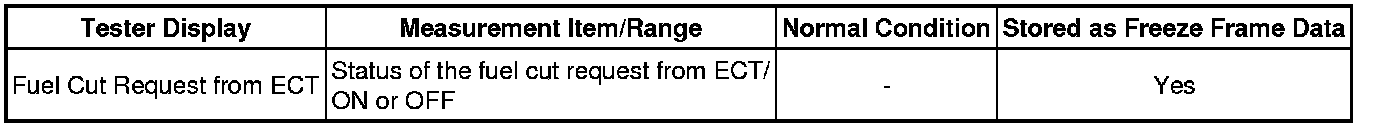

Fuel Cut Request from ECT

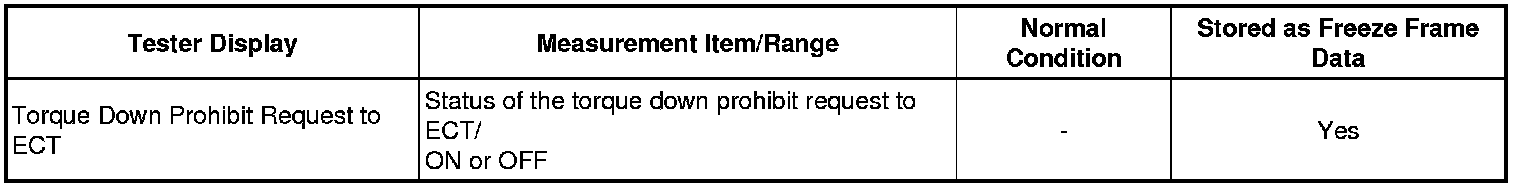

Torque Down Prohibit Request to ECT

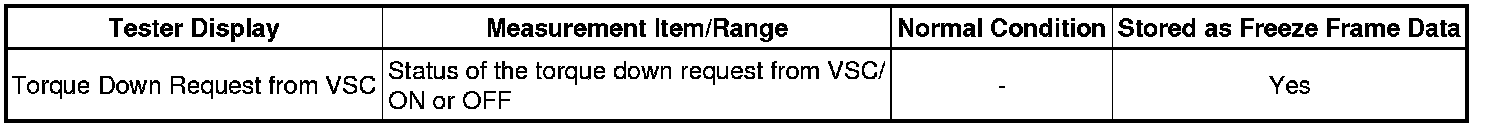

Torque Down Request from VSC

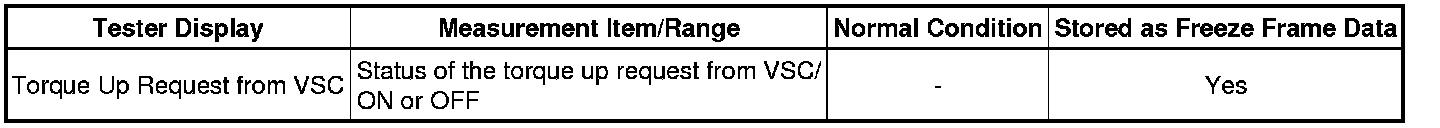

Torque Up Request from VSC
Torque Down Prohibit Request to VSC

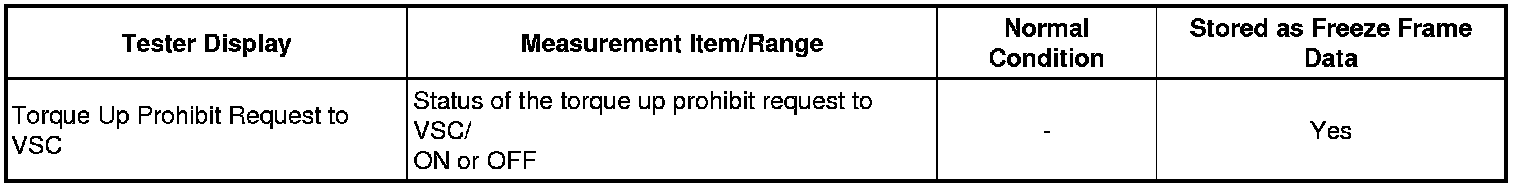

Torque Up Prohibit Request to VSC
