FA20 ENGINE CONTROL: SFI SYSTEM: DATA LIST / ACTIVE TEST; 2013 MY FR-S [03/2012 -] (Continued)

22. ACTIVE TEST

HINT
Using the Techstream to perform Active Tests allows relays, VSVs, actuators and other items to be operated without removing any parts. This non-intrusive functional inspection can be very useful because intermittent operation may be discovered before parts or wiring is disturbed. Performing Active Tests early in troubleshooting is one way to save diagnostic time. Data List information can be displayed while performing Active Tests.

(a) Warm up the engine.

(b) Turn the ignition switch off.

(c) Connect the Techstream to the DLC3.

(d) Turn the ignition switch to ON.

(e) Turn the Techstream on.

(f) Enter the following menus: Powertrain / Engine / Active Test.

(g) According to the display on the Techstream, perform the Active Test.

















NOTICE:

*1:

* If the display of the Data List item Catalyst OT MF F/C item is Not Avl, perform this Active Test with the vehicle stopped and the engine idling.
* If the display of the Data List item Catalyst OT MF F/C item is Avail, perform this Active Test as described below.
(1) Stop the engine, turn the ignition switch to ON.
(2) Enter the Control the Select Cylinder Fuel Cut.
(3) Select the cylinder for fuel cut (cylinder #1 to #4) and turn the Active Test ON (press the RIGHT or LEFT button).
(4) Start the engine.

HINT
*2: When cranking the engine, each cylinder measures the engine speed. In this Active Test, the fuel and ignition of all cylinders is cut. The engine must then be cranked for approximately 10 seconds. At this time, the speed of each cylinder is measured. If the speed of one cylinder is more than the other cylinders, it can be determined that the compression pressure of that cylinder is lower than the other cylinders.

(1) Warm up the engine.

(2) Turn the ignition switch off.

(3) Connect the Techstream to the DLC3.

(4) Turn the ignition switch to ON.

(5) Turn the Techstream on.

(6) Enter the following menus: Powertrain / Engine / Active Test / Check the Cylinder Compression.

HINT
To display the entire Data List, press the pull down menu button next to Primary. Then select Compression.

(7) Push the snapshot button to turn the snapshot function on.

HINT
Using the snapshot function, data can be recorded during the Active Test.

(8) While the engine is not running, press the RIGHT or LEFT button to change Check the Cylinder Compression to ON.

HINT
After performing the above procedure, Check the Cylinder Compression will start. Fuel injection for all cylinders is prohibited and each cylinder engine speed measurement enters standby mode.

(9) Crank the engine for about 10 seconds.

HINT
Continue to crank the engine until the values change from the default value (0 rpm).

(10) Monitor the engine speed (Engine Speed of Cyl #1 to #4) displayed on the Techstream.

HINT
At first, the Techstream displays extremely high cylinder engine speed values. After approximately 10 seconds of engine cranking, each cylinder engine speed measurement will change to the actual engine speed.

NOTICE:
* Do not crank the engine continuously for 20 seconds or more.
* If it is necessary to crank the engine again after Check the Cylinder Compression has been changed to ON and the engine has been cranked once, press Exit to return to the Active Test menu screen. Then change Check the Cylinder Compression to ON and crank the engine.
* Use a fully-charged battery.

23. SYSTEM CHECK

HINT
Performing a System Check enables the system, which consists of multiple actuators, to be operated without removing any parts. In addition, it can show whether or not any DTCs are stored, and can detect potential malfunctions in the system. The System Check can be performed with the Techstream.

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine / Utility.

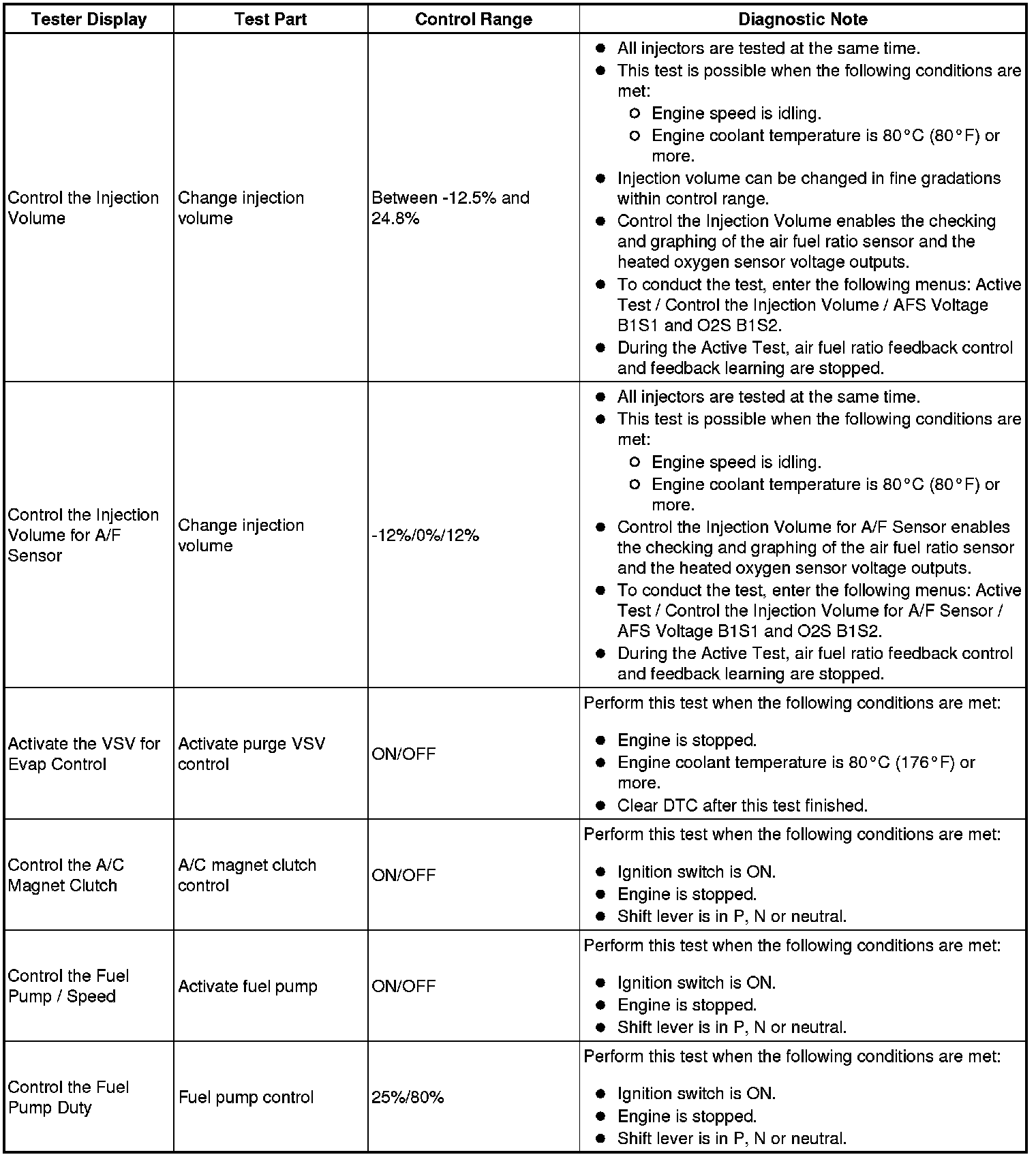

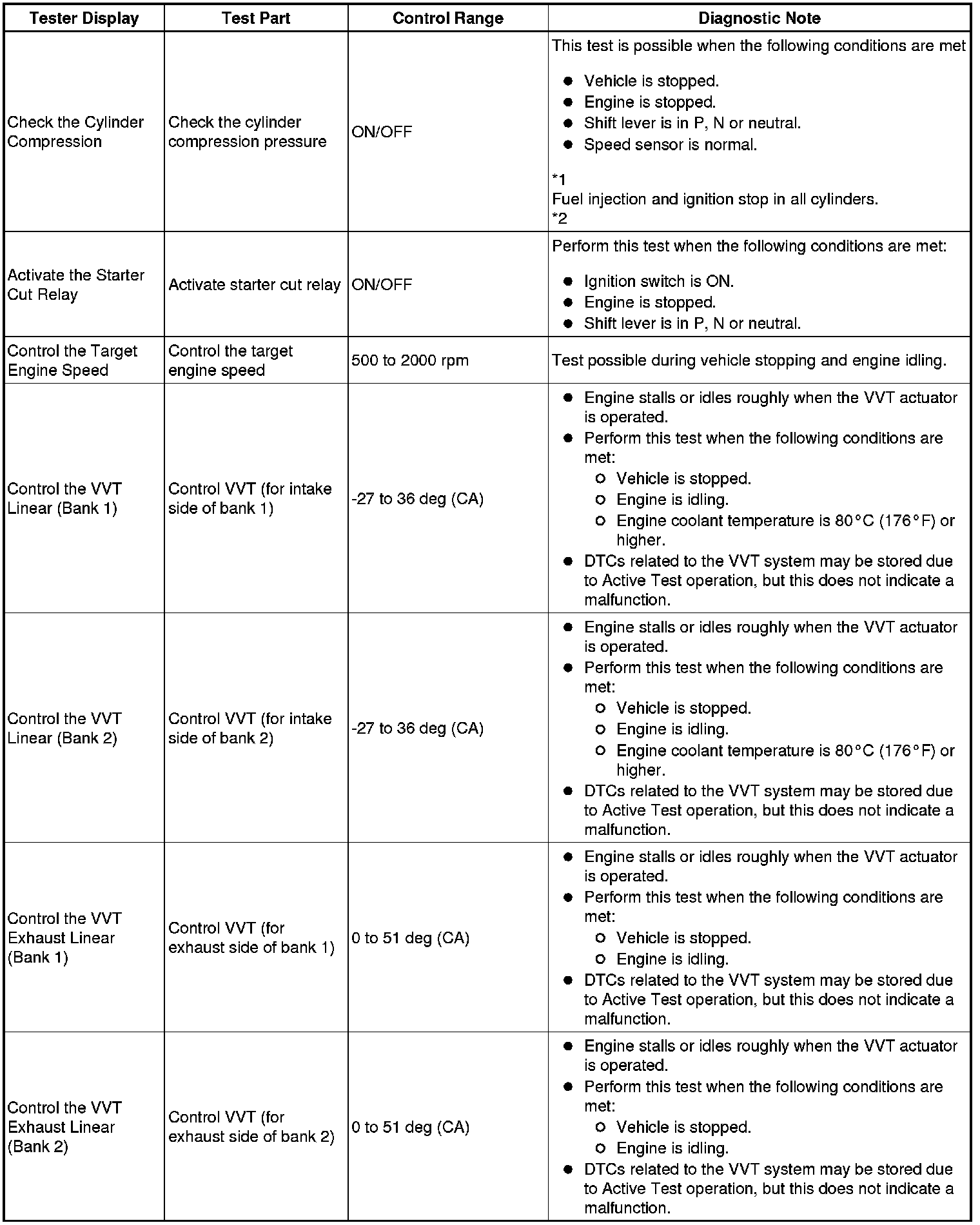

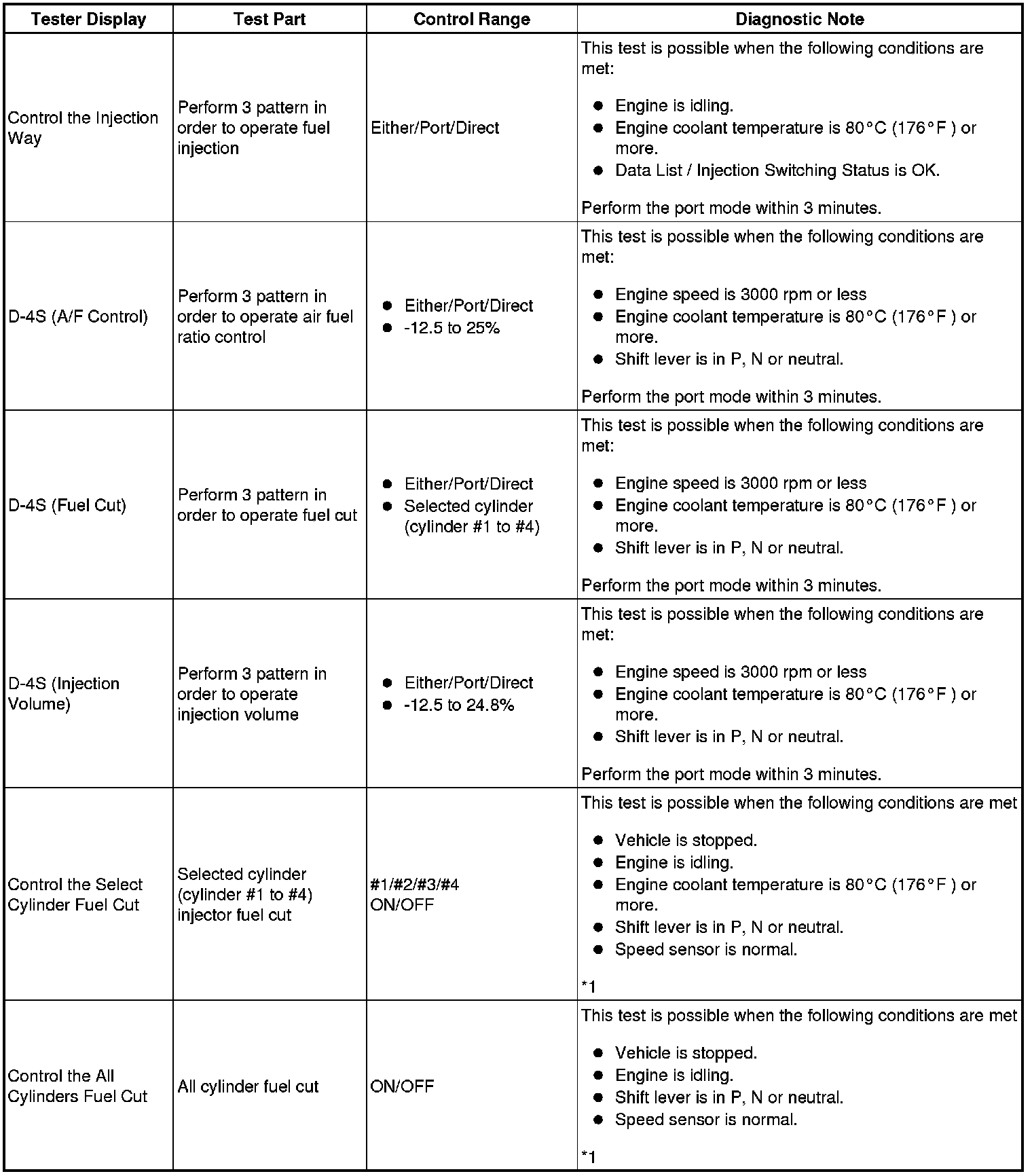

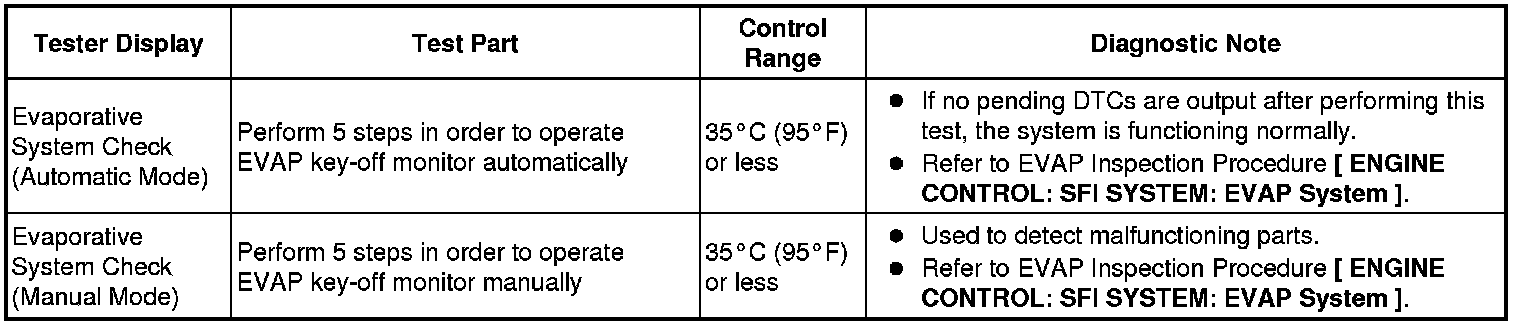

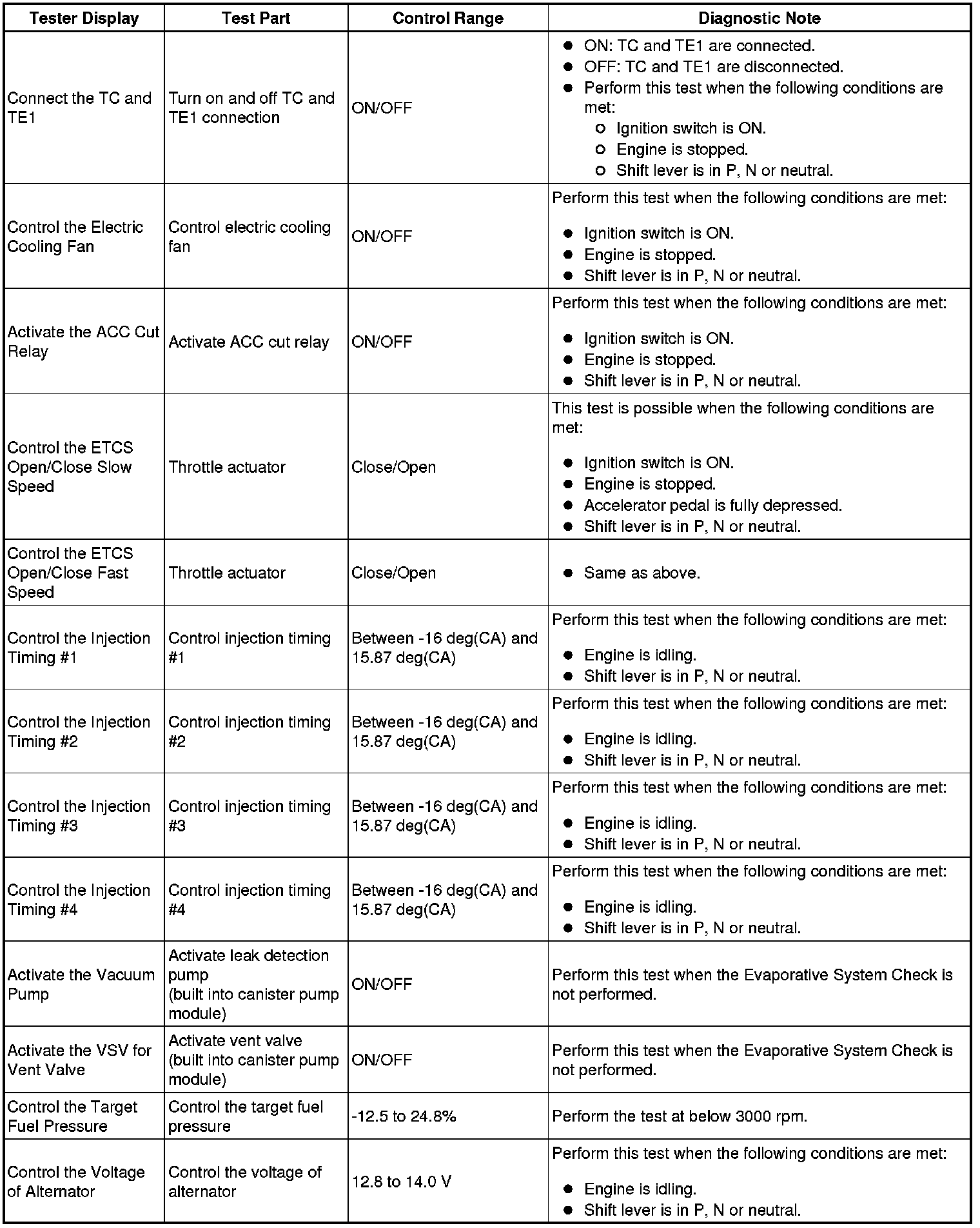

(e) Perform the System Check by referring to the table below.
